激光级平凸(PCX)透镜

? ?

TECHSPEC Laser Grade PCX Lenses

保证激光损伤阈值

10-5 表面质量

λ/10 表面精度

激光级平凸(PCX)透镜通用规格

基底:	Fused Silica
焦距容差 (%):	±1
表面精度:	λ/10

产品介绍

TECHSPEC??激光级平凸透镜专为高能 Nd：YAG 激光应用而设计，包括激光切割，机器加工和焊接等。精密熔融石英基片具有?? ??/ 10 表面精度和 10-5 表面质量，可确保实现低散射和出色的透射波前性能. TECHSPEC??激光级平凸透镜可提供无镀膜或具有各种高激光损伤阈值抗反射 (AR) 镀膜的不同选项。镀膜适用于.常见的 Nd：YAG 激光波长，以确保激光通量。

产品信息

Dia. (mm)	EFL (mm)	BFL (mm)	涂层	产品编码
6.00	12.00	10.63	Uncoated	#87-924
6.00	12.00	10.63	Laser V-Coat (266nm)	#87-928
6.00	12.00	10.63	Laser V-Coat (355nm)	#87-932
6.00	12.00	10.63	Laser V-Coat (532nm)	#87-936
6.00	12.00	10.63	Laser V-Coat (1064nm)	#87-940
6.00	18.00	16.62	Uncoated	#87-925
6.00	18.00	16.62	Laser V-Coat (266nm)	#87-929
6.00	18.00	16.62	Laser V-Coat (355nm)	#87-933
6.00	18.00	16.62	Laser V-Coat (532nm)	#87-937
6.00	18.00	16.62	Laser V-Coat (1064nm)	#87-941
6.00	24.00	22.63	Uncoated	#87-926
6.00	24.00	22.63	Laser V-Coat (266nm)	#87-930
6.00	24.00	22.63	Laser V-Coat (355nm)	#87-934
6.00	24.00	22.63	Laser V-Coat (532nm)	#87-938
6.00	24.00	22.63	Laser V-Coat (1064nm)	#87-942
12.00	18.00	15.23	Uncoated	#67-090
12.00	18.00	15.23	Laser V-Coat (266nm)	#67-939
12.00	18.00	15.23	Laser V-Coat (355nm)	#67-949
12.00	18.00	15.23	Laser V-Coat (532nm)	#67-959
12.00	18.00	15.23	Laser V-Coat (1064nm)	#67-969
12.00	25.00	22.31	Uncoated	#67-091
12.00	25.00	22.31	Laser V-Coat (266nm)	#67-940
12.00	25.00	22.31	Laser V-Coat (355nm)	#67-950
12.00	25.00	22.31	Laser V-Coat (532nm)	#67-960
12.00	25.00	22.31	Laser V-Coat (1064nm)	#67-970
12.00	36.00	34.29	Uncoated	#67-092
12.00	36.00	34.29	Laser V-Coat (266nm)	#67-941
12.00	36.00	34.29	Laser V-Coat (355nm)	#67-951
12.00	36.00	34.29	Laser V-Coat (532nm)	#67-961
12.00	36.00	34.29	Laser V-Coat (1064nm)	#67-971
12.00	50.00	48.01	Uncoated	#67-093
12.00	50.00	48.01	Laser V-Coat (266nm)	#67-942
12.00	50.00	48.01	Laser V-Coat (355nm)	#67-952
12.00	50.00	48.01	Laser V-Coat (532nm)	#67-962
12.00	50.00	48.01	Laser V-Coat (1064nm)	#67-972
12.70	25.00	21.62	Uncoated	#38-634
12.70	25.00	21.62	Laser V-Coat (266nm)	#38-656
12.70	25.00	21.62	Laser V-Coat (355nm)	#38-681
12.70	25.00	21.62	Laser V-Coat (532nm)	#38-707
12.70	25.00	21.62	Laser V-Coat (1064nm)	#38-733
12.70	35.00	32.30	Uncoated	#38-635
12.70	35.00	32.30	Laser V-Coat (266nm)	#38-658
12.70	35.00	32.30	Laser V-Coat (355nm)	#38-684
12.70	35.00	32.30	Laser V-Coat (532nm)	#38-708
12.70	35.00	32.30	Laser V-Coat (1064nm)	#38-734
12.70	50.00	47.30	Uncoated	#38-636
12.70	50.00	47.30	Laser V-Coat (266nm)	#38-660
12.70	50.00	47.30	Laser V-Coat (355nm)	#38-685
12.70	50.00	47.30	Laser V-Coat (532nm)	#38-709
12.70	50.00	47.30	Laser V-Coat (1064nm)	#38-735
12.70	75.00	72.31	Uncoated	#38-637
12.70	75.00	72.31	Laser V-Coat (266nm)	#38-661
12.70	75.00	72.31	Laser V-Coat (355nm)	#38-686
12.70	75.00	72.31	Laser V-Coat (532nm)	#38-711
12.70	75.00	72.31	Laser V-Coat (1064nm)	#38-736
12.70	100.00	97.32	Uncoated	#38-638
12.70	100.00	97.32	Laser V-Coat (266nm)	#38-662
12.70	100.00	97.32	Laser V-Coat (355nm)	#38-687
12.70	100.00	97.32	Laser V-Coat (532nm)	#38-712
12.70	100.00	97.32	Laser V-Coat (1064nm)	#38-737
12.70	150.00	147.33	Uncoated	#38-639
12.70	150.00	147.33	Laser V-Coat (266nm)	#38-665
12.70	150.00	147.33	Laser V-Coat (355nm)	#38-688
12.70	150.00	147.33	Laser V-Coat (532nm)	#38-715
12.70	150.00	147.33	Laser V-Coat (1064nm)	#38-738
12.70	200.00	197.35	Uncoated	#38-640
12.70	200.00	197.35	Laser V-Coat (266nm)	#38-666
12.70	200.00	197.35	Laser V-Coat (355nm)	#38-689
12.70	200.00	197.35	Laser V-Coat (532nm)	#38-716
12.70	200.00	197.35	Laser V-Coat (1064nm)	#38-739
12.70	250.00	247.36	Uncoated	#38-641
12.70	250.00	247.36	Laser V-Coat (266nm)	#38-667
12.70	250.00	247.36	Laser V-Coat (355nm)	#38-690
12.70	250.00	247.36	Laser V-Coat (532nm)	#38-717
12.70	250.00	247.36	Laser V-Coat (1064nm)	#38-740
12.70	300.00	297.38	Uncoated	#38-643
12.70	300.00	297.38	Laser V-Coat (266nm)	#38-668
12.70	300.00	297.38	Laser V-Coat (355nm)	#38-691
12.70	300.00	297.38	Laser V-Coat (532nm)	#38-718
12.70	300.00	297.38	Laser V-Coat (1064nm)	#38-741
12.70	500.00	497.44	Uncoated	#38-644
12.70	500.00	497.44	Laser V-Coat (266nm)	#38-669
12.70	500.00	497.44	Laser V-Coat (355nm)	#38-692
12.70	500.00	497.44	Laser V-Coat (532nm)	#38-719
12.70	500.00	497.44	Laser V-Coat (1064nm)	#38-742
12.70	1000.00	997.59	Uncoated	#38-645
12.70	1000.00	997.59	Laser V-Coat (266nm)	#38-670
12.70	1000.00	997.59	Laser V-Coat (355nm)	#38-693
12.70	1000.00	997.59	Laser V-Coat (532nm)	#38-720
12.70	1000.00	997.59	Laser V-Coat (1064nm)	#38-743
25.00	38.00	33.03	Uncoated	#67-094
25.00	38.00	33.03	Laser V-Coat (266nm)	#67-943
25.00	38.00	33.03	Laser V-Coat (355nm)	#67-953
25.00	38.00	33.03	Laser V-Coat (532nm)	#67-963
25.00	38.00	33.03	Laser V-Coat (1064nm)	#67-973
25.00	50.00	46.00	Uncoated	#67-095
25.00	50.00	46.00	Laser V-Coat (266nm)	#67-944
25.00	50.00	46.00	Laser V-Coat (355nm)	#67-954
25.00	50.00	46.00	Laser V-Coat (532nm)	#67-964
25.00	50.00	46.00	Laser V-Coat (1064nm)	#67-974
25.00	75.00	71.96	Uncoated	#67-096
25.00	75.00	71.96	Laser V-Coat (266nm)	#67-945
25.00	75.00	71.96	Laser V-Coat (355nm)	#67-955
25.00	75.00	71.96	Laser V-Coat (532nm)	#67-965
25.00	75.00	71.96	Laser V-Coat (1064nm)	#67-975
25.00	100.00	97.40	Uncoated	#67-097
25.00	100.00	97.4	Laser V-Coat (266nm)	#67-946
25.00	100.00	97.40	Laser V-Coat (355nm)	#67-956
25.00	100.00	97.40	Laser V-Coat (532nm)	#67-966
25.00	100.00	97.40	Laser V-Coat (1064nm)	#67-976
25.00	150.00	147.82	Uncoated	#67-098
25.00	150.00	147.86	Laser V-Coat (266nm)	#67-947
25.00	150.00	147.82	Laser V-Coat (355nm)	#67-957
25.00	150.00	147.82	Laser V-Coat (532nm)	#67-967
25.00	150.00	147.82	Laser V-Coat (1064nm)	#67-977
25.00	250.00	248.14	Uncoated	#67-099
25.00	250.00	248.14	Laser V-Coat (266nm)	#67-948
25.00	250.00	248.14	Laser V-Coat (355nm)	#67-958
25.00	250.00	248.14	Laser V-Coat (532nm)	#67-968
25.00	250.00	248.14	Laser V-Coat (1064nm)	#67-978
25.40	35.00	28.55	Uncoated	#38-624
25.40	35.00	28.55	Laser V-Coat (266nm)	#38-646
25.40	35.00	28.55	Laser V-Coat (355nm)	#38-671
25.40	35.00	28.55	Laser V-Coat (532nm)	#38-694
25.40	35.00	28.55	Laser V-Coat (1064nm)	#38-721
25.40	50.00	45.71	Uncoated	#38-625
25.40	50.00	45.71	Laser V-Coat (266nm)	#38-647
25.40	50.00	45.71	Laser V-Coat (355nm)	#38-672
25.40	50.00	45.71	Laser V-Coat (532nm)	#38-695
25.40	50.00	45.71	Laser V-Coat (1064nm)	#38-722
25.40	75.00	71.63	Uncoated	#38-626
25.40	75.00	71.63	Laser V-Coat (266nm)	#38-648
25.40	75.00	71.63	Laser V-Coat (355nm)	#38-673
25.40	75.00	71.63	Laser V-Coat (532nm)	#38-699
25.40	75.00	71.63	Laser V-Coat (1064nm)	#38-723
25.40	100.00	97.32	Uncoated	#38-627
25.40	100.00	97.32	Laser V-Coat (266nm)	#38-649
25.40	100.00	97.32	Laser V-Coat (355nm)	#38-674
25.40	100.00	97.32	Laser V-Coat (532nm)	#38-700
25.40	100.00	97.32	Laser V-Coat (1064nm)	#38-724
25.40	150.00	147.33	Uncoated	#38-628
25.40	150.00	147.33	Laser V-Coat (266nm)	#38-650
25.40	150.00	147.33	Laser V-Coat (355nm)	#38-675
25.40	150.00	147.33	Laser V-Coat (532nm)	#38-701
25.40	150.00	147.33	Laser V-Coat (1064nm)	#38-725
25.40	200.00	197.35	Uncoated	#38-629
25.40	200.00	197.35	Laser V-Coat (266nm)	#38-651
25.40	200.00	197.35	Laser V-Coat (355nm)	#38-676
25.40	200.00	197.35	Laser V-Coat (532nm)	#38-702
25.40	200.00	197.35	Laser V-Coat (1064nm)	#38-726
25.40	250.00	247.36	Uncoated	#38-630
25.40	250.00	247.36	Laser V-Coat (266nm)	#38-652
25.40	250.00	247.36	Laser V-Coat (355nm)	#38-677
25.40	250.00	247.36	Laser V-Coat (532nm)	#38-703
25.40	250.00	247.36	Laser V-Coat (1064nm)	#38-727
25.40	300.00	297.38	Uncoated	#38-631
25.40	300.00	297.38	Laser V-Coat (266nm)	#38-653
25.40	300.00	297.38	Laser V-Coat (355nm)	#38-678
25.40	300.00	297.38	Laser V-Coat (532nm)	#38-704
25.40	300.00	297.38	Laser V-Coat (1064nm)	#38-729
25.40	500.00	497.44	Uncoated	#38-632
25.40	500.00	497.44	Laser V-Coat (266nm)	#38-654
25.40	500.00	497.44	Laser V-Coat (355nm)	#38-679
25.40	500.00	497.44	Laser V-Coat (532nm)	#38-705
25.40	500.00	497.44	Laser V-Coat (1064nm)	#38-731
25.40	1000.00	997.59	Uncoated	#38-633
25.40	1000.00	997.59	Laser V-Coat (266nm)	#38-655
25.40	1000.00	997.59	Laser V-Coat (355nm)	#38-680
25.40	1000.00	997.59	Laser V-Coat (532nm)	#38-706
25.40	1000.00	997.59	Laser V-Coat (1064nm)	#38-732

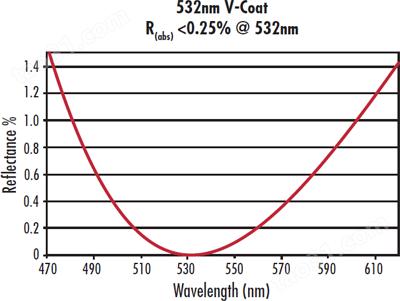

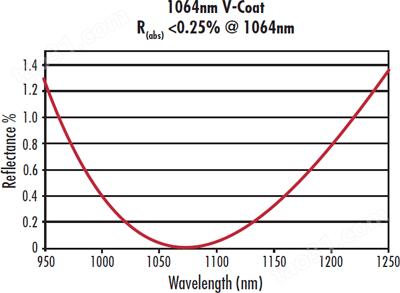

技术数据

? ??? ??? ??? ?
