熔融石英楔形棱镜
TECHSPEC Fused Silica Wedge Prisms
将激光束路径偏移 0.5° - 5.0°
非常适用于 250 至 1064nm 的 UV 至 NIR 光束偏转应用
保证激光损伤阈值，适用于 Nd:YAG 版本
熔融石英楔形棱镜通用规格角度容差（弧秒）: |
15 |
倒角: |
Protective bevel as needed |
热膨胀系数 CTE (10-6/°C): |
0.52 |
图像定位: |
Beam Deviation |
基底: |
Fused Silica (Corning 7980) |
表面平整度: |
λ/10 |
表面质量: |
20-10 |
TECHSPEC? 熔融石英楔形棱镜专为需要 UV-VIS 或一至四层 Nd:YAG 谐波增透膜的一系列激光束定向应用而设计. 它们已经过优化，使用严格控制的规格以确保系统具有.高的性能水平，包括λ/10 表面平面度、20-10 表面质量以及 15 弧秒楔形公差。Nd:YAG 镀膜版本具有高透射率并保证特定于设计波长的激光损伤阈值。TECHSPEC? 熔融石英楔形棱镜采用楔形设计，使激光光束路径偏离 0.5° – 5°. 通过使用两个楔形棱镜来创建一个里斯莱棱镜对，自定义光束转向可达到楔形偏差的两倍。低热膨胀系数可确保在高功率激光应用中实现的光束转向.
注意:
N-BK7 版本中也提供TECHSPEC?楔形棱镜.

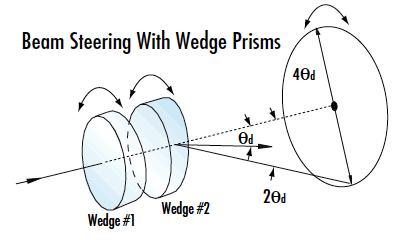

两个楔形棱镜可作为变形棱镜对在光束整形应用中使用（用来校正二极管输出的椭圆形光束）。或者也可用来将光束在全角4T范围内以各种角度偏折，T是指单个棱镜偏折的光。这种光束偏转是通过分别旋转两个楔形棱镜来实现的，通常用于在成像应用中光束扫描不同位置。
产品信息
| 涂层 | Dia.(mm) |
功率
（照准仪）
|

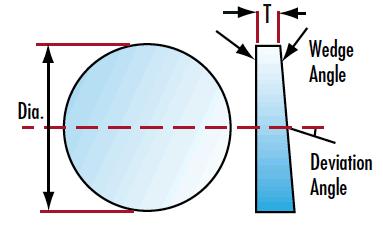

Ray Deviation
@355nm(°)
|
楔角 | 产品编码 |
| Uncoated | 12.50 | 0.87 | 0.50 | 1° 3'0" | #35-842 |
| UV-VIS (250-700nm) | 12.50 | 0.87 | 0.50 | 1° 3'0" | #35-849 |
| Laser V-Coat (355nm) | 12.50 | 0.87 | 0.50 | 1° 3'0" | #39-073 |
| Laser V-Coat (532nm) | 12.50 | 0.87 | 0.50 | 1° 3'0" | #39-089 |
| Laser V-Coat (1064nm) | 12.50 | 0.87 | 0.50 | 1° 3'0" | #39-123 |
| Uncoated | 12.50 | 1.74 | 1.00 | 2° 5'56" | #35-843 |
| UV-VIS (250-700nm) | 12.50 | 1.74 | 1.00 | 2° 5'56" | #35-850 |
| Laser V-Coat (355nm) | 12.50 | 1.74 | 1.00 | 2° 5'56" | #39-074 |
| Laser V-Coat (532nm) | 12.50 | 1.74 | 1.00 | 2° 5'56" | #39-090 |
| Laser V-Coat (1064nm) | 12.50 | 1.74 | 1.00 | 2° 5'56" | #39-124 |
| Uncoated | 12.50 | 2.62 | 1.50 | 3° 8'42" | #35-844 |
| UV-VIS (250-700nm) | 12.50 | 2.62 | 1.50 | 3° 8'42" | #35-851 |
| Laser V-Coat (355nm) | 12.50 | 2.62 | 1.50 | 3° 8'42" | #39-075 |
| Laser V-Coat (532nm) | 12.50 | 2.62 | 1.50 | 3° 8'42" | #39-091 |
| Laser V-Coat (1064nm) | 12.50 | 2.62 | 1.50 | 3° 8'42" | #39-125 |
| Uncoated | 12.50 | 3.49 | 2.00 | 4° 11'14" | #35-845 |
| UV-VIS (250-700nm) | 12.50 | 3.49 | 2.00 | 4° 11'14" | #35-852 |
| Laser V-Coat (355nm) | 12.50 | 3.49 | 2.00 | 4° 11'14" | #39-076 |
| Laser V-Coat (532nm) | 12.50 | 3.49 | 2.00 | 4° 11'14" | #39-092 |
| Laser V-Coat (1064nm) | 12.50 | 3.49 | 2.00 | 4° 11'14" | #39-126 |
| Uncoated | 12.50 | 4.37 | 2.50 | 5° 13'29" | #35-846 |
| UV-VIS (250-700nm) | 12.50 | 4.37 | 2.50 | 5° 13'29" | #35-853 |
| Laser V-Coat (355nm) | 12.50 | 4.37 | 2.50 | 5° 13'29" | #39-077 |
| Laser V-Coat (532nm) | 12.50 | 4.37 | 2.50 | 5° 13'29" | #39-093 |
| Laser V-Coat (1064nm) | 12.50 | 4.37 | 2.50 | 5° 13'29" | #39-127 |
| Uncoated | 12.50 | 6.99 | 4.00 | 8° 17'39" | #35-847 |
| UV-VIS (250-700nm) | 12.50 | 6.99 | 4.00 | 8° 17'39" | #35-854 |
| Laser V-Coat (355nm) | 12.50 | 6.99 | 4.00 | 8° 17'39" | #39-078 |
| Laser V-Coat (532nm) | 12.50 | 6.99 | 4.00 | 8° 17'39" | #39-094 |
| Laser V-Coat (1064nm) | 12.50 | 6.99 | 4.00 | 8° 17'39" | #39-128 |
| Uncoated | 12.50 | 8.75 | 5.00 | 10° 17'38" | #35-848 |
| UV-VIS (250-700nm) | 12.50 | 8.75 | 5.00 | 10° 17'38" | #35-855 |
| Laser V-Coat (355nm) | 12.50 | 8.75 | 5.00 | 10° 17'38" | #39-079 |
| Laser V-Coat (532nm) | 12.50 | 8.75 | 5.00 | 10° 17'38" | #39-095 |
| Laser V-Coat (1064nm) | 12.50 | 8.75 | 5.00 | 10° 17'38" | #39-129 |
| Uncoated | 25.00 | 0.87 | 0.50 | 1° 3'0" | #84-859 |
| UV-VIS (250-700nm) | 25.00 | 0.87 | 0.50 | 1° 3'0" | #89-636 |
| Laser V-Coat (355nm) | 25.00 | 0.87 | 0.50 | 1° 3'0" | #39-080 |
| Laser V-Coat (532nm) | 25.00 | 0.87 | 0.50 | 1° 3'0" | #39-116 |
| Laser V-Coat (1064nm) | 25.00 | 0.87 | 0.50 | 1° 3'0" | #39-130 |
| Uncoated | 25.00 | 1.74 | 1.00 | 2° 5'56" | #84-860 |
| UV-VIS (250-700nm) | 25.00 | 1.74 | 1.00 | 2° 5'56" | #89-637 |
| Laser V-Coat (355nm) | 25.00 | 1.74 | 1.00 | 2° 5'56" | #39-081 |
| Laser V-Coat (532nm) | 25.00 | 1.74 | 1.00 | 2° 5'56" | #39-117 |
| Laser V-Coat (1064nm) | 25.00 | 1.74 | 1.00 | 2° 5'56" | #39-131 |
| Uncoated | 25.00 | 2.62 | 1.50 | 3° 8'42" | #84-861 |
| UV-VIS (250-700nm) | 25.00 | 2.62 | 1.50 | 3° 8'42" | #89-638 |
| Laser V-Coat (355nm) | 25.00 | 2.62 | 1.50 | 3° 8'42" | #39-082 |
| Laser V-Coat (532nm) | 25.00 | 2.62 | 1.50 | 3° 8'42" | #39-118 |
| Laser V-Coat (1064nm) | 25.00 | 2.62 | 1.50 | 3° 8'42" | #39-132 |
| Uncoated | 25.00 | 3.49 | 2.00 | 4° 11'14" | #84-862 |
| UV-VIS (250-700nm) | 25.00 | 3.49 | 2.00 | 4° 11'14" | #89-639 |
| Laser V-Coat (355nm) | 25.00 | 3.49 | 2.00 | 4° 11'14" | #39-083 |
| Laser V-Coat (532nm) | 25.00 | 3.49 | 2.00 | 4° 11'14" | #39-119 |
| Laser V-Coat (1064nm) | 25.00 | 3.49 | 2.00 | 4° 11'14" | #39-133 |
| Uncoated | 25.00 | 4.37 | 2.50 | 5° 13'29" | #84-863 |
| UV-VIS (250-700nm) | 25.00 | 4.37 | 2.50 | 5° 13'29" | #89-640 |
| Laser V-Coat (355nm) | 25.00 | 4.37 | 2.50 | 5° 13'29" | #39-084 |
| Laser V-Coat (532nm) | 25.00 | 4.37 | 2.50 | 5° 13'29" | #39-120 |
| Laser V-Coat (1064nm) | 25.00 | 4.37 | 2.50 | 5° 13'29" | #39-134 |
| Uncoated | 25.00 | 6.99 | 4.00 | 8° 17'39" | #84-864 |
| UV-VIS (250-700nm) | 25.00 | 6.99 | 4.00 | 8° 17'39" | #89-641 |
| Laser V-Coat (355nm) | 25.00 | 6.99 | 4.00 | 8° 17'39" | #39-086 |
| Laser V-Coat (532nm) | 25.00 | 6.99 | 4.00 | 8° 17'39" | #39-121 |
| Laser V-Coat (1064nm) | 25.00 | 6.99 | 4.00 | 8° 17'39" | #39-135 |
| Uncoated | 25.00 | 8.75 | 5.00 | 10° 17'38" | #84-865 |
| UV-VIS (250-700nm) | 25.00 | 8.75 | 5.00 | 10° 17'38" | #89-642 |
| Laser V-Coat (355nm) | 25.00 | 8.75 | 5.00 | 10° 17'38" | #39-088 |
| Laser V-Coat (532nm) | 25.00 | 8.75 | 5.00 | 10° 17'38" | #39-122 |
| Laser V-Coat (1064nm) | 25.00 | 8.75 | 5.00 | 10° 17'38" | #39-136 |
