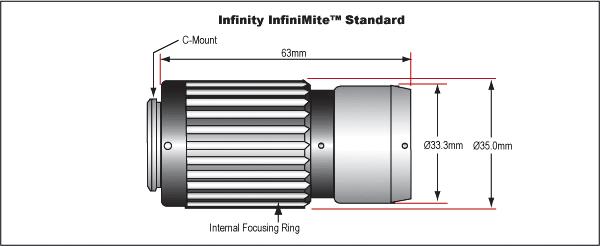

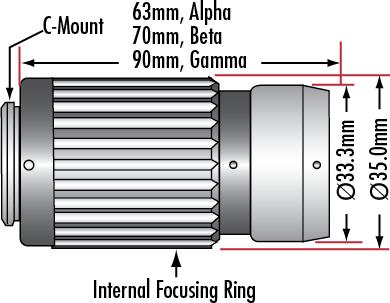

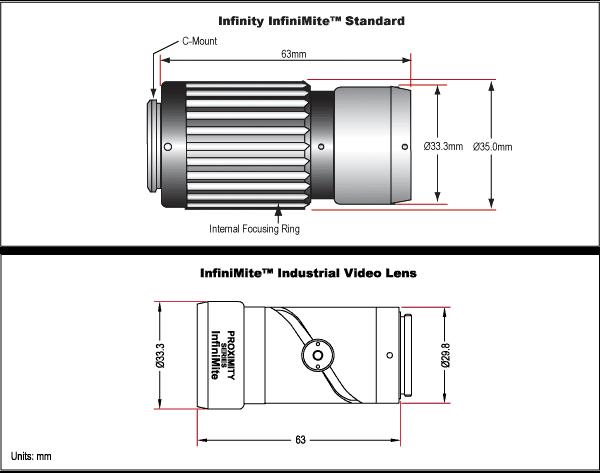

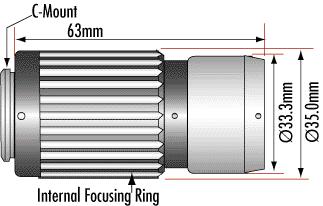

InfiniMite? 视频镜头
?可选3种放大倍率
?工作距离从25mm到无穷
?可选用LDL增倍镜在原有倍率的基础上再增大2X
InfiniMite? 视频镜头有三款不同的倍率供您选择，带锁止功能，用以锁定倍率和调焦到固定位置。可对特定的视场成像，体积小，可安装在各种电子成像设备中。调焦时系统总长保持不变。
在使用1/3"SENSOR时，InfiniMite?镜头需在特定的工作距离和视场下工作。但是本镜头也可在2/3"SENSOR下使用。Alpha镜头使用在巨副显示场合，倍率在0.75X-0.08X之间。Beta和Gamma镜头用在Alpha镜头的后面，需要进行WD转换。比如，使用?"SENSOR,在相同的视场(0.5")和倍率的条件下，Alpha镜头的工作距离为40mm，而Beta镜头的工作距离为60mm,Gamma镜头的工作距离为122mm,6种镜头可广泛的应用在各种系统中。
技术数据
Technical Information

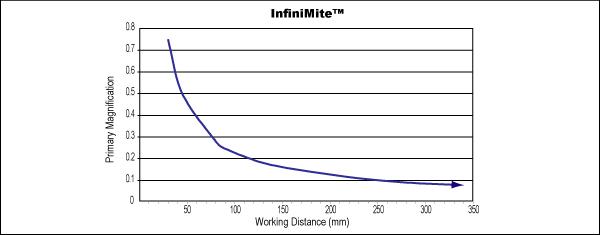

InfiniMite Alpha Specifications |
|||||||
Working Distance |
25mm |
40mm |
60mm |
80mm |
170mm |
230mm |
295mm |
Primary Magnification |
0.75X |
0.50X |
0.33X |
0.25X |
0.13X |
0.10X |
0.08X |
Field of View, ?" Sensor Horiz. |
8.5mm |
12.8mm |
19.4mm |
25.6mm |
51.2mm |
64.0mm |
80.0mm |
Field of View, 1/3" Sensor Horiz. |
6.4mm |
9.6mm |
14.5mm |
19.2mm |
38.4mm |
48.0mm |
60.0mm |
InfiniMite Beta Specifications |
|||||||
Working Distance |
55mm |
60mm |
90mm |
120mm |
240mm |
317mm |
400mm |
Primary Magnification |
0.66X |
0.50X |
0.33X |
0.25X |
0.13X |
0.10X |
0.08X |
Field of View, ?" Sensor Horiz. |
9.7mm |
12.8mm |
19.4mm |
25.6mm |
49.2mm |
64.0mm |
80.0mm |
Field of View, 1/3" Sensor Horiz. |
7.3mm |
9.6mm |
14.5mm |
19.2mm |
36.9mm |
48.0mm |
60.0mm |
InfiniMite Gamma Specifications |
||||||
Working Distance |
122mm |
165mm |
213mm |
396mm |
515mm |
640mm |
Primary Magnification |
0.50X |
0.33X |
0.25X |
0.13X |
0.10X |
0.08X |
Field of View, ?" Sensor Horiz. |
12.8mm |
19.4mm |
25.6mm |
51.2mm |
64.0mm |
80.0mm |
Field of View, 1/3" Sensor Horiz. |
9.6mm |
14.5mm |
19.2mm |
38.4mm |
48.0mm |
60.0mm |
订购信息
标题 |
产品号 |
|---|---|
Alpha - Standard, Infinimite Video Lens |
#55-717 |
Beta - Standard, Infinimite Video Lens |
#57-722 |
Gamma - Standard, Infinimite Video Lens |
#57-724 |
附件
标题 |
产品号 |
|---|---|
Infinimite 28mm Ring Light Guide Adapter Tube |
#54-587 |
Infinimite 30mm Ring Light Guide Adapter Tube |
#54-588 |
Infinimite Mounting Clamp |
#54-591 |
