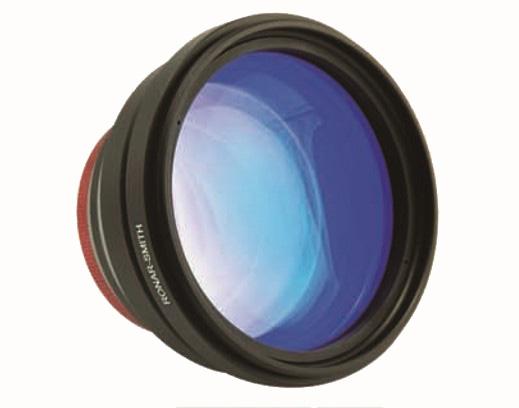

?F-THETA平场扫描透镜-2
?F-THETA平场扫描透镜-2
型号：平场扫描透镜
基本参数：
1.F-THETA镜常用在激光打标、焊接、雕刻等应用中，常与振镜搭配使用；
2.常用的场镜镜片有普通光学玻璃、全石英和两种镜片混合，根据输入激光的功率、脉宽决定。全石英场镜常用于高功率激光和皮秒激光应用；
3.全幅面内光斑均匀，畸变<1%小；
石英扫描透镜系列
熔石英透镜，用于高功率短脉冲激光材料加工，熔石英透镜热焦点偏移最小，用于高功率激光时不易损伤，透镜表面的膜层会降低反射率和吸收率，在实际应用中，范围更广。
532nm系列

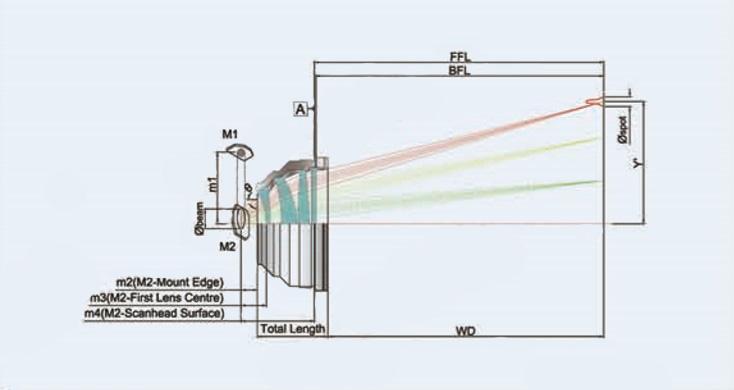

型号 |
有效焦距 (mm) |
扫描幅面 (mm) |
入射光瞳 (mm) |
扫描角(*) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M2螺纹底端 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
SL-532-65-120Q |
120 |
65*65 |
12 |
±20 |
M85*1 |
185.36 |
155.6 |
55.36 |
10-15 |
1J990300042 |
SL-532-90-160Q |
160 |
90*90 |
14 |
±25 |
M85*1 |
258.11 |
209.61 |
47.63 |
12-12 |
1J990300042 |
SL-532-100-160Q |
160 |
100*100 |
10 |
±22 |
M85*1 |
237.51 |
198.21 |
32.65 |
15-21 |
1J990300050 |
SL-532-110-170Q |
170 |
110*110 |
10 |
±25 |
M85*1 |
246.2 |
216.7 |
55 |
20-25 |
1J990300043 |
SL-532-135-200H |
200 |
135*135 |
20 |
±25 |
M85*1 |
316.64 |
230.85 |
34.32 |
10-12 |
1J990300029 |
SL-532-155-250-V1 |
250 |
155*155 |
20 |
±25 |
M85*1 |
334.64 |
286.46 |
40.01+K32:M33 |
12-17 |
1J990300057 |
SL-532-170-254Q |
254 |
170*170 |
10 |
±22 |
M85*1 |
334.41 |
302.61 |
32.65 |
23-38 |
1J990300051 |
SL-532-165-260Q |
260 |
155*155 |
14 |
±25 |
M95*1 |
410.64 |
338.19 |
33.55 |
18-26 |
1J990300048 |
1064nm系列
型号 |
有效焦距 (mm) |
扫描幅面 (mm) |
入射光瞳 (mm) |
扫描角(*) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M2螺纹底端 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
SL-1064-50-100Q |
100 |
50*50 |
10 |
±21 |
M55*1 |
167.41 |
124.9 |
18.5 |
34.3-40.4 |
1J990200102 |
SL-1064-50-210Q-D10 |
210 |
50*50 |
10 |
±9.7 |
M39*1 |
291.25 |
261.25 |
27.01 |
40.52-40.61 |
1J990200269 |
SL-1064-66-125Q-D14 |
125 |
66*66 |
14 |
±20.83 |
M58*1 |
155.9 |
58.4 |
27.9 |
17-20 |
1J990200236 |
SL-1064-70-100Q |
100 |
70*70 |
10 |
±25 |
M85*1 |
196.88 |
123.42 |
36.85 |
20-35 |
1J990200218 |
SL-1064-94-163Q--V1 |
163 |
94*94 |
20 |
±25 |
M85*1 |
305.1 |
204.7 |
19.3 |
20-26.4 |
1J990200164 |
SL-1064-100-160Q-D14 |
160 |
100*100 |
14 |
±26.6 |
法兰 |
299.33 |
207.83 |
12.2 |
21.8-28.1 |
1J990200271 |
SL-1064-112-160Q-2 |
160 |
112*112 |
10 |
±20 |
MB5*1 |
201.4 |
191 |
12.9 |
32-38 |
1J990200195 |
SL-1064-140-350Q-D7 |
350 |
140*140 |
7 |
±25 |
M39*1 |
381.72 |
357.72 |
18.31 |
90-108 |
1J990200217 |
SL-1064-142-277Q |
277 |
142*142 |
15 |
±21 |
M85*1 |
389.6 |
347.5 |
41.4 |
32-33 |
1J990200211 |
SL-1064-150-305-D10 |
305 |
150*150 |
10 |
±20 |
M79*1 |
446.51 |
384.31 |
27.81 |
58.44-59.61 |
1J990200270 |
SL-1064-165-254-D20 |
254 |
165*165 |
20 |
±26.3 |
M85*1 |
358.9 |
294.5 |
31.3 |
26-32 |
1J990200329 |
SL-1064-170-255Q-D20 |
255 |
170*170 |
20 |
±28 |
M85*1 |
413.44 |
319.44 |
28.32 |
20-28 |
1J990200096 |
SL-1064-175-2540 |
254 |
175*175 |
10 |
±25 |
M85*1 |
322.55 |
304.18 |
55.31 |
35-35 |
1J990200113 |
SL-1064-180-254-D10 |
254 |
180*180 |
10 |
±25 |
M85*1 |
345.2 |
295 |
45.85 |
25-32 |
1J990200039 |
SL-1064-180-254-D14 |
254 |
180*180 |
14 |
±28 |
M85*1 |
322.05 |
253.05 |
22.41 |
36-40 |
1J990200245 |
SL-1064-200-500Q-D7 |
500 |
200*200 |
7 |
±25 |
M39*1 |
534.27 |
514.27 |
20.07 |
130-146 |
1J990200216 |
SL-1064-220-350-D10 |
350 |
220*220 |
10 |
±25 |
M85*1 |
453.47 |
407.97 |
32.5 |
52-60 |
1J990200100 |
SL-1064-205-330Q-D10 |
330 |
205*205 |
10 |
±25.4 |
M79*1 |
466 |
362 |
26 |
62-67 |
1J990200268 |
SL-1064-215-340Q |
340 |
215*215 |
20 |
±25 |
M85*1 |
373.28 |
203.82 |
30.14 |
30-46 |
1J990200140 |
SL-1064-250-735Q-D7 |
735 |
250*250 |
7 |
±25 |
M39*1 |
774.15 |
752.16 |
20 |
190-200 |
1J990200215 |
SL-1064-280-420Q-V1 |
420 |
280*280 |
14 |
±27 |
M85*1 |
559.6 |
510.6 |
41 |
58-78 |
1J990200238 |
SL-1064-320-450Q |
450 |
320*320 |
14 |
±25 |
M85*1 |
549.36 |
515.93 |
51 |
45-60 |
1J990200084 |
SL-1064-340-500Q-D20 |
500 |
340*340 |
20 |
±27.5 |
M85*1 |
667.33 |
598.47 |
37 |
85-97 |
1J990200267 |
SL-1064-425-875Q-D20 |
875 |
425*425 |
20 |
±25 |
M85*1 |
1032.2 |
987.92 |
28.32 |
80-130 |
1J990200184 |
SL-1064-450-670QD15 |
670 |
450*450 |
15 |
±25 |
M85*1 |
784.46 |
753.46 |
35.6 |
80-90 |
1J990200161 |
其他系列
型号 |
有效焦距 (mm) |
扫描幅面 (mm) |
入射光瞳 (mm) |
扫描角(*) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M2螺纹底端 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
SL-405-110-175 |
175 |
110*110 |
6 |
±26 |
M85*1 |
224.75 |
209.44 |
29.69 |
16-20 |
1J990200146 |
?
光学玻璃材料产品系列
光学玻璃材料应用于各种波段，532nm到1550nm，同样适用于大部分的工业激光应用。
1064nm系列
型号 |
有效焦距 (mm) |
扫描幅面 (mm) |
入射光瞳 (mm) |
扫描角(*) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M2螺纹底端 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
SL-1064-112-163A |
163 |
112*112 |
14 |
±25 |
M85*1 |
189.1 |
182.1 |
10.3 |
23-55 |
1J990200055 |
SL-1064-112-163G |
163 |
112*112 |
10 |
±25 |
M85*1 |
192.5 |
183.5 |
11.23 |
32-44 |
1J990200018 |
SL-1064-110-170 |
170 |
110*110 |
30 |
±25 |
M102*1 |
243.2 |
194.7 |
32.51 |
25-30 |
1J990200177 |
SL-1064-110-170D30 |
170 |
110*110 |
30 |
±25 |
M102*1 |
242.3 |
192.9 |
36.35 |
12-16 |
1J990200193 |
SL-1064-111-254 |
254 |
111*111 |
8 |
±25 |
M39*1 |
294.03 |
277.13 |
20.3 |
45-45 |
1J990200150 |
SL-1064-120-170(D14) |
170 |
120*120 |
14 |
±31.4 |
M85*1 |
242.5 |
193.7 |
27.36 |
23-28 |
1J990200054 |
SL-1064-135-200 |
200 |
135*135 |
14 |
±25 |
M85*1 |
318.43 |
237.15 |
34.32 |
28-35 |
1J990200077 |
SL-1064-130-210A |
210 |
130*130 |
30 |
±25 |
M112*1 |
302.68 |
226.1 |
24.81 |
20-24 |
1J990200108 |
SL-1064-130-210-D30-BC |
210 |
130*130 |
30 |
±20 |
M102*1 |
338.13 |
255.81 |
48 |
50-54 |
1J990200129 |
SL-1064-140-210 |
210 |
140*140 |
14 |
±25 |
M85*1 |
268.4 |
238.4 |
30.2 |
30-62 |
1J990200021 |
SL-1064-254-8F |
254 |
150*150 |
8 |
±25 |
M39*1 |
300.2 |
279.3 |
13.6 |
40-40 |
1J990200098 |
SL-1064-152-192 |
192 |
152*152 |
15 |
±32 |
3.875-32Thd |
273.57 |
221.77 |
13.61 |
25-27 |
1J990200086 |
SLF-1064-254-8 |
254 |
155*155 |
8 |
±25 |
M39*1 |
330.55 |
293.55 |
13.53 |
106-110 |
1J990200029 |
SL-1064-160-210G |
210 |
160*160 |
10 |
±30.9 |
M79*1 |
290.6 |
246.3 |
27 |
40.6-43.9 |
1J990200043 |
SL-1064-169-255-D20 |
255 |
169*169 |
20 |
±25.3 |
M85*1 |
336 |
295.16 |
38.8 |
25.3-27.1 |
1J990200331 |
SL-1064-174-254G |
254 |
174*174 |
10 |
±27.7 |
M85*1 |
317 |
298 |
53.82 |
49-51 |
1J990200034 |
SL-1064-175-254 |
254 |
175*175 |
14 |
±28 |
M85*1 |
330.66 |
288.95 |
36.75 |
35-48 |
1J990200031 |
SL-1064-175-450 |
450 |
175*175 |
8 |
±25 |
M79*1 |
320.44 |
250.44 |
22.41 |
110-120 |
1J990200133 |
SL-1064-180-260 |
260 |
180*180 |
10 |
±25 |
M85*1 |
339.15 |
300.15 |
34.11 |
44-50 |
1J990200022 |
SL-1064-266-295 |
295 |
198*198 |
14 |
±26.5 |
M85*1 |
357.3 |
326.8 |
27.22 |
68-112 |
1J990200042 |
SL-1064-200-300-D10 |
300 |
200*200 |
10 |
±26.3 |
M85*1 |
341.76 |
325.21 |
41 |
58-62 |
1J990200264 |
SL-1064-200-310-25 |
310 |
200*200 |
25 |
±26 |
M85*1 |
420.44 |
352.34 |
25.5 |
25-24 |
1J990200051 |
SL-1064-205-330 |
330 |
205*205 |
14 |
±25 |
M85*1 |
423 |
385 |
41.68 |
40-60 |
1J990200023 |
SL-1064-210-330 |
330 |
210*210 |
14 |
±25 |
M85*1 |
399.96 |
371.46 |
41.9 |
42-55 |
1J990200153 |
SL-1064-305-338C |
340 |
215*215 |
20 |
±25 |
M85*1 |
373.28 |
203.82 |
30.14 |
30-42 |
1J990200010 |
SL-1064-220-330G |
330 |
220*220 |
12 |
±26.8 |
M85*1 |
402.67 |
383.41 |
55 |
57-64 |
1J990200079 |
SL-1064-255-360 |
360 |
255*255 |
12 |
±25 |
M85*1 |
405.82 |
391.82 |
40 |
80-90 |
1J990200171 |
SL-1064-300-420 |
420 |
300*300 |
14 |
±29 |
M85*1 |
534.4 |
492.04 |
42.69 |
58-83 |
1J990200024 |
SL-1064-300-420 |
420 |
300*300 |
14 |
±25 |
M85*1 |
477.3 |
463.2 |
40 |
54-74 |
1J990200152 |
SL-1064-300-420D30 |
420 |
300*300 |
30 |
±25 |
M149*1 |
555.13 |
472.13 |
72.37 |
30-30 |
1J990200142 |
SL-1064-305-420-D14 |
420 |
305*305 |
14 |
±29.4 |
M95*1 |
542.5 |
482.5 |
33.55 |
58-63 |
1J990200253 |
SL-1064-320-420-D30 |
420 |
320*320 |
30 |
±30 |
M150*1 |
534.17 |
391.8 |
60 |
28-38 |
1J990200080 |
SL-1064-330-580 |
580 |
330*330 |
10 |
±23 |
MB5*1 |
734，93 |
709.53 |
31.71 |
83.3-83.8 |
1J990200011 |
SL-1064-400-525 |
525 |
400*400 |
10 |
±25 |
M79*1 |
634.32 |
597.28 |
27 |
100-120 |
1J990200046 |
SL-1064-500-815 |
815 |
500*500 |
24 |
M102*1 |
1000.84 |
970.22 |
55.62 |
45-55 |
1J990200025 |
SL-1064-500-815 |
SL-1064-650-815 |
815 |
650*650 |
30 |
M143*1 |
957.29 |
886.29 |
66.22 |
40-48 |
1J990200139 |
SL-1064-650-815 |
SL-1064-900-1300 |
1300 |
900*900 |
30 |
M128*1 |
1391.51 |
1342.51 |
62.01 |
86-95 |
1J990200144 |
SL-1064-900-1300 |
532nm系列
型号 |
有效焦距 (mm) |
扫描幅面 (mm) |
入射光瞳 (mm) |
扫描角(*) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M2螺纹底端 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
SL-532-70-100 |
100 |
70*70 |
10 |
±28 |
M85*1 |
107.98 |
98.98 |
50.54 |
17-28 |
1J990300033 |
SL-532-70-100N |
100 |
70*70 |
10 |
±25 |
M85*1 |
112.5 |
106.5 |
52.82 |
9-11 |
1J990300017 |
SL-532-90-120A |
120 |
90*90 |
8 |
±25 |
M85*1 |
142.65 |
132.65 |
38.91 |
8-13.6 |
1J990300009 |
SL-532-90-120B |
120 |
90*90 |
8 |
±25 |
M85*1 |
142.65 |
132.65 |
38.91 |
8-13.6 |
1J990300033 |
SL-532-90-120N |
120 |
90*90 |
10 |
±25 |
M85*1 |
149.98 |
134.98 |
36.3 |
10-10 |
1J990300017 |
SL-532-115-165 |
165 |
115*115 |
10 |
±20 |
M85*1/M55* |
147.51 |
183.5 |
48.82 |
17-20 |
1J990300009 |
SL-532-115-165N |
165 |
115*115 |
10 |
±25 |
M85*1 |
213.3 |
190.22 |
40.5 |
27.2-29.2 |
1J990300033 |
SL-532-115-170 |
170 |
115*115 |
14 |
±25 |
M85*1 |
244.4 |
195.4 |
40.5 |
20-23 |
1J990300017 |
SL-532-150-254 |
254 |
150*150 |
10 |
±25 |
M85*1 |
299 |
280 |
37 |
20-22.5 |
1J990300009 |
SL-532-150-254B |
254 |
150*150 |
10 |
±24 |
M85*1 |
310.98 |
293.98 |
41.5 |
19-20 |
1J990300033 |
SL-532-165-255-D20 |
255 |
165*165 |
20 |
±28 |
M85*1 |
347 |
293.3 |
39 |
12.3-24.6 |
1J990300017 |
SL-532-180-254 |
254 |
180*180 |
10 |
±10.6 |
M85*1 |
330.4 |
303.3 |
33.95 |
23-31 |
1J990300009 |
SL-532-195-351-D10 |
351 |
195*195 |
10 |
±22.5 |
M85*1 |
431.52 |
390.52 |
17 |
31.2-33.8 |
1J990300033 |
SL-532-225-410 |
410 |
225*225 |
14 |
±22 |
M85*1 |
468.04 |
450.54 |
46.5 |
26.6-29.8 |
1J990300017 |
SL-532-297-420-D15 |
420 |
297*297 |
15 |
±28.5 |
M85*1 |
493.3 |
477.75 |
40.5 |
25-36 |
1J990300009 |
SL-532-335-520 |
520 |
335*335 |
16 |
±25.7 |
M102/M85*1 |
638.6 |
599.2 |
47.06 |
32-35 |
1J990300033 |
SL-532-500-750 |
750 |
510*510 |
16 |
±27.7 |
M85*1 |
996.2 |
911.2 |
34 |
36.9-38 |
1J990300017 |
?
1064nm系列
型号 |
有效焦距 (mm) |
扫描幅面 (mm) |
入射光瞳 (mm) |
扫描角(*) |
螺纹接口 |
法兰距(mm) |
工作距(mm) |
M2螺纹底端 |
聚焦光斑直径(um) (中心/边缘) |
产品编码 |
SLF-1064-63-8 |
63 |
33*33 |
8 |
±21.6 |
M39*1 |
84.78 |
69.02 |
17.95 |
6.95-12 |
1J990200027 |
SL-1064-35-73D5 |
73 |
35*35 |
5 |
±22.5 |
M35*1 |
89.86 |
86.86 |
35 |
200-400 |
1J990200197 |
SL-1064-40-80-D25 |
80 |
40*40 |
25 |
±21 |
M85*1 |
142.87 |
78.82 |
33 |
12-30 |
1J990200224 |
SL-1064-45-80 |
80 |
45*45 |
10 |
±23 |
M55*1 |
105.55 |
91.35 |
24.05 |
11.3-12.4 |
1J990200001 |
SL-1064-50-100 |
100 |
50*50 |
10 |
±20 |
M55*1 |
140.44 |
110.44 |
18 |
10-12 |
1J990200065 |
SL-1064-50-210-D10 |
210 |
50*50 |
10 |
±10 |
M79*1 |
278.46 |
246.38 |
26 |
38-40 |
1J990200169 |
SL-1064-50-160 |
160 |
50*50 |
8 |
±9 |
M39*1 |
198.1 |
183.3 |
11.22 |
40-45 |
1J990200012 |
SL-1064-50-160-D12 |
160 |
50*50 |
12 |
±25 |
M39*1 |
197.2 |
175.2 |
25.55 |
28-30 |
1J990200178 |
SL-1064-50-100-D30 |
100 |
50*50 |
30 |
±25 |
M112*1 |
217.53 |
115.53 |
47 |
7-12 |
1J990200087 |
SL-1064-51-100-D20 |
100 |
51*51 |
20 |
±20.8 |
M85*1 |
167.8 |
115.8 |
27.2 |
17-34 |
1J990200230 |
SLF-1064-80-8 |
80 |
52*52 |
8 |
±27 |
M39*1 |
128.35 |
94.04 |
14.24 |
9.84-10.18 |
1J990200085 |
SLF-1064-100-8 |
100 |
60*60 |
8 |
±24.4 |
M39*1 |
146.85 |
117.85 |
10.65 |
24-25 |
1J990200063 |
SL-1064-65-125 |
125 |
65*65 |
15 |
±21.3 |
M85*1 |
187.13 |
146.63 |
34.39 |
12.3-13.8 |
1J990200002 |
SL-1064-70-100G |
100 |
70*70 |
14 |
±25 |
M85*1 |
104.3 |
98.8 |
43.54 |
10-12 |
1J990200013 |
SL-1064-70-100N |
100 |
70*70 |
10 |
±25 |
M85*1 |
105.6 |
97.55 |
42 |
20-20 |
1J990200047 |
SL-1064-70-160-D30 |
160 |
70*70 |
30 |
±18 |
M100*1 |
218.7 |
170.2 |
20 |
15-35 |
1J990200004 |
SL-1064-80-+A4:K19125-D15 |
125 |
80*80 |
15 |
±26.4 |
M85*1 |
196.9 |
152.6 |
36.94 |
16-19 |
1J990200204 |
SL-1064-80-170AC |
170 |
80*80 |
30 |
±25 |
M112*1 |
273.38 |
217.5 |
38 |
50-60 |
1J990200101 |
SL-1064-F166-30 |
165 |
85*85 |
30 |
±21 |
M85*1 |
287.84 |
197.07 |
15..5 |
18-46 |
1J990200105 |
SLF-1064-160-8 |
160 |
90*90 |
8 |
±23 |
M39*1 |
209.65 |
184.81 |
17.03 |
13.65-11.03 |
1J990200028 |
SL-1064-96-160-D20 |
160 |
96*96 |
20 |
±25 |
M85*1 |
231.85 |
180.85 |
13 |
54-108 |
1J990200229 |
SL-1064-96-170-D30 |
170 |
96*96 |
30 |
±22.9 |
M95*1 |
295.8 |
181.3 |
37.2 |
28-76 |
1J990200232 |
SL-1064-95-130C |
130 |
100*100 |
3 |
±29.5 |
M85*1 |
139.96 |
132.31 |
57.08 |
56.8-66.9 |
1J990200103 |
SL-1064-100-160A |
160 |
100*100 |
10 |
±25 |
M85*1 |
190.03 |
178.6 |
49.56 |
25-30 |
1J990200015 |
SL-1064-100-160-D20 |
160 |
100*100 |
20 |
±25.8 |
M85*1 |
207.4 |
187.9 |
76.5 |
21.2-33.4 |
1J990200048 |
SL-1064-100-165-D25 |
165 |
100*100 |
25 |
±23.5 |
M85*1 |
287.84 |
197.14 |
15.5 |
18-28 |
1J990200052 |
SL-1064-100-254-D30 |
253.85 |
100*100 |
30 |
±17.8 |
M85*1 |
362.43 |
303.33 |
43.48 |
16-17 |
1J990200008 |
SL-1064-107-163 |
163 |
107*107 |
12 |
±26.3 |
M85*1 |
184.06 |
180.86 |
14.01 |
26-28 |
1J990200221 |
SL-1064-F160B |
160 |
110*110 |
12 |
±27.6 |
M85*1 |
191 |
182.94 |
14.04 |
26.8-38 |
1J990200116 |
SL-1064-112-163 |
163 |
112*112 |
10 |
±27.8 |
M85*1 |
193.42 |
181.93 |
16.73 |
32-36 |
1J990200030 |
?
15933752505
