反射光纤探头
反射光纤探头被用于多种测量应用。包括颜色测量，反射率测量，甚荧光测量。韵翔光电为您提供多种配置的反射探头，满足各种应用的需求。
多种探头选项=灵活应用
反射探头可以被用于镜面反射测量或者漫反射测量，固体的荧光测量，或者背向散射和液体粉末的荧光测量。这些探头可以配置UV-VIS (200-800nm) 或者 VIS-NIR(400-2100nm) 或者 包含所有的波长范围。

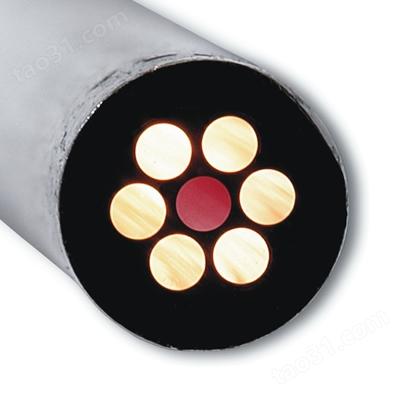

标准的反射/背向散射探头是基于圆形排列的光纤束。例如，6根光纤环绕1根光纤。这个配置确保了光纤平行排列，朝向*。可以用中央的1根光纤连接光源照明，环绕的6根光纤接到光谱仪，用于信号采集。当然某些应用可以反过来配置。根据需要灵活使用。
QR200-12-MIXED |
Premium 200 um Reflection Probe, MIXED, 2 m |
QR200-7-UV-BX |
Premium 200 um Reflection Probe, UV/VIS, 2 m, BX |
QR200-7-UV-VIS |
Premium 200 um Reflection Probe, UV/VIS, 2 m |
QR200-7-VIS-BX |
Premium 200 um Refl. Probe, VIS/NIR, 2 m, BX |
QR200-7-VIS-NIR |
Premium 200 um Reflection Probe, VIS/NIR, 2 m |
QR200-ANGLE-UV |
Premium 200 um Refl. Probe, UV/VIS, 2 m, 30 deg. window |
QR200-ANGLE-VIS |
Premium 200 um Refl. Probe, VIS/NIR, 2 m, 30 deg. window |
QR200-REF-UV-VIS |
Premium 200 um Refl. Probe, UV/VIS, 2 m, reference leg |
QR200-REF-VIS-NIR |
Premium 200 um Refl. Probe, VIS/NIR, 2 m, reference leg |
QR230-7-XSR |
Premium 235 um Refl. Probe, solarization-resistant, 2 m |
QR400-7-SR |
Premium 400 um Refl. Probe, solarization-resistant, 2 m |
QR400-7-SR-BX |
Premium 400 um Reflection Probe, SR, 2 m, BX Jacket |
QR400-7-UV-BX |
Premium 400 um Reflection Probe, UV/VIS, 2 m, BX Jacket |
QR400-7-UV-VIS |
Premium 400 um Reflection Probe, UV/VIS, 2 m |
QR400-7-VIS-BX |
Premium 400 um Reflection Probe, VIS/NIR, 2 m, BX Jacket |
QR400-7-VIS-NIR |
Premium 400 um Reflection Probe, VIS/NIR, 2 m |
QR400-ANGLE-UV |
Premium 400 um Refl. Probe, UV/VIS, 2 m, 30 deg. window |
QR400-ANGLE-VIS |
Premium 400 um Refl. Probe, VIS/NIR, 2 m, 30 deg. window |
QR450-7-XSR |
Premium 455 um Refl. Probe, solarization-resistant, 2 m |
QR600-7-SR125BX |
Prem. 600 um Refl. Probe, solariz.-res., 1/8" ferrule, BX |
QR600-7-SR-125F |
Premium 600 um Refl. Probe, solariz.-resist., 1/8" ferrule |
QR600-7-UV125BX |
Prem. 600 um Refl. Probe, UV/VIS, 1/8" ferrule, BX Jacket |
QR600-7-UV-125F |
Premium 600 um Refl. Probe, UV/VIS, 1/8" ferrule, 2 m |
QR600-7-VIS125BX |
Prem. 600 um Refl. Probe, VIS/NIR, 1/8" ferrule, BX Jacket |
QR600-7-VIS-125F |
Premium 600 um Refl. Probe, VIS/NIR, 1/8" ferrule, 2 m |
