ISP光学氟化钙双凸（DCX）镜片
?

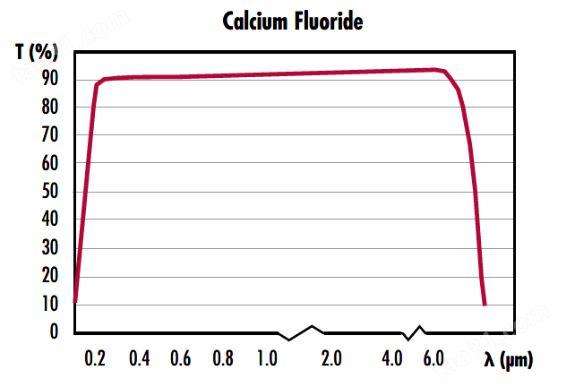

l??????????????????????在350nm-7μm波段透射率大于90%
l??????????????????????折射率低
?
通用规格
涂层: |
Uncoated |
基底: |
Calcium Fluoride (CaF2) |
表面质量: |
60-40 |
倒角: |
Protective bevel as needed |
?
产品介绍

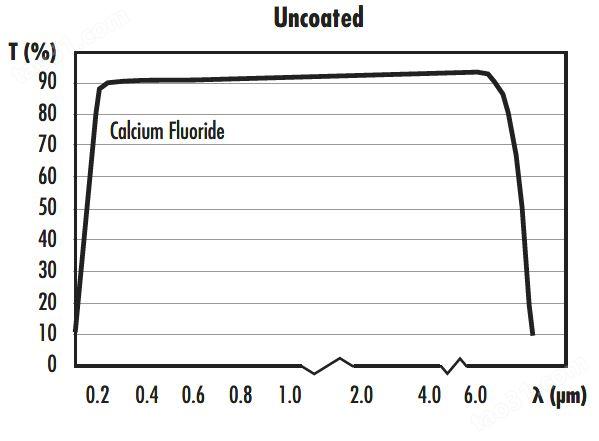

氟化钙玻璃由于在350nm 到7μm的透射率很高，因此通常用于一些分光计的窗口片以及镜头上，也可用在需要保持低温凉爽的热成像系统。由于氟化钙镜片折射率低，因此即使不镀膜也有较高的透射，其努氏硬度可达158.3.
?
?
产品信息
Dia. (mm) |
EFL (mm) |
涂层 |
产品编码 |
12.70 +0.00/-0.13 |
25.40 @ 5μm |
Uncoated |
24-763 |
12.70 +0.00/-0.13 |
50.80 @ 5μm |
Uncoated |
24-764 |
25.40 +0.00/-0.13 |
25.40 |
Uncoated |
47-056 |
25.40 +0.00/-0.13 |
50.80 |
Uncoated |
47-057 |
25.40 +0.00/-0.13 |
63.50 |
Uncoated |
48-018 |
25.40 +0.00/-0.13 |
76.20 |
Uncoated |
47-058 |
25.40 +0.00/-0.13 |
100.00 |
Uncoated |
47-059 |
25.40 +0.00/-0.13 |
150.00 @ 5μm |
Uncoated |
24-765 |
38.10 +0.00/-0.13 |
38.10 @ 5μm |
Uncoated |
24-766 |
38.10 +0.00/-0.13 |
50.80 @ 5μm |
Uncoated |
24-767 |
38.10 +0.00/-0.13 |
63.50 @ 5μm |
Uncoated |
24-768 |
38.10 +0.00/-0.13 |
150.00 @ 5μm |
Uncoated |
24-769 |
50.80 +0.00/-0.13 |
50.80 @ 5μm |
Uncoated |
24-770 |
50.80 +0.00/-0.13 |
76.20 @ 5μm |
Uncoated |
24-771 |
50.80 +0.00/-0.13 |
150.00 @ 5μm |
Uncoated |
24-772 |
50.80 +0.00/-0.13 |
200.00 @ 5μm |
Uncoated |
24-773 |
50.80 +0.00/-0.13 |
250.00 @ 5μm |
Uncoated |
24-774 |
76.20 +0.00/-0.13 |
200.00 @ 5μm |
Uncoated |
24-775 |
76.20 +0.00/-0.13 |
250.00 @ 5μm |
Uncoated |
24-776 |
76.20 +0.00/-0.13 |
500.00 @ 5μm |
Uncoated |
24-777 |
?
技术信息
?
?
