一分二光导
?70% Typical Illuminator Coupling Efficiency
?Cool, Uniform Illumination
?Crimped Stainless Steel Terminations
?Ground and Polished Glass Fibers
Light guide adapters
needed to mate with
fiber optic illuminators.
The correct adapater will depend on the tip diameter of the light guide. For 1/8" fiber diameters use
#38-943, and for ?" use
#38-944.
一分二光导通用规格

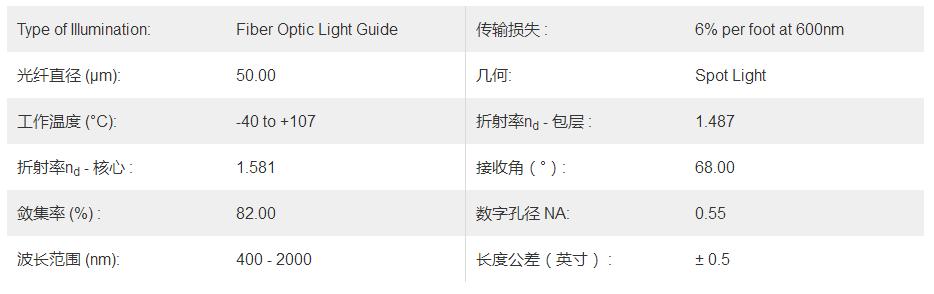

技术信息：
| ? | ||||||

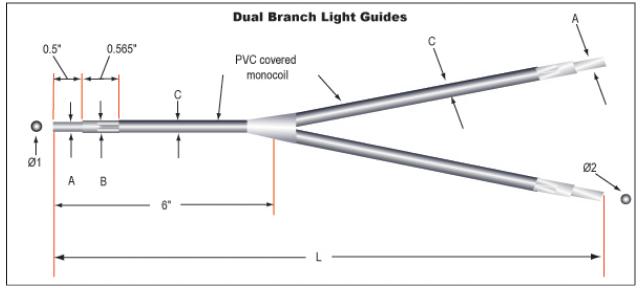

Filter Bundle Diameter |
Length |
Dimensions |
Dual Branch Guides Stock No. |
|||
?1 |
?2 |
A |
B |
C |
? | ? |
0.125" |
0.089" |
36" |
0.187" |
0.250" |
0.230" |
#54-199 |
0.125" |
0.089" |
48" |
0.187" |
0.250" |
0.230" |
#54-200 |
0.125" |
0.089" |
72" |
0.187" |
0.250" |
0.230" |
#54-201 |
0.250" |
0.177" |
36" |
0.312" |
0.422" |
0.410" |
#54-202 |
0.250" |
0.177" |
48" |
0.312" |
0.422" |
0.410" |
#53-045 |
0.250" |
0.177" |
72" |
0.312" |
0.422" |
0.410" |
#54-203 |
|
||||||
