N-BK7五棱镜
?90° 光线偏差
?右旋性的图像
?用于定义直角的光学工具
?另外也备有额外五棱镜
N-BK7五棱镜是具有90° 光线偏差及右旋性的图像的的五面棱镜。反射面镀铝膜以提高效率。稍微移动棱镜不会对反射光线造成太大的影响，并能使五角棱镜成为在光学系统中定义直角的佳光学工具。TECHSPEC? N-BK7五角棱镜采用精密的N-BK7制作而成，适用于各种可见光应用。
Common Specifications
表面平整度: |
λ/4 |
图像定位: |
Right-Handed |
基底: |
N-BK7 |
技术数据
订购信息
涂层 |
波长范围 (nm) |
产品号 |
|---|---|---|
VIS 0° & Aluminized |
425 - 675 |
#85-159 |
VIS 0° & Aluminized |
425 - 675 |
#85-160 |
MgF2 & Aluminized |
400 - 700 |
#45-112 |
VIS 0° & Aluminized |
425 - 675 |
#48-595 |
MgF2 & Aluminized |
400 - 700 |
#32-030 |
VIS 0° & Aluminized |
425 - 675 |
#48-596 |
MgF2 & Aluminized |
400 - 700 |
#43-502 |
VIS 0° & Aluminized |
425 - 675 |
#48-597 |
MgF2 & Aluminized |
400 - 700 |
#31-051 |
VIS 0° & Aluminized |
425 - 675 |
#48-598 |
MgF2 & Aluminized |
400 - 700 |
#42-779 |
MgF2 & Aluminized |
400 - 700 |
#47-458 |
VIS 0° & Aluminized |
425 - 675 |
#48-599 |
MgF2 & Aluminized |
400 - 700 |
#45-073 |
VIS 0° & Aluminized |
425 - 675 |
#48-600 |
MgF2 & Aluminized |
400 - 700 |
#45-402 |
VIS 0° & Aluminized |
425 - 675 |
#48-601 |
MgF2 & Aluminized |
400 - 700 |
#45-674 |
VIS 0° & Aluminized |
425 - 675 |
#48-602 |
MgF2 & Aluminized |
400 - 700 |
#45-675 |
VIS 0° & Aluminized |
425 - 675 |
#48-603 |
MgF2 & Aluminized |
400 - 700 |
#45-676 |
MgF2 & Aluminized |
400 - 700 |
#47-459 |
VIS 0° & Aluminized |
425 - 675 |
#48-604 |
Technical Information

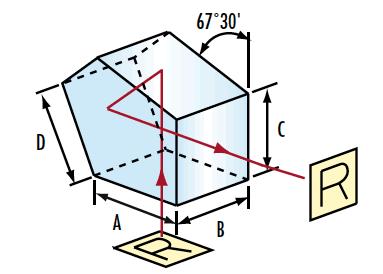

TECHSPEC? Penta Prism Dimensions |
|||||
Stock No. |
Coating |
Dimensions |
|||
A |
B |
C |
D |
||
#85-159 |
VIS 0° |
0.50 |
0.50 |
0.50 |
0.60 |
#85-160 |
VIS 0° |
1.00 |
1.00 |
1.00 |
1.20 |
#45-112 |
MgF2 |
5.00 |
5.00 |
5.00 |
6.10 |
#48-595 |
VIS 0° |
||||
#32-030 |
MgF2 |
10.00 |
10.00 |
10.00 |
11.95 |
#48-596 |
VIS 0° |
||||
#43-502 |
MgF2 |
15.00 |
15.00 |
15.00 |
15.96 |
#48-597 |
VIS 0° |
||||
#31-051 |
MgF2 |
20.00 |
20.00 |
20.00 |
21.65 |
#48-598 |
VIS 0° |
||||
#42-779 |
MgF2 |
25.00 |
25.00 |
25.00 |
27.90 |
#47-458 |
MgF2 |
||||
#48-599 |
VIS 0° |
||||
#45-073 |
MgF2 |
30.00 |
30.00 |
30.00 |
32.47 |
#48-600 |
VIS 0° |
||||
#45-402 |
MgF2 |
35.00 |
35.00 |
35.00 |
37.88 |
#48-601 |
VIS 0° |
||||
#45-674 |
MgF2 |
40.00 |
40.00 |
40.00 |
43.30 |
#48-602 |
VIS 0° |
||||
#45-675 |
MgF2 |
45.00 |
45.00 |
45.00 |
48.71 |
#48-603 |
VIS 0° |
||||
#45-676 |
MgF2 |
50.00 |
50.00 |
50.00 |
54.12 |
