硅平凸 (PCX) 透镜
TECHSPEC? 硅平凸 (PCX) 透镜具有精密抛光表面，这一特点使其非常适合于多种红外线应用，包括近红外 (NIR) 成像和红外线分光镜。提供从f1到f10之间的多种焦距的未镀膜和宽带镀膜的透镜可以获得。关于定制红外膜层的要求，请联系销售部。
通用规格
| Power (P-V) @ 632.8nm: | 2λ | 直径 (mm): | 25.00 +0.0/-0.1 |
| Irregularity (P-V) @ 632.8nm: | λ/2 | 基底: | Silicon (Si) |
| 中心偏（弧分）: | <3 | 表面质量: | 60-40 |
| 有效孔径 CA（mm）: | 24 | 倒角: | Protective bevel as needed |
产品型号
| EFL (mm) | BFL (mm) | 涂层 | 产品编码 |
| 25.00 | 23.98 | Uncoated | #69-673 |
| 25.00 | 23.98 | BBAR (1650-3000nm) | #21-088 |
| 25.00 | 23.98 | BBAR (3000-5000nm) | #69-682 |
| 30.00 | 28.98 | Uncoated | #69-674 |
| 30.00 | 28.98 | BBAR (1650-3000nm) | #21-089 |
| 30.00 | 28.98 | BBAR (3000-5000nm) | #69-683 |
| 35.00 | 34.12 | Uncoated | #69-675 |
| 35.00 | 34.12 | BBAR (1650-3000nm) | #21-090 |
| 35.00 | 34.12 | BBAR (3000-5000nm) | #69-684 |
| 40.00 | 39.12 | Uncoated | #69-676 |
| 40.00 | 39.12 | BBAR (1650-3000nm) | #21-091 |
| 40.00 | 39.12 | BBAR (3000-5000nm) | #69-685 |
| 50.00 | 49.12 | Uncoated | #69-677 |
| 50.00 | 49.12 | BBAR (1650-3000nm) | #21-092 |
| 50.00 | 49.12 | BBAR (3000-5000nm) | #69-686 |
| 75.00 | 74.12 | Uncoated | #69-678 |
| 75.00 | 74.12 | BBAR (1650-3000nm) | #21-093 |
| 75.00 | 74.12 | BBAR (3000-5000nm) | #69-687 |
| 100.00 | 99.12 | Uncoated | #69-679 |
| 100.00 | 99.12 | BBAR (1650-3000nm) | #21-094 |
| 100.00 | 99.12 | BBAR (3000-5000nm) | #69-688 |
| 150.00 | 149.12 | Uncoated | #69-680 |
| 150.00 | 149.12 | BBAR (1650-3000nm) | #21-095 |
| 150.00 | 149.12 | BBAR (3000-5000nm) | #69-689 |
| 250.00 | 249.12 | Uncoated | #69-681 |
| 250.00 | 249.12 | BBAR (1650-3000nm) | #21-096 |
| 250.00 | 249.12 | BBAR (3000-5000nm) | #69-690 |

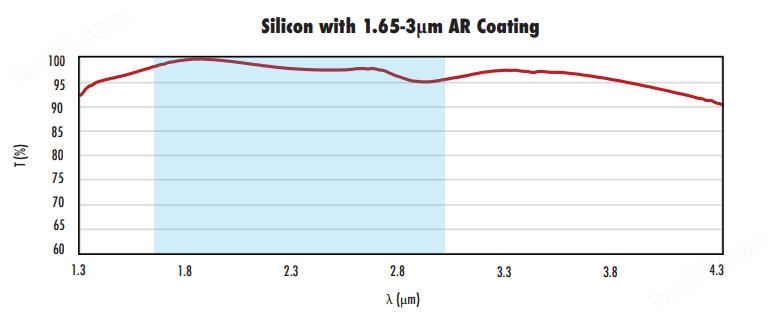

技术数据
