电视微距镜头
百万像素镜头
Item No. |
Magnification |
W.D.(mm) |
Aperture |
Depth of Field(mm) |
Object size |
Resolution Power(object) |
NA |
TV Distortion |
Notes |
GTVMMP0206 |
x0.2-0.6 |
132.0 -51.3 |
F7.4-10.2 |
±7-±1 |
40-13.3 |
67-22μm |
0.0694-0.049 |
0.1% |
Straight |
GTVMMP0610 |
x0.6-1.0 |
126.1-92.6 |
F8.0-10.0 |
±0.9-±0.4 |
13.3-8.0 |
22-13μm |
0.0625-0.05 |
0.1% |
Straight |
For the 1,500,000 Pixel 1/2Inch CCD
High Resolution(More Than 1,000 TV Lines)
Almost 0 % Distortion
?电视微距镜头
固定放大镜头

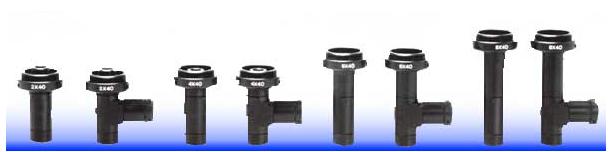

固定放大镜头，适用于40mm（W.D。），1/2英寸格式
Specifications of Fixed Magnification Lenses for 40mm(W.D.),1/2inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
2-40 |
X2.00 |
- |
0.28mm |
2.4x3.2 |
4.8μm |
0.07 |
0.6% |
straight |
2D-40 |
X2.00 |
- |
0.28mm |
2.4x3.2 |
4.8μm |
0.07 |
0.6% |
coaxial |
4-40 |
X4.00 |
- |
0.14mm |
1.2x1.6 |
4.8μm |
0.07 |
0.3% |
straight |
4D-40 |
X4.00 |
- |
0.14mm |
1.2x1.6 |
4.8μm |
0.07 |
0.3% |
coaxial |
6-40 |
X6.00 |
- |
0.095mm |
0.8x1.06 |
4.8μm |
0.07 |
0.2% |
straight |
6D-40 |
X6.00 |
- |
0.095mm |
0.8x1.06 |
4.8μm |
0.07 |
0.2% |
coaxial |
8-40 |
X8.00 |
- |
0.071mm |
0.6x0.8 |
4.8μm |
0.07 |
0.1% |
straight |
8D-40 |
X8.00 |
- |
0.071mm |
0.6x0.8 |
4.8μm |
0.07 |
0.1% |
coaxial |
?
固定放大镜头，适用于65毫米（W.D。），1/2英寸格式
Specifications of Fixed Magnification Lenses for 65mm(W.D.),1/2Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
1-65 |
X1.00 |
F14.2 |
1140μm |
- |
9.6μm |
0.035 |
0.11% |
straight |
1D-65 |
X1.00 |
F14.2 |
1140μm |
- |
9.6μm |
0.035 |
0.11% |
coaxial |
?
固定放大镜头，适用于65毫米（W.D。），2/3英寸格式
Specifications of Fixed Magnification Lenses for 65mm(W.D.),2/3Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
2-65 |
X2.00 |
F15 |
300μm |
2.4x3.2 |
5.1μm |
0.066 |
-0.03% |
straight |
2D-65 |
X2.00 |
F15 |
300μm |
2.4x3.2 |
5.1μm |
0.066 |
-0.03% |
coaxial |
4-65 |
X4.00 |
F26.8 |
130μm |
1.2x1.6 |
4.6μm |
0.073 |
0.06% |
straight |
4D-65 |
X4.00 |
F26.8 |
130μm |
1.2x1.6 |
4.6μm |
0.073 |
0.06% |
coaxial |
6-65 |
X6.00 |
- |
0.1mm |
0.8x1.06 |
4.8μm |
0.076 |
0.1% |
straight |
6D-65 |
X6.00 |
- |
0.1mm |
0.8x1.06 |
4.8μm |
0.076 |
0.1% |
coaxial |
8-65 |
X8.00 |
- |
0.065mm |
0.6x0.8 |
4.4μm |
0.076 |
0.1% |
straight |
8D-65 |
X8.00 |
- |
0.065mm |
0.6x0.8 |
4.4μm |
0.076 |
0.1% |
coaxial |
?
固定放大镜头，适用于70mm（W.D。），1/2英寸或2/3英寸格式
Specifications of Fixed Magnification Lenses for 70mm(W.D.) |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field(mm) |
Field of View(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
0.55-70 |
X0.55 |
- |
1.2mm |
8.73x11.6(1/2"), |
13μm |
0.025 |
-0.04% |
straight |
0.55D-70 |
X0.55 |
- |
1.2mm |
8.73x11.6(1/2"), |
13μm |
0.025 |
-0.04% |
coaxial |
0.72-70 |
X0.72 |
- |
1.2mm |
6.67x8.89(1/2"), |
13μm |
0.025 |
0% |
straight |
0.72D-70 |
X0.72 |
- |
1.2mm |
6.67x8.89(1/2"), |
13μm |
0.025 |
0% |
coaxial |
1-70 |
X1 |
- |
1.2mm |
4.8x6.4(1/2"), |
13μm |
0.025 |
0% |
straight |
1D-70 |
X1 |
- |
1.2mm |
4.8x6.4(1/2"), |
13μm |
0.025 |
0% |
coaxial |
3-70 |
X3 |
- |
0.2mm |
1.6x2.13(1/2"), |
6μm |
0.063 |
0.2% |
straight |
3D-70 |
X3 |
- |
0.2mm |
1.6x2.13(1/2"), |
6μm |
0.063 |
0.2% |
coaxial |
5-70 |
X5 |
- |
0.2mm |
0.96x1.28(1/2"), |
6μm |
0.063 |
0.2% |
straight |
5D-70 |
X5 |
? | 0.2mm |
0.96x1.28(1/2"), |
6μm |
0.063 |
0.2% |
coaxial |
?
固定放大镜头，适用于75mm（W.D。），2/3英寸格式
Specifications of Fixed Magnification Lenses for 75mm(W.D.),2/3Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
MQM1000 |
X2.00 |
F13.0 |
+/-0.2mm |
3.3X4.4 |
8μm |
0.076 |
0.2% |
coaxial |
MQM2000 |
X2.00 |
F13.0 |
+/-0.2mm |
3.3X4.4 |
8μm |
0.076 |
0.2% |
straight |
MQJ1000 |
X4.00 |
F26.0 |
+/-0.1mm |
1.7X2.2 |
4μm |
0.076 |
0.2% |
coaxial |
MQJ2000 |
X4.00 |
F26.0 |
+/-0.1mm |
1.7X2.2 |
4μm |
0.076 |
0.2% |
straight |
MQK1000 |
X6.00 |
F38.0 |
+/-0.07mm |
1.1X1.5 |
3μm |
0.076 |
0.2% |
coaxial |
MQK2000 |
X6.00 |
F38.0 |
+/-0.07mm |
1.1X1.5 |
3μm |
0.076 |
0.2% |
straight |
MQL1000 |
X8.00 |
F59.0 |
+/-0.06mm |
0.8X1.1 |
3μm |
0.076 |
0.2% |
coaxial |
MQL2000 |
X8.00 |
F59.0 |
+/-0.06mm |
0.8X1.1 |
3μm |
0.076 |
0.2% |
straight |
?
固定放大镜头，适用于90mm（W.D。），2/3英寸格式
Specifications of Fixed Magnification Lenses for 90mm(W.D.),2/3Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
YRJ5000 |
X0.14 |
F4.6 |
+/-5.0mm |
47X63 |
130μm |
0.011 |
0.1% |
straight |
YRJ7000 |
X0.14 |
F6.4 |
+/-7.0mm |
47X63 |
130μm |
0.011 |
0.1% |
straight |
YRJ3000 |
X0.14 |
F9.0 |
+/-9.0mm |
47X63 |
130μm |
0.011 |
0.1% |
straight |
YJS5000 |
X0.30 |
F4.6 |
+/-1.2mm |
22X29 |
60μm |
0.021 |
0.1% |
straight |
YJS6000 |
X0.30 |
F7.3 |
+/-2.0mm |
22X29 |
60μm |
0.021 |
0.1% |
straight |
YJS4000 |
X0.30 |
F10.0 |
+/-3.0mm |
22X29 |
60μm |
0.021 |
0.1% |
straight |
YJQ4000 |
X0.50 |
F8.4 |
+/-0.8mm |
13X18 |
36μm |
0.03 |
0.1% |
straight |
YJQ3000 |
X0.50 |
F12.0 |
+/-1.2mm |
13X18 |
36μm |
0.03 |
0.1% |
straight |
YRH4000 |
X1.00 |
F8.4 |
+/-0.3mm |
6.6X8.8 |
18μm |
0.045 |
0.1% |
straight |
YRH2000 |
X1.00 |
F11.0 |
+/-0.4mm |
6.6X8.8 |
18μm |
0.045 |
0.1% |
straight |
YRH3000 |
X1.00 |
F16.0 |
+/-0.5mm |
6.6X8.8 |
18μm |
0.045 |
0.1% |
straight |
?
固定放大镜头，适用于110mm（W.D。），1/2英寸格式
Specifications of Fixed Magnification Lenses for110mm(W.D.),1/2Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
05-110 |
X0.5 |
F11.4 |
2.4mm |
9.6x12.8 |
16μm |
0.022 |
0.02% |
straight |
05D-110 |
X0.5 |
F11.4 |
2.4mm |
9.6x12.8 |
16μm |
0.022 |
0.02% |
coaxial |
1-110 |
X1.0 |
F20 |
1600um |
4.8x6.4 |
13.4μm |
0.025 |
0.06% |
straight |
1D-110 |
X1.0 |
F20 |
1600um |
4.8x6.4 |
13.4μm |
0.025 |
0.06% |
coaxial |
?
固定放大镜头，适用于110mm（W.D。），2/3英寸格式
Specifications of Fixed Magnification Lenses for110mm(W.D.),2/3Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
2-110 |
X2.0 |
F24.6 |
490um |
3.3x4.4 |
8.4μm |
0.040 |
-0.03% |
straight |
2D-110 |
X2.0 |
F24.6 |
490um |
3.3x4.4 |
8.4μm |
0.040 |
-0.03% |
coaxial |
4-110 |
X4.0 |
F40 |
0.22mm |
1.65x2.2 |
7μm |
0.050 |
0.34% |
straight |
4D-110 |
X4.0 |
F40 |
0.22mm |
1.65x2.2 |
7μm |
0.050 |
0.34% |
coaxial |
6-110 |
X6.0 |
F60 |
0.19mm |
1.1x1.47 |
7μm |
0.050 |
0.16% |
straight |
6D-110 |
X6.0 |
F60 |
0.19mm |
1.1x1.47 |
7μm |
0.050 |
0.16% |
coaxial |
?
固定放大镜头，适用于156mm（W.D。），2/3英寸格式
Specifications of Fixed Magnification Lenses for 156mm(W.D.),2/3Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
2-156 |
X2.00 |
F25.0 |
0.44mm |
3.3x4.4 |
9μm |
0.04 |
0.07% |
straight |
2D-156 |
X2.00 |
F25.0 |
0.44mm |
3.3x4.4 |
9μm |
0.04 |
0.07% |
coaxial |
?
固定放大镜头，适用于156mm（W.D。），1/2英寸格式
Specifications of Fixed Magnification Lenses for 156mm(W.D.),1/2Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
1-156 |
X1.0 |
F16.7 |
1.0mm |
4.8x6.4 |
12μm |
0.03 |
0.15% |
straight |
1D-156 |
X1.0 |
F16.7 |
1.0mm |
4.8x6.4 |
12μm |
0.03 |
0.15% |
coaxial |
?
固定放大镜头，适用于220mm（W.D。），1/2英寸格式
Specifications of Fixed Magnification Lenses for 220mm(W.D.),1/2Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
1D-220 |
X1.0 |
F20 |
1.24mm |
4.8x6.4 |
14μm |
0.025 |
0.1% |
coaxial |
2D-220 |
X2.0 |
F33 |
0.67mm |
2.4x3.2 |
11μm |
0.03 |
0.1% |
coaxial |
3D-220 |
X3.0 |
F43 |
0.41mm |
1.6x2.1 |
9.6μm |
0.035 |
0.1% |
coaxial |
?
固定放大镜，适用于290mm（W.D。），1/2英寸格式
Specifications of Fixed Magnification Lenses for 290mm(W.D.),1/2Inch Format |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
1D-290 |
X1.0 |
F20 |
1.24mm |
4.8x6.4 |
13μm |
0.025 |
0.15% |
Coaxial |
2D-290 |
X2.0 |
F33 |
0.67mm |
2.4x3.2 |
11μm |
0.03 |
0.15% |
coaxial |
3D-290 |
X3.0 |
F43 |
0.41mm |
1.6x2.1 |
9.6μm |
0.035 |
0.15% |
coaxial |
?
其他格式固定放大镜头
Specifications of Fixed Magnification Lenses for others |
||||||||
Item No. |
Magnification |
Aperture |
Depth of Field |
Object size(mm) |
Resoltion power(object) |
NA |
TV Distortion |
Notes |
1472 |
172mm |
X0.145 |
- |
+/-17 |
33X44 |
94μm |
- |
1/2Inch |
MRW |
70mm |
X0.30 |
- |
+/-1.4 |
21X31 |
60μm |
- |
2/3Inch |
?
变焦（可变焦距）镜头
变焦（可变焦距）2/3英寸格式
Specifications for TV Macro Lenses for Variable focusing 2/3inch Format |
|||||||||
Item No. |
Magnifi |
W.D.(mm) |
Aperture |
Depth of Field(mm) |
Object size(mm) |
Resolution Power(object) |
NA |
TV Distortion |
Notes |
MQM6000 |
x1.8-2.2 |
82-68 |
F12 - F14.5 |
±0.2(x2.00) |
3.7x4.9-3.0x4.0 |
10-8μm |
0.076 |
0.2% |
Coaxial |
MQJ6000 |
x3.5-4.5 |
84-68 |
F23 - F30 |
±0.1(x4.00) |
1.9x2.5-1.5x2.0 |
5-4μm |
0.076 |
0.2% |
Coaxial |
MQK6000 |
x5.4-6.8 |
84-67 |
F36 - F45 |
±0.07(x6.00) |
1.2x1.6-1.0x1.3 |
4-3μm |
0.076 |
0.2% |
Coaxial |
MQL6000 |
x7.3-9.0 |
84-67 |
F48 - F60 |
±0.06(x8.00) |
0.9x1.2-0.7x1.0 |
4-3μm |
0.076 |
0.2% |
Coaxial |
YJSH000 |
x0.2-0.6 |
120-50 |
- |
±14(x2.00) |
33x44- |
90-30μm |
- |
0.1% |
Straight |
YRHC000 |
x0.6-1.0 |
125-92 |
- |
±2(x0.60) |
11x15- |
30-18μm |
- |
0.1% |
Straight |
MRH3000 |
x0.65-1.0 |
105-75 |
F10 - F16 |
±1(x0.65) |
10x14- |
27-18μm |
- |
0.1% |
Coaxial |
MRG3000 |
x1.0-1.5 |
105-92 |
F11 - F17 |
±0.4(x1.00) |
6.6x8.8-4.4x5.9 |
18-12μm |
0.045 |
0.1% |
Coaxial |
?
变焦（可变焦距）1/2英寸格式
Specifications of TV Macro Lenses for Variable Focusing 1/2inch Format |
|||||||||
Item No. |
Magnifi |
W.D.(mm) |
Aperture |
Depth of Field(mm) |
Object size(mm) |
Resolution Power(object) |
NA |
TV Distortion |
Notes |
MRK2000 |
x1.5-1.9 |
43-36 |
F17 - F21 |
±0.35(x1.50) |
3.2x4.3-2.5x3.4 |
9-7μm |
0.045 |
0.2% |
Coaxial |
MRL2000 |
x2.0-2.4 |
42-35 |
F17 - F20 |
±0.20(x2.00) |
2.4x3.2-2.0x2.7 |
7-6μm |
0.059 |
0.2% |
Coaxial |
MRM2000 |
x3.0-3.5 |
40-34 |
F19 - F22 |
±0.10(x3.00) |
1.6x2.1-1.4x1.8 |
5-4μm |
0.079 |
0.2% |
Coaxial |
MRP2000 |
x4.5-4.8 |
37-32 |
F23 - F24 |
±0.05(x4.50) |
1.1x1.4-1.0x1.3 |
5-4μm |
0.100 |
0.2% |
Coaxial |
?
手动变焦镜头
手动变焦镜头2/3英寸格式
Specifications of TV Macro Lenses for Manual Zoom Lenses 2/3inch format |
|||||||||
Item No. |
Magnifi |
W.D. |
Aperture |
Depth of Field |
Object size |
Resolution Power(object) |
NA |
TV Distortion |
Notes |
YXP3000 |
x0.80-4.00 |
98 |
F12-30 |
1-0.2mm |
6x8- |
18-5μm |
0.033-0.067 |
0.1% |
Straight |
Z075 |
x0.2-0.75 |
150 |
- |
4-1mm |
24x32- |
50-16μm |
0.012-0.018 |
- |
Straight |
Z1 |
x0.25-1.0 |
175 |
- |
3.2-0.6mm |
19.2x25.6- |
35-20μm |
0.003-0.025 |
- |
Straight |
Z2 |
x0.5-2.0 |
90 |
- |
1.4-0.4mm |
9.6x12.8- |
25-10μm |
0.021-0.045 |
- |
Straight |
Z3 |
x0.75-3.0 |
56 |
- |
1-0.2mm |
6.4x8.5- |
20-8μm |
0.031-0.068 |
- |
Straight |
Z4 |
x0.67-4 |
96 |
- |
5-0.3mm |
7.1x9.5- |
15.25-5.59μm |
0.022-0.06 |
- |
Straight |
Z4D |
x0.67-4 |
96 |
- |
5-0.3mm |
7.1x9.5- |
15.25-5.59μm |
0.022-0.06 |
- |
Coaxial |
Z4.5 |
x0.75-4.5 |
90 |
- |
3.6-0.26mm |
6.4x8.5- |
15.6-4.4μm |
0.035-0.050 |
- |
Straight |
Z4.5D |
x0.75-4.5 |
90 |
- |
3.6-0.26mm |
6.4x8.5- |
15.6-4.4μm |
0.035-0.050 |
- |
Coaxial |
Z2-RA |
x0.5-2.0 |
90 |
- |
1.4-0.4mm |
9.6x12.8- |
25-10μm |
0.021-0.045 |
- |
Straight, |
Z4.5-RA |
x0.75-4.5 |
90 |
- |
3.6-0.26mm |
6.4x8.5- |
15.6-4.4μm |
0.035-0.050 |
- |
Straight, |
Z6-1 |
x1-6 |
60 |
- |
0.96-0.05mm |
4.8x6.4- |
11.56-4.09μm |
0.029-0.082 |
- |
Straight |
?
手动变焦镜头1/2英寸格式
Specifications of TV Macro Lenses for Manual Zoom Lenses 1/2inch Format |
|||||||||
Item No. |
Magnifi |
W.D. |
Aperture |
Depth of |
Object size |
Resolution Power |
NA |
TV Distortion |
Notes |
Z04 |
x0.13-0.4 |
200 |
- |
42-4.8 |
36x48 - |
120-40 |
0.009-0.026 |
- |
Straight |
Z08 |
x0.1-0.8 |
195 |
F7.5-C |
40-0.6 |
48x64- |
150-15 |
0.005-0.04 |
- |
Straight |
ZS |
x0.6-4.8 |
36 |
22.2-22.6 |
2-0.2 |
8x10.6- |
17-6 |
0.015-0.107 |
- |
Straight |
?
双视图光学装置
双视图光学装置
Item No. |
Magnification |
Object size |
Image size |
Working Distance(mm) |
Depth of Field |
Resolution power(object) |
1279*1 |
x2.00 |
2.4x3.2 |
4.8x6.4 |
5-10 |
±0.14 |
7μm |
15933752505
