超快增强型银镀膜凹面激光反射镜
?用于对焦 Ti:sapphire 激光脉冲
?600 - 1000nm 之间的反射率大于 99%

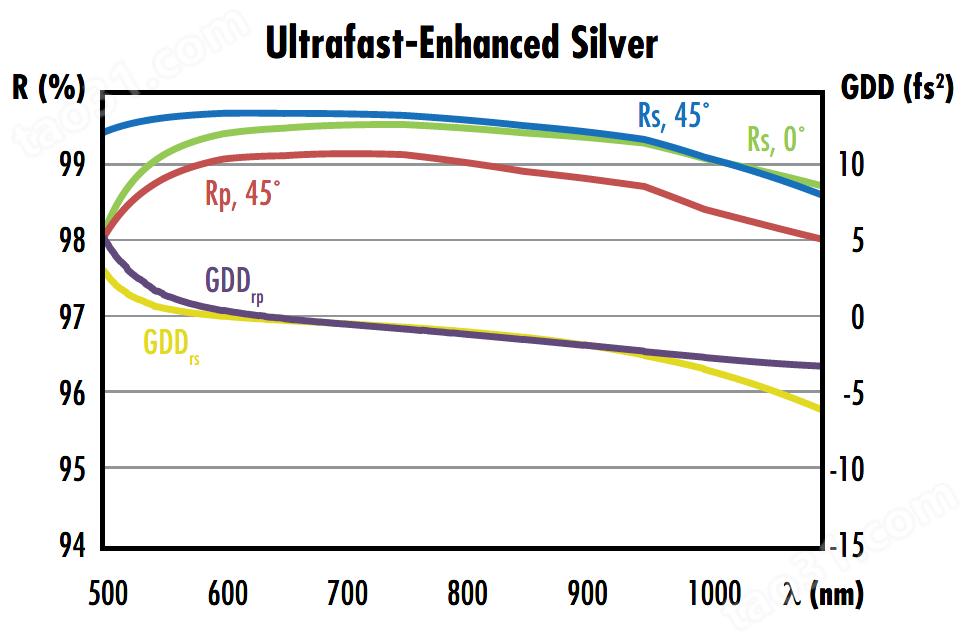

?0 ±20fs2的低群延迟色散
?有效焦距范围是 25 到 500mm
通用规格
基底: |
Fused Silica |
表面质量: |
20-10 |
涂层: |
Ultrafast-Enhanced Silver |
涂层规格: |
Ravg>99% @ 600 - 1000nm, 0° |
GDD Specification: |
0 ±20fs2 @ 600 - 1050nm |
镀膜类型: |
Ultrafast-Enhanced Silver |
有效孔径 (%): |
80 |
波长范围 (nm): |
600 - 1050 |
Damage Threshold, Pulsed: |
0.3 J/cm2 @ 800nm, 48fs, 1 pulse (typical) |
Dia. (mm) |
EFL (mm) |
涂层 |
产品编码 |
25.40 |
25.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-062 |
25.40 |
50.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-063 |
25.40 |
75.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-064 |
25.40 |
100.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-065 |
25.40 |
200.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-066 |
25.40 |
500.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-067 |
50.80 |
50.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-068 |
50.80 |
100.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-069 |
50.80 |
150.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-070 |
50.80 |
250.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-071 |
50.80 |
500.00 |
Ultrafast-Enhanced ? Silver (600-1050nm) |
#13-072 |
25.40 |
25.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-267 |
25.40 |
50.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-268 |
25.40 |
75.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-269 |
25.40 |
100.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-270 |
25.40 |
200.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-271 |
25.40 |
500.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-272 |
50.80 |
50.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-273 |
50.80 |
100.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-274 |
50.80 |
150.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-275 |
50.80 |
250.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-276 |
50.80 |
500.00 |
Ultrafast-Enhanced ? Silver (800-1150nm) |
#17-277 |
产品信息
TECHSPEC? 超快增强型银镀膜凹面激光反射镜具有采用介质镀膜增强的银镀膜，能在 600 - 1000nm 范围内提供更高的反射率。这些反射镜在其波长范围内具有很低的内在群延迟色散 (GDD)，因此非常适用于对焦或重定向诸如 Ti:sapphire 等飞秒激光器发出的激光。它们凭借很宽的波长范围，可以用于需要的带宽超出介质镀膜低 GDD 反射镜提供能力的应用中。TECHSPEC 超快增强型银镀膜凹面激光反射镜采用标准英制尺寸，有效焦距可达 500mm。
请注意:
若您的应用需要的 TECHSPEC 超快增强型银镀膜凹面激光反射镜具有其他尺寸、角度或波长范围，请联系我们。
