单模光纤跳线，镀增透膜
特性

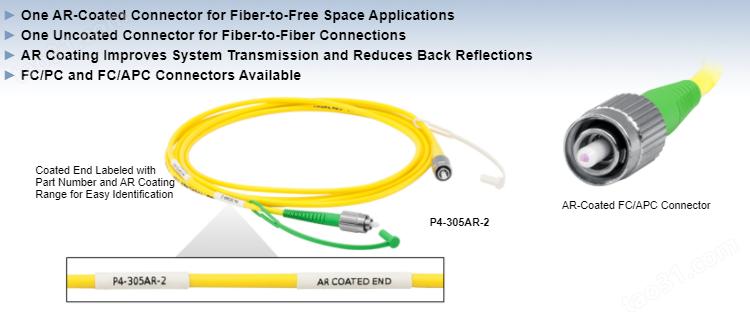

Thorlabs公司提供一端带一个镀增透膜的FC/PC或FC/APC接头，另一端带一个未镀膜FC/PC或FC/APC接头的光纤跳线。增透膜旨在减少从光纤到自由空间发射光束或将自由空间光束耦合到光纤中时的反射比。根据不同的跳线，镀膜接头的平均反射率在增透膜频率范围内小于0.75%或小于0.5%(点击下面增透膜涂层反射率图查看更多信息)。每根跳线都有?3毫米Kevlar增强型分叉管。下面根据最佳性能范围按组划分了跳线，裸纤与增透膜的指/定工作波长范围重叠。
光纤对自由空间的耦合当光从光纤入射到自由空间时，例如当使用我们的光纤准直器和FiberPort准直器/耦合器时，回波损耗(在光纤末端的玻璃-空气界面上背向反射回光源的信号损失)将会比同等光纤对光纤的耦合方式更加严重。通过光纤端面镀上增透膜，FC/PC接头上的回波损耗可以减少~8到10分贝，而FC/APC接头上的回波损耗则可以减小~2到5分贝。例如，在测试中，对于一根未镀膜接头的跳线，其典型回波损耗为~15分贝(3.16%)，而有增透膜接头的相同跳线，其回波损耗为~24分贝(0.40%)。增透膜接头还可以改善将自由空间光束耦合到光纤中时的透射率。
注意：增透膜涂层的末端只适用于自由空间应用(例如准直)，如果它碰触另一个接口，它将会被损坏。与未镀膜的两个接口连接相比，两个增透膜接口连接会增大背反射，由此造成更大的透射损耗。
清洁镀增透膜的接头端且不损坏镀膜的方法有好几种。将压缩空气轻轻喷在接头端是比较理想的做法。其他方法包括使用浸有异丙醇或甲醇的无绒光学擦拭纸或FCC-7020光纤接头清洁器轻轻擦拭。但是请不要使用干的擦拭纸，因为可能会损坏增透膜涂层。
单模光纤跳线，增透膜：320 - 430 nm| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-305AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 1% for 300 - 510 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-305AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-305AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-305AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare Fibe rWavelength Range |
Cutof fWavelength |
MFDb | Claddin gDiameter |
Coating Diameter |
Max Attenuationc |
NA | Length |
| SM300 | 320 - 430 nm | ≤310 nm | 2.0 - 2.4 μm @ 350 nm | 125 ± 1.0 μm | 245 ± 15 μm |
≤70 dB/km @ 350 nm | 0.12 - 0.14 | 2 m |
| P1-305AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/PC接头，320 - 430 nm，2米长 |
| P5-305AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/APC接头，320 - 430 nm，2米长 |
| P4-305AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/PC接头，320 - 430 nm，2米长 |
| P3-305AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/APC接头，320 - 430 nm，2米 |
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-405AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.75% for 400 - 700 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-405AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-405AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-405AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare Fibe rWavelength Range |
Cutoff Wavelength |
MFDb | Claddin gDiameter |
Coating Diameter |
Max Attenuationc |
NA | Length |
| SM400 | 405 - 532 nm | 305 -?400? nm |
2.5 - 3.4 μm @ 480 nm | 125 ± 1.0 μm | 245 ± 15 μm | ≤50 dB/km @ 430 nm≤30 dB/km @ 532 nm | 0.12 - 0.14 | 2 m |
| P1-405AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/PC接头，405 - 532 nm，2米长 |
| P5-405AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/APC接头，405 - 532 nm，2米长 |
| P4-405AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/PC接头，405 - 532 nm，2米长 |
| P3-405AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/APC接头，405 - 532 nm，2米长 |
单模光纤跳线，增透膜：488 - 633 nm
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-460AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.75% for 400 - 700 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-460AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-460AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-460AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare Fibe rWavelength Rangeb |
Cutoff Wavelength |
MFDc | Claddin gDiameter |
Coating Diameter |
Max Attenuationd,e |
NA | Length |
| SM450 | 488 - 633 nm | 350 - 470 nm |
2.8 - 4.1 μm @ 488 nm |
125 ± 1.0 μm | 245 ± 15 μm |
≤50 dB/km @ 488 nm | 0.10 - 0.14 | 2 m |
| P1-460AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/PC接头，488 - 633 nm，2米长 |
| P5-460AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/APC接头，488 - 633 nm，2米长 |
| P4-460AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/PC接头，488 - 633 nm，2米长 |
| P3-460AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/APC接头，488 - 633 nm，2米长 |
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-630AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.5% for 500 - 800 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-630AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-630AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-630AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare Fibe rWavelength Rangeb |
Cutof fWavelength |
MFDc | Claddin gDiameter |
Coating Diameter |
Max Attenuationd |
NA | Length |
| SM600 | 633 - 780 nm | 500 - 600 nm | 3.6 - 5.3 μm @ 633 nm |
125 ± 1.0 μm | 245 ± 15 μm | ≤15 dB/km | 0.10 - 0.14 | 2 m |
| P1-630AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/PC接头，633 - 780 nm，长2米 |
| P5-630AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/APC接头，633 - 780 nm，长2米 |
| P4-630AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/PC接头，633 - 780 nm，长2米 |
| P3-630AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/APC接头，633 - 780 nm，长2米 |
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-780AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.5% for 650 - 1050 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-780AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-780AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-780AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare Fibe rWavelength Range |
Cutof fWavelength |
MFDb | Claddin gDiameter |
Coating Diameter |
Max Attenuationc |
NA | Length |
| 780HP | 780 - 970 nm | 730 ± 30 nm | 5.0 ± 0.5 μm @ 850 nm | 125 ± 1 μm | 245 ± 15 μm | < 3.5 dB/km @ 850 nm | 0.13 | 2 m |
| P1-780AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/PC接头，780 - 970 nm，长2米 |
| P5-780AR-2 | 单模光纤跳线，镀增透膜FC/PC转未镀膜FC/APC接头，780 - 970 nm，长2米 |
| P4-780AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/PC接头，780 - 970 nm，长2米 |
| P3-780AR-2 | 单模光纤跳线，镀增透膜FC/APC转未镀膜FC/APC接头，780 - 970 nm，长2米 |
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-980AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.5% for 850 - 1250 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-980AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-980AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-980AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare FiberWavelength Range |
Cutof fWavelength |
MFDb | Claddin gDiameter |
Coating Diameter |
Max Attenuationc,d |
NA | Length |
| SM980-5.8-125 | 980 - 1550 nm | 870 - 970 nm |
5.3 - 6.4 μm @ 980 nm | 125 ± 1.0 μm | 245 ± 15 μm | ≤2.0 dB/km | 0.13 - 0.15 | 2 m |
| P1-980AR-2 | 单模光纤跳线，镀增透膜的FC/PC转未镀膜FC/PC接头，980 - 1250 nm，长2米 |
| P5-980AR-2 | 单模光纤跳线，镀增透膜的FC/PC转未镀膜FC/APC接头，980 - 1250 nm，长2米 |
| P4-980AR-2 | 单模光纤跳线，镀增透膜的FC/APC转未镀膜FC/PC接头，980 - 1250 nm，长2米 |
| P3-980AR-2 | 单模光纤跳线，镀增透膜的FC/APC转未镀膜FC/APC接头，980 - 1250 nm，长2米 |
单模光纤跳线，镀增透膜：1260 - 1620 nm
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-SMF28EAR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.5% for 1050 - 1620 nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-SMF28EAR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-SMF28EAR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-SMF28EAR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare Fibe rWavelength Range |
Cutof fWavelength |
MFDb | Claddin gDiameter |
Coating Diameter |
MaxAttenuationc |
NA | Length |
| SMF-28 Ultra | 1260 - 1625 nm | < 1260 nm | 9.2 ± 0.4 μ ?@ 1310 nm 10.4 ± 0.5 μm? @ 1550 nm |
125 ± 0.7 μm | 242 ± 5 μm | ≤0.32 dB/km ?@ 1310 nm ≤0.18 dB/km @ 1550 nm |
0.14 | 2 m |
| P1-SMF28EAR-2 | 单模光纤跳线，镀有增透膜的FC/PC转未镀膜FC/PC接头，1260 - 1625 nm，长2米 |
| P5-SMF28EAR-2 | 单模光纤跳线，镀有增透膜的FC/PC转未镀膜FC/APC接头，1260 - 1625 nm，长2米 |
| P4-SMF28EAR-2 | 单模光纤跳线，镀有增透膜的FC/APC转未镀膜FC/PC接头，1260 - 1625 nm，长2米 |
| P3-SMF28EAR-2 | 单模光纤跳线，镀有增透膜的FC/APC转未镀膜FC/APC接头，1260 - 1622 nm，长2米 |
| Item # | AR-Coated Connector | Uncoated Connector | AR Coating | AR Coating Reflectivity | Jacket |
| P1-2000AR-2 | FC/PC (30126C3)a | FC/PC (30126C3) | Ravg < 0.5% for nm |
 |
?3 mm Yellow PVCFurcation Tubing |
| P5-2000AR-2 | FC/PC (30126C3)a | FC/APC (30126A3) | |||
| P4-2000AR-2 | FC/APC (30126A3) | FC/PC (30126C3) | |||
| P3-2000AR-2 | FC/APC (30126A3) | FC/APC (30126A3) |
| FiberType | Bare FiberWavelength Range | Cutof fWavelength |
MFDc | Claddin gDiameter |
Coatin gDiameter |
Typical? Attenuationb |
NA | Length |
| SM2000 | nm | 1750 ± 50 nm | 13 ± 1 μm @ 1996 nm | 125 ± 1 μm | 245 ± 10 μm |
20 dB/km ?(0.02 dB/m)?@ 1.9 μm 250 dB/km? (0.25 dB/m) @ 2.3 μm |
0.12 ± 0.01 | 2 m |
| P1-2000AR-2 | 单模光纤跳线，镀有增透膜的FC/PC转未镀膜FC/PC接头，nm，长2米 |
| P5-2000AR-2 | 单模光纤跳线，镀有增透膜的FC/PC转未镀膜FC/APC接头，nm，长2米 |
| P4-2000AR-2 | 单模光纤跳线，镀有增透膜的FC/APC转未镀膜FC/PC接头，nm，长2米 |
| P3-2000AR-2 | 单模光纤跳线，镀有增透膜的FC/APC转未镀膜FC/APC接头，nm，长2米 |
