精密光学平面反射镜
?熔融石英和ZERODUR?基片
?λ/10，λ/20表面平面度
?多种镀膜可供选择
TECHSPEC?精密光学平面反射镜适用于多种应用，包括干涉仪，成像系统，激光应用，光路折叠，和自准直仪。这款反射镜有多种镀膜和基片，以及λ/10和λ/20两种表面平面度可供选择。两种基片可选，其中ZERODUR?是一种黄色的有色玻璃陶瓷，具有极低的热膨胀系数，非常适用于对温度波动敏感的应用。第二种是熔融石英，它是光学透明的，并具有高耐磨性和高耐久性，使得它非常适合在恶劣环境中使用的应用。
TECHSPEC? λ/10和 λ/20非常适用于测试和测量应用。
?
通用规格
表面质量: |
60-40 |
?
技术数据
?
表面平整度 |
直径 (mm) |

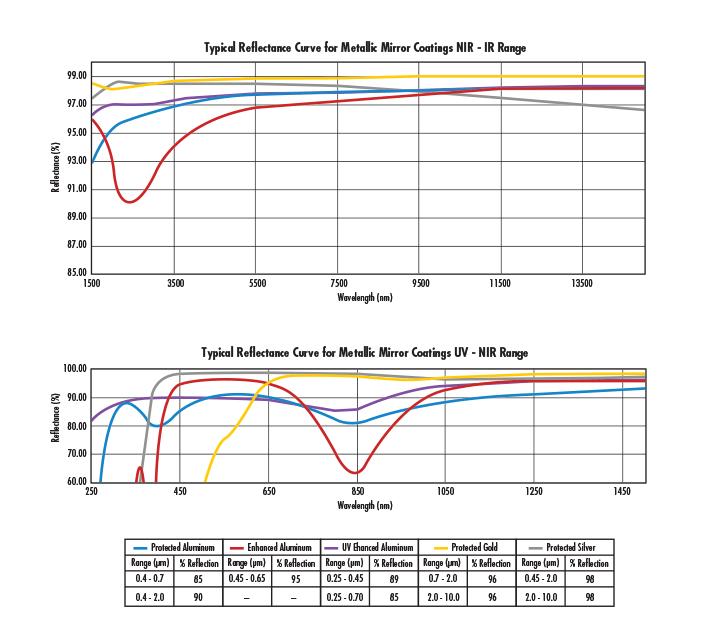

涂层规格 |
涂层 |
产品号 |
|---|---|---|---|---|
λ/10 |
12.7 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-319-522 |
λ/20 |
12.7 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-400-522 |
λ/10 |
12.7 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-327-522 |
λ/20 |
12.7 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-404-522 |
λ/10 |
12.7 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-319-533 |
λ/20 |
12.7 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-400-533 |
λ/10 |
12.7 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-327-533 |
λ/20 |
12.7 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-404-533 |
λ/10 |
12.7 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-319-566 |
λ/20 |
12.7 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-400-566 |
λ/10 |
12.7 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-327-566 |
λ/20 |
12.7 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-404-566 |
λ/10 |
12.7 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-319-577 |
λ/20 |
12.7 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-400-577 |
λ/10 |
12.7 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-327-577 |
λ/20 |
12.7 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-404-577 |
λ/10 |
25.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#01-913-522 |
λ/20 |
25.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-408-522 |
λ/10 |
25.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#32-195-522 |
λ/20 |
25.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-412-522 |
λ/10 |
25.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#01-913-533 |
λ/20 |
25.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-408-533 |
λ/10 |
25.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-195-533 |
λ/20 |
25.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-412-533 |
λ/10 |
25.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#01-913-566 |
λ/20 |
25.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-408-566 |
λ/10 |
25.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#32-195-566 |
λ/20 |
25.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-412-566 |
λ/10 |
25.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#01-913-577 |
λ/20 |
25.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-408-577 |
λ/10 |
25.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#32-195-577 |
λ/20 |
25.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-412-577 |
λ/10 |
50.8 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#01-914-522 |
λ/20 |
50.8 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-416-522 |
λ/10 |
50.8 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#32-199-522 |
λ/20 |
50.8 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#43-420-522 |
λ/10 |
50.8 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#01-914-533 |
λ/20 |
50.8 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-416-533 |
λ/10 |
50.8 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#32-199-533 |
λ/20 |
50.8 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#43-420-533 |
λ/10 |
50.8 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#01-914-566 |
λ/20 |
50.8 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-416-566 |
λ/10 |
50.8 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#32-199-566 |
λ/20 |
50.8 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#43-420-566 |
λ/10 |
50.8 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#01-914-577 |
λ/20 |
50.8 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-416-577 |
λ/10 |
50.8 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#32-199-577 |
λ/20 |
50.8 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#43-420-577 |
λ/10 |
76.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#01-915-522 |
λ/20 |
76.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#47-573-522 |
λ/10 |
76.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#31-391-522 |
λ/20 |
76.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#48-117-522 |
λ/10 |
76.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#01-915-533 |
λ/20 |
76.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#47-573-533 |
λ/10 |
76.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#31-391-533 |
λ/20 |
76.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-117-533 |
λ/10 |
76.2 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#01-915-566 |
λ/20 |
76.2 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#47-573-566 |
λ/10 |
76.2 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#31-391-566 |
λ/20 |
76.2 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-117-566 |
λ/10 |
76.2 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#01-915-577 |
λ/20 |
76.2 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#47-573-577 |
λ/10 |
76.2 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#31-391-577 |
λ/20 |
76.2 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#48-117-577 |
λ/10 |
101.6 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#01-611-522 |
λ/20 |
101.6 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#47-574-522 |
λ/10 |
101.6 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#31-392-522 |
λ/20 |
101.6 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#48-118-522 |
λ/10 |
101.6 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#01-611-533 |
λ/20 |
101.6 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#47-574-533 |
λ/10 |
101.6 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#31-392-533 |
λ/20 |
101.6 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-118-533 |
λ/10 |
101.6 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#01-611-566 |
λ/20 |
101.6 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#47-574-566 |
λ/10 |
101.6 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#31-392-566 |
λ/20 |
101.6 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-118-566 |
λ/10 |
101.6 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#01-611-577 |
λ/20 |
101.6 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#47-574-577 |
λ/10 |
101.6 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#31-392-577 |
λ/20 |
101.6 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#48-118-577 |
λ/10 |
152.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#01-612-522 |
λ/20 |
152.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#47-575-522 |
λ/10 |
152.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#31-393-522 |
λ/20 |
152.4 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#48-119-522 |
λ/10 |
152.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#01-612-533 |
λ/20 |
152.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#47-575-533 |
λ/10 |
152.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#31-393-533 |
λ/20 |
152.4 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#48-119-533 |
λ/10 |
152.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#01-612-566 |
λ/20 |
152.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#47-575-566 |
λ/10 |
152.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#31-393-566 |
λ/20 |
152.4 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#48-119-566 |
λ/10 |
152.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#01-612-577 |
λ/20 |
152.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#47-575-577 |
λ/10 |
152.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#31-393-577 |
λ/20 |
152.4 |
Ravg >98% @ 450 - 2000nm |
Protected Silver (450-10000nm) |
#48-119-577 |
λ/10 |
203.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#31-390-522 |
λ/20 |
203.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#49-048-522 |
λ/10 |
203.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#31-394-522 |
λ/20 |
203.2 |
Ravg >85% @ 400 - 700nm |
Protected Aluminum (400-2000nm) |
#49-049-522 |
λ/10 |
203.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#31-390-533 |
λ/20 |
203.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#49-048-533 |
λ/10 |
203.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#31-394-533 |
λ/20 |
203.2 |
Ravg >95% @ 450 - 650nm |
Enhanced Aluminum (450-650nm) |
#49-049-533 |
λ/10 |
203.2 |
Ravg >96% @ 700 - 2000nm |
Protected Gold (700-10000nm) |
#31-390-566 |
