日本GOYO远心镜头

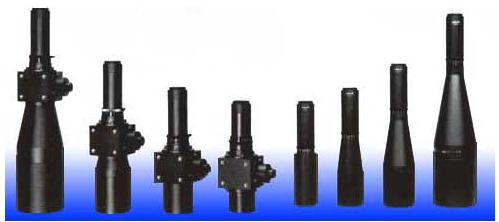

Standard Telecentric Lenses

Item No.

Magni
fication

W.D.
(mm)

Aperture

Depth of Field(mm)

Object size(mm)

Resolution
Power
(obeject)

NA

TV Distortion
(LessThan)

Notes

01T

X0.1

342.1

F4.0-C

33.5

66x88

61μm

0.0055

0.03

Straight

01DT

X0.1

342.1

F4.0-C

33.5

66x88

61μm

0.0055

0.03

Coaxial

02T

X0.2

158

F4.0-C

11

33x44

30μm

0.025

0.03

Straight

02DT

X0.2

158

F4.0-C

11

33x44

30μm

0.025

0.03

Coaxial

03T

X0.3

105

F4.0-C

5

22x29.3

20μm

0.038

0.04

Straight

03DT

X0.3

105

F4.0-C

5

22x29.3

20μm

0.038

0.04

Coaxial

04T

X0.4

78.7

F4.0-C

2.7

16.5x22

15μm

0.050

0.04

Straight

04DT

X0.4

78.7

F4.0-C

2.7

16.5x22

15μm

0.050

0.04

Coaxial

05T

X0.5

62.1

F4.0-C

1.7

13.2x17.6

12μm

0.063

0.02

Straight

05DT

X0.5

62.1

F4.0-C

1.7

13.2x17.6

12μm

0.063

0.02

Coaxial

07T

X0.7

71

F14.4

?0.6

6.6x8.8

13μm

0.025

-0.07

Straight

07DT

X0.7

71

F14.4

?0.6

6.6x8.8

13μm

0.025

-0.07

Coaxial

1T

X1.0

71

F20.0

?0.6

6.6x8.8

13μm

0.025

-0.07

Straight

1DT

X1.0

71

F20.0

?0.6

6.6x8.8

13μm

0.025

-0.07

Coaxial

2T

X2.0

66

F26.3

?0.25

3.3x4.4

10μm

0.038

0.04

Straight

2DT

X2.0

66

F26.3

?0.25

3.3x4.4

10μm

0.038

0.04

Coaxial

4T

X4.0

70

F32.0

?0.1

1.65x2.2

6μm

0.063

0.10

Straight

4DT

X4.0

70

F32.0

?0.1

1.65x2.2

6μm

0.063

0.10

Coaxial

6T

X6.0

70

F48.0

?0.1

1.1x1.47

6μm

0.063

0.15

Straight

6DT

X6.0

70

F48.0

?0.1

1.1x1.47

6μm

0.063

0.15

Coaxial

Item No.

Magni
fication

W.D.
(mm)

Aperture

Depth of Field(mm)

Object size(mm)

Resolution
Power
(obeject)

NA

TV Distortion
(LessThan)

Notes

50NL

x0.5-x1.0

50mm

F2.8-Close

2/3'

Infinity
to 69mm

0.4%(x0.5)%
-0.1%(x1.0)

M=37.5,
P=0.75

85-116mm

7Groups and
9Elements

?

Item No.

Magni
fication

W.D.
(mm)

Aperture

Depth of Field(mm)

Object size(mm)

Resolution
Power
(obeject)

NA

TV Distortion
(LessThan)

Notes

01TMP

X0.1

342

F8-40

33.5

66x88

61μm

0.0055

+0.035

Straight

01TDMP

X0.1

342

F8-40

33.5

66x88

61μm

0.0055

+0.035

Coaxial

02TMP

X0.2

167

F8-40

8.4

33x44

31μm

0.011

+0.012

Straight

02TDMP

X0.2

167

F8-40

8.4

33x44

31μm

0.011

+0.12

Coaxial

03TMP

X0.3

108

F8-40

3.7

22x29

20μm

0.0165

+0.008

Straight

03DTMP

X0.3

108

F8-40

3.7

22x29

20μm

0.0165

+0.008

Coaxial

04TMP

X0.4

78.5

F8-40

2.1

16x22

15μm

0.022

-0.015

Straight

04DTMP

X0.4

78.5

F8-40

2.1

16x22

15μm

0.022

-0.015

Coaxial

05TMP

X0.5

60.7

F8-40

1.34

13x17

12μm

0.0275

-0.028

Straight

05DTMP

X0.5

62.1

F8-40

1.34

13x17

12μm

0.0275

-0.028

Coaxial

Telecentric Lenses for the 1.1 inch Megapixel Cameras

Item No.

Magni
fication

W.D.
(mm)

Aperture

Depth of Field(mm)

Object size(mm)

Resolution
Power
(obeject)

NA

TV Distortion
(LessThan)

Notes

0.15T5MP

X0.15

342

F12-60

20

63x84

54μm

0.0063

+0.035

Straight

0.15DT5MP

X0.15

342

F12-60

20

63x84

54μm

0.0063

+0.035

Coaxial

0.3T5MP

X0.3

167

F12-60

5

31x42

27μm

0.0125

+0.012

Straight

0.3DT5MP

X0.3

167

F12-60

5

31x42

27μm

0.0125

+0.012

Coaxial

0.45T5MP

X0.45

108

F12-60

2.2

21x28

18μm

0.0188

+0.008

Straight

0.45DT5MP

X0.45

108

F12-60

2.2

21x28

18μm

0.0188

+0.008

Coaxial

0.6T5MP

X0.6

78

F12-60

1.3

15x21

13.5μm

0.025

-0.015

Straight

0.6DT5MP

X0.6

78

F12-60

1.3

15x21

13.5μm

0.025

-0.015

Coaxial

0.75T5MP

X0.75

60

F12-60

0.8

12x16

11μm

0.0313

-0.028

Straight

0.75DT5MP

X0.75

60

F12-60

0.8

12x16

11μm

0.0313

-0.028

Coaxial

Object Side Telecentric Lenses for 15.2mm x 15.2mm Megapixel Cameras

Item No.

Magni
fication

W.D.
(mm)

Aperture

Depth of Field(mm)

Object size(mm)

Resolution
Power
(obeject)

NA

TV Distortion
(LessThan)

Notes

1OT152MP

X1.0

65.5

-

0.28

15.2x15.2

5.4μm

0.0063

Coaxial

2OT152MP

X2.0

65

-

0.095

7.6x7.6

3.4μm

0.1

-

Coaxial
