EKSMA Nd：YAG晶体透镜

谐波晶体

用于倍频、三倍频、四次谐波、1064nm谐波产生的非线性晶体，包括：LBO、KTP、DKDP、KDP、BBO。

LBO晶体具有损伤阈值高、走离小、效率高等特点。这些晶体是相对高功率和高重复率调Q或锁模激光器的谐波产生的优良选择。

KTP晶体具有最高的效率，适用于低平均功率或CW激光器应用。这些晶体对温度变化不敏感，并且以急剧聚焦或高度发散的激光束工作。

大口径DKDP晶体用于大光束直径的高能量调Q激光器。

产品

LBO Crystals for SHG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
LBO-401	90°	11.6°	3x3x10 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-402	90°	11.6°	3x3x15 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-301	90°	11.6°	4x4x10 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-302	90°	11.6°	4x4x15 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-303	90°	11.6°	4x4x20 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-501	90°	11.6°	5x5x10 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-503	90°	11.6°	5x5x15 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-502	90°	11.6°	5x5x20 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
LBO-404	90°	0°	3x3x15 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 °C	Type 1
LBO-405	90°	0°	3x3x20 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 °C	Type 1
LBO-409	90°	0°	3x3x30 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 ° C	Type 1
LBO-410	90°	0°	3x3x50 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 ° C	Type 1
LBO-304	90°	0°	4x4x10 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 ° C	Type 1
LBO-305	90°	0°	4x4x15 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 ° C	Type 1
LBO-306	90°	0°	4x4x20 mm	AR/AR@1064+532 nm	NCPM SHG@1064 nm, T=149 ° C	Type 1

KTP Crystals for SHG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
KTP-401	90°	23.5°	3x3x5 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 2
KTP-402	90°	23.5°	3x3x10 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 2
KTP-403	90°	23.5°	4x4x6 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 2
KTP-404	90°	23.5°	7x7x9 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 2

DKDP Crystals for SHG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
DKDP-401	36.5°	45°	15x15x13 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 1
DKDP-402	53.5°	0°	15x15x13 mm	AR/AR@1064+532 nm	SHG@1064 nm	Type 2
DKDP-404	53.5°	0°	12x12x20 mm	AR/AR@1064/1064+532 nm	SHG@1064 nm	Type 2
DKDP-405	53.5°	0°	15x15x20 mm	AR/AR@1064/1064+532 nm	SHG@1064 nm	Type 2

LBO Crystals for THG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
LBO-406	42.2°	90°	3x3x10 mm	AR/AR@ 1064+532/355 nm	THG@1064 nm	Type 2
LBO-407	42.2°	90°	3x3x15 mm	AR/AR@ 1064+532/355 nm	THG@1064 nm	Type 2
LBO-508	42.2°	90°	5x5x15 mm	AR/AR@ 1064+532/355 nm	THG@1064 nm	Type 2

DKDP Crystals for THG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
DKDP-403	59.3°	0°	12x12x20 mm	AR/AR@ 1064+532/355 nm	THG@1064 nm	Type 2
DKDP-406	59.3°	0°	15x15x20 mm	AR/AR@1064+532/355 nm	THG@1064 nm	Type 2

BBO Crystals for 4HG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
BBO-700	47.6°	90°	7x7x6 mm	P/P@532/266 nm	SHG@532 nm	Type 1

KDP Crystals for 4HG@1064 nm

CODE	Θ	Φ	SIZE	COATING	APPLICATION	TYPE
KDP-401	76.5°	45°	12x12x5 mm	AR/AR@532/266 nm	SHG@532 nm	Type 1
KDP-402	76.5°	45°	15x15x7 mm	AR/AR@532/266 nm	SHG@532 nm	Type 1

EKSMA Nd：YAG晶体透镜

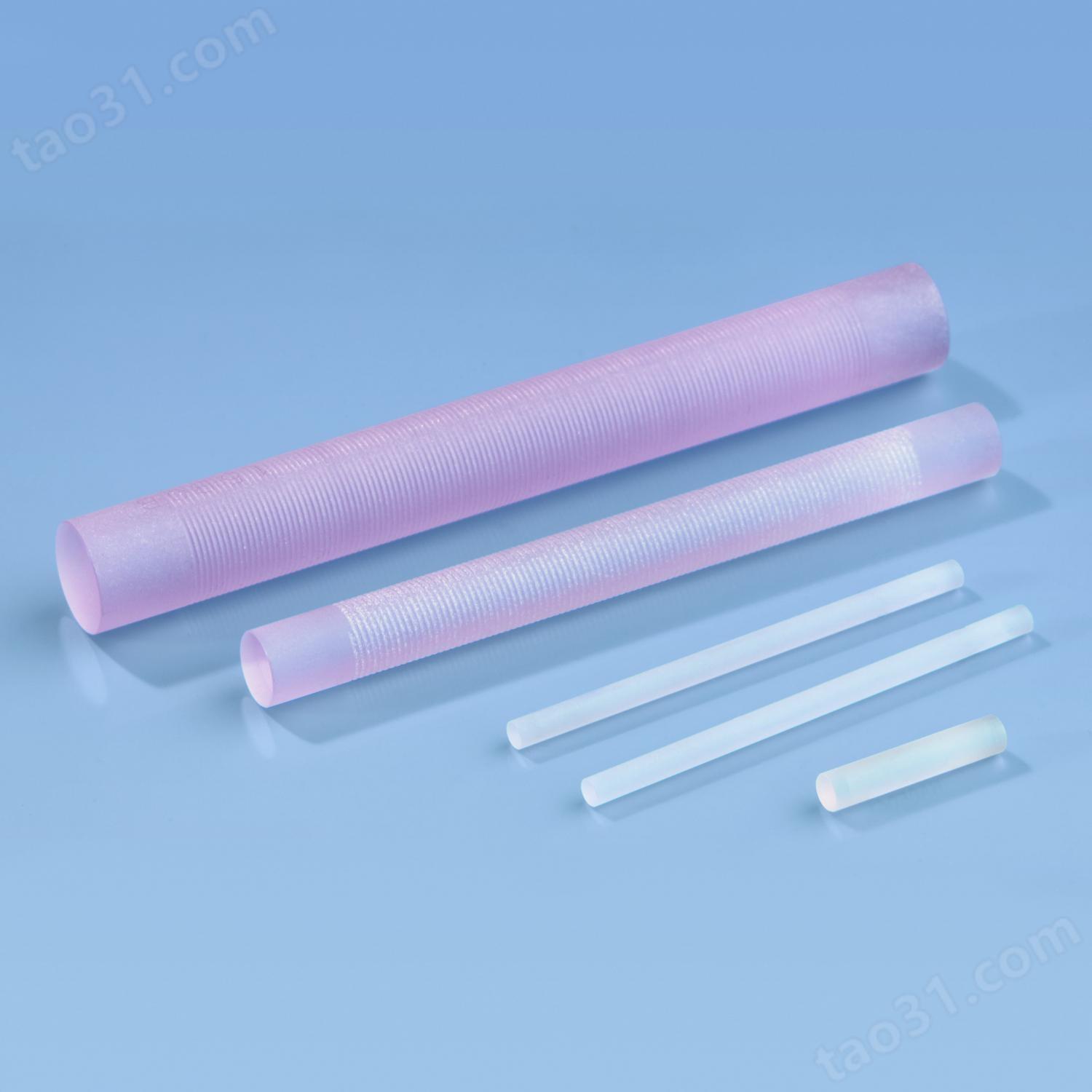

Nd：YAG晶体（标准棒）

标准尺寸的Nd：YAG激光棒，具有脉冲高能量和功率操作的AR涂层。

产品

Standard Nd:YAG rods

CODE	APERTURE	LENGTH	DOPING	WEDGE OF THE ENDS,DEG	COATING
E-Y-3-0.9-A/A	?3mm	53mm	0.9 %	0/0	AR/AR@1064nm
E-Y-3-0.8-A/A	?3mm	65mm	0.8 %	0/0	AR/AR@1064nm
E-Y-3-1.1-A/A	?3mm	65mm	1.1 %	0/0	AR/AR@1064nm
E-Y-4-0.8-A/A	?4mm	65mm	0.8 %	3/3 parallel	AR/AR@1064nm
E-Y-4-1.1-A/A	?4mm	65mm	1.1 %	3/3 parallel	AR/AR@1064nm
E-Y-6.35-1.1-A/A	?6.35mm	85mm	1.1 %	3/3 parallel	AR/AR@1064nm
E-Y-8-1.1-A/A	?8mm	85mm	1.1 %	3/3 parallel	AR/AR@1064nm
E-Y-10-1.1-A/A	?10mm	85mm	1.1 %	3/3 parallel	AR/AR@1064nm
E-Y-12-0.8-A/A	?12mm	100mm	0.8 %	3/3 parallel	AR/AR@1064nm
E-Y-12-1.1-A/A	?12mm	100mm	1.1 %	3/3 parallel	AR/AR@1064nm

Non Standard Nd:YAG rods

CODE	APERTURE	LENGTH	DOPING	WEDGE OF THE ENDS,DEG	COATING
E-Y-4-0.7-A/A	? 4	20	0.7-0.8%	0/0	AR/AR@1064+805nm

规格

掺杂	0.8% or 1.1 %
方向	<111>晶向
表面质量	符合MIL-O-13830A的10-5刮擦/挖掘
表面平整度	λ/10 at 633 nm
平行性	< 10 arcsec
垂直度	<5弧分（普莱诺/普莱诺结束）
直径公差	+0/-0.05 mm
长度公差	+1/-0.5 mm
通光孔径	>孔径的90%
倒角/	0.1 mm at 45 deg
涂层/	双面涂覆AR@1064 nm，R<0.2%，Aoi=0 deg
筒体开槽	所有直径为6.35、8、10、12 mm的棒材，带桶槽
