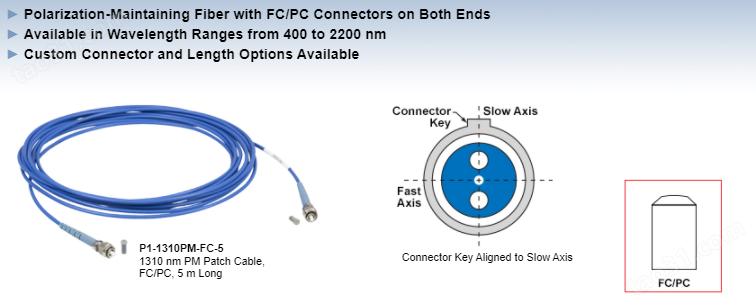

保偏光纤跳线，FC/PC接头

特性

这些保偏光纤跳线的两端都是高质量的窄键陶瓷FC/PC接头。这些跳线备有库存，经过高质量的抛光，典型回波损耗为50 dB。每根跳线都由我们的设备生产制造，且经过单独测试，以在光纤和光纤连接时达到指/定的消光比和插入损耗。每根跳线都包含数据表，总结了测试结果。

每根跳线都带有两个罩在终端的保护帽，防止灰尘或者其它污染物落入插芯端面。我们也单独出售保护FC/PC终端的CAPF塑料光纤保护帽和CAPFM金属螺纹光纤保护帽，还出售匹配套管，以连接接头匹配的光纤。这些匹配套管能够最大/程度地减少背向反射，以确保纤芯恰当对准。

保偏光纤跳线，405 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber? ?

Type

Operating

Wavelength

Cutoff

Wavelength

Extinction

Ratio^a,b

Insertion

Loss^a,b

Mode Field

Diameter^c

Jacket

Length

P1-405B

PM-FC-1

405 nm

PM-S405-XP

(PANDA)

400 - 680 nm

380 ± 20 nm

15 dB (Min)

17 dB (Typ.)

1.50 dB (Max

1.20 dB (Typ.)

3.3 ± 0.5 μm

@ 405 nm

?3 mm Blue

PVCFurcation

Tubing

1 m

P1-405B

PM-FC-2

2 m

P1-405B

PM-FC-5

5 m

P1-405BPM-FC-1	保偏光纤跳线，PANDA，405 nm，FC/PC，1 m
P1-405BPM-FC-2	保偏光纤跳线，PANDA，405 nm，FC/PC，2 m
P1-405BPM-FC-5	保偏光纤跳线，PANDA，405 nm，FC/PC，5 m

保偏光纤跳线，488 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber?

Type

Operating

Wavelength

Cutoff?

Wavelength

Extinction

Ratio^a,b

Insertion

Loss^a,b

Mode Field

Diameter^c

Jacket

Length

P1-488

PM-FC-1

488 nm

PM460-HP

(PANDA)

460 - 700 nm

410 ± 40 nm

18 dB (Min)

20 dB (Typ.)

1.50 dB (Max)

1.20 dB (Typ.)

3.3± 0.5 μm

@ 515 nm

?3 mm Blue

PVCFurcationTubing

1 m

P1-488P

M-FC-2

2 m

P1-488

PM-FC-5

5 m

P1-488PM-FC-1	保偏光纤跳线，PANDA，488 nm，FC/PC，1 m
P1-488PM-FC-2	保偏光纤跳线，PANDA，488 nm，FC/PC，2 m
P1-488PM-FC-5	保偏光纤跳线，PANDA，488 nm，FC/PC，5 m

保偏光纤跳线，630 nm，熊猫型，FC/PC

Item #	Alignment Wavelength	Fiber Type	Operating Wavelength	Cutoff Wavelength	Extinction Ratio^a,b	Insertion Loss^a,b	Mode Field Diameter^c	Jacket	Length
P1-630PM-FC-1	630 nm	PM630-HP?(PANDA)	620 - 850 nm	570 ± 50 nm	20 dB (Min) 22 dB (Typ.)	1.20 dB (Max)? 1.00 dB (Typ.)	4.5 ± 0.5 μm @ 630 nm	?3 mm Blue PVCFurcation Tubing	1 m
P1-630PM-FC-2									2 m
P1-630PM-FC-5									5 m
P1-630PM-FC-10									10 m

P1-630PM-FC-1	保偏光纤跳线，PANDA，630 nm，FC/PC，1 m
P1-630PM-FC-2	保偏光纤跳线，PANDA，630 nm，FC/PC，2 m
P1-630PM-FC-5	保偏光纤跳线，PANDA，630 nm，FC/PC，5 m
P1-630PM-FC-10	保偏光纤跳线，PANDA，630 nm，FC/PC，10 m

保偏光纤跳线，780 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber

Type

Operating

Wavelength

Cutoff

Wavelength

Extincti?

Ratio^a,b

Insertion

Loss^a,b

Mode Field

Diameter^c

Jacket

Length

P1-780

PM-FC-1

780 nm

PM780-HP

(PANDA)

770 - 1100 nm

710 ± 60 nm

20 dB

(Min)

22 dB

(Typ.)

1.00 dB

(Max)

0.70 dB

(Typ.)

5.3± 1.0 μm

@ 850 nm

?3 mm Blue PVCFurcation Tubing

1 m

P1-780

PM-FC-2

2 m

P1-780

PM-FC-5

5 m

P1-780

PM-FC-10

10 m

P1-780PM-FC-1	保偏光纤跳线，PANDA，780 nm，FC/PC，1 m
P1-780PM-FC-2	保偏光纤跳线，PANDA，780 nm，FC/PC，2 m
P1-780PM-FC-5	保偏光纤跳线，PANDA，780 nm，FC/PC，5 m
P1-780PM-FC-10	保偏光纤跳线，PANDA，780 nm，FC/PC，10 m

保偏光纤跳线，980 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber

Type

Operating

Wavelength

Cutoff

Wavelength

Extinction

Ratio^a,b^,c

Insertion

Loss^a,c

Mode Field

Diameter^d

Jacket

Length

P1-980

PM-FC-2

980 nm

PM980-XP

(PANDA)

970 - 1550 nm

920 ± 50 nm

22 dB

(Min)

24 dB

(Typ.)

0.70 dB

(Max)

0.50 dB

(Typ.)

6.6±0.5μm

@ 980 nm

?3 mm Blue

PVCFurcation

Tubing

2
m

P1-980

PM-FC-5

5
m

P1-980PM-FC-2	保偏光纤跳线，PANDA，980 nm，FC/PC，2 m
P1-980PM-FC-5	保偏光纤跳线，PANDA，980 nm，FC/PC，5 m

保偏光纤跳线，1064 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber

Type

Operating

Wavelength

Cutoff

Wavelength

Extinction

Ratio^a,b^,c

Insertion?

Loss^a,c

Mode Field

Diameter^d

Jacket

Length

P1-1064

PM-FC-2

1064 nm

PM980-XP

(PANDA)

970 - 1550 nm

920 ± 50 nm

22 dB

(Min )

24 dB

(Typ.)

0.70 dB

(Max)

0.50 dB

(Typ.)

6.6
± 0.5 μm @ 980 nm

?3 mm Blue

PVCFurcation

Tubing

2 m

P1-1064

PM-FC-5

5 m

P1-1064PM-FC-2	保偏光纤跳线，PANDA，1064 nm，FC/PC，2 m
P1-1064PM-FC-5	保偏光纤跳线，PANDA，1064 nm，FC/PC，5 m

保偏光纤跳线，1310 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber

Type

Operating

Wavelength

Cutoff

Wavelength

Extinction

Ratio^a,b^,c

Insertion

Loss^a,c

Mode Fiel

Diameter^d

Jacket

Length

P1-1310

PM-FC-2

1310 nm

PM1300-XP

(PANDA)

1270 - 1625 nm

1210 ± 60 nm

23 dB

(Min)

25 dB

(Typ.)

0.50 dB

(Max)

0.30 dB

(Typ.)

9.3 ± 0.5 μm
@ 1300 nm

?3 mm Blue

PVCFurcation

Tubing

2 m

P1-131

PM-FC-5

5 m

P1-1310PM-FC-2	保偏光纤跳线，PANDA，1310 nm，FC/PC，2 m
P1-1310PM-FC-5	保偏光纤跳线，PANDA，1310 nm，FC/PC，5 m

保偏光纤跳线，1550 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber

Type

Operating

Wavelength

Cutoff

Wavelength

Extinction

Ratio^a,b^,c

Insertion

Loss^a,c

Mode Field

Diameter^d

Jacket

Length

P1-1550

PM-FC-1

1550 nm

PM1550-XP

(PANDA)

1380 ± 60 nm

23 dB

(Min)

25 dB

(Typ.)

0.50 dB

(Max)

0.30 dB

(Typ.)

10.1 ± 0.4 μm

@ 1550 nm

?3 mm Blue

PVCFurcation

Tubing

1 m

P1-1550

PM-FC-2

2 m

P1-1550

PM-FC-5

5 m

P1-1550PM-FC-1	保偏光纤跳线，PANDA，1550 nm，FC/PC，1 m
P1-1550PM-FC-2	保偏光纤跳线，PANDA，1550 nm，FC/PC，2 m
P1-1550PM-FC-5	保偏光纤跳线，PANDA，1550 nm，FC/PC，5 m

保偏光纤跳线，2000 nm，熊猫型，FC/PC

Item #

Alignment

Wavelength

Fiber

Type

Operating

Wavelength

Cutoff

Wavelength

Extinction

Ratio^a,b

Insertion

Loss^a,b

Mode Fie

Diameter^c

Jacket

Length

P1-2000

PM-FC-2

2000 nm

PM2000

(PANDA)

1720 ± 80 nm

23 dB (Min)

25 dB (Typ.)

0.50 dB (Max)

0.30 dB (Typ.)

8.0 μm @

2200 nm

?3 mm Blue

PVCFurcation

Tubing

2 m

P1-2000PM-FC-2

保偏光纤跳线，PANDA，2000 nm，FC/PC，2 m
