ReflX? 反射物镜
（1）长工作距离，大数值孔径
（2）通过环保认证
（3）带宽宽，色差小
（4）可调焦

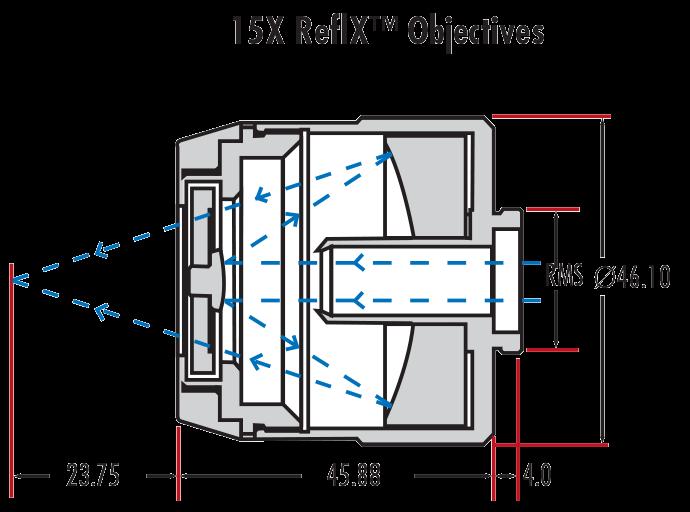

ReflX? 反射物镜经常被用在需要高质量像质的地方，以及在宽带宽上能很好的聚焦的场合。通过选择不同的墨系，Schwarzschild风格的物镜可以展示出近乎衍射极限的性能。通过消除色差和材料吸收，这些元件用在高透射和高分辨率的场合很合适，包括偏振光椭圆率测试仪、照相平板、和半导体检查等场合。
方式 |
放大率 |
涂层 |
数字孔径 NA |
产品号 |
Infinity Corrected |
15X |
UV Enhanced Aluminum |
0.28 |
#58-417 |
Finite Conjugate |
15X |
UV Enhanced Aluminum |
0.28 |
#58-421 |
Infinity Corrected |
15X |
Protected Gold |
0.28 |
#58-418 |
Finite Conjugate |
15X |
Protected Gold |
0.28 |
#58-422 |
Infinity Corrected |
15X |
DUV Enhanced Aluminum |
0.28 |
#59-315 |
Finite Conjugate |
15X |
DUV Enhanced Aluminum |
0.28 |
#59-316 |
Infinity Corrected |
10X |
DUV Enhanced Aluminum |
0.23 |
#89-722 |
Finite Conjugate |
10X |
DUV Enhanced Aluminum |
0.23 |
#89-723 |
Infinity Corrected |
10X |
UV Enhanced Aluminum |
0.23 |
#89-724 |
Finite Conjugate |
10X |
UV Enhanced Aluminum |
0.23 |
#89-725 |
Infinity Corrected |
10X |
Protected Gold |
0.23 |
#89-726 |
Finite Conjugate |
10X |
Protected Gold |
0.23 |
#89-727 |
订购信息：
? |
#58-417 |
#58-421 |
#58-418 |
#58-422 |
方式 |
Infinity Corrected |
Finite Conjugate |
Infinity Corrected |
Finite Conjugate |
放大率 |
15X |
15X |
15X |
15X |
数字孔径 NA |
0.28 |
0.28 |
0.28 |
0.28 |
工作距离 (mm) |
23.75 |
23.75 |
23.75 |
23.75 |
焦距 FL (mm) |
13.3 |
13.3 |
13.3 |
13.3 |
视场, 2/3" 传感器 |
0.59 x 0.44mm |
0.59 x 0.44mm |
0.59 x 0.44mm |
0.59 x 0.44mm |
视场, 1/2" 传感器 |
0.43 x 0.32mm |
0.43 x 0.32mm |
0.43 x 0.32mm |
0.43 x 0.32mm |
传输波前，RMS |
λ/10 |
λ/10 |
λ/10 |
λ/10 |
模糊度 (%) |
27 |
27 |
27 |
27 |
入射瞳孔 (mm) |
7.4 (Diameter) |
7.4 (Diameter) |
7.4 (Diameter) |
7.4 (Diameter) |
Aperture Diameter (mm) |
8.5 |
8.5 |
8.5 |
8.5 |
小型发射镜直径 (mm) |
8.8 |
8.8 |
8.8 |
8.8 |
反射 (%) |
0.85 |
0.85 |
0.94 |
0.94 |
涂层 |
UV Enhanced Aluminum |
UV Enhanced Aluminum |
Protected Gold |
Protected Gold |
涂层规格 |
Ravg?>85% @ 250 - 700nm |
Ravg?>85% @ 250 - 700nm |
Ravg?>97% @ 800 - 2000nm |
Ravg?>97% @ 800 - 2000nm |
安装螺纹 |
RMS |
RMS |
RMS |
RMS |
类型 |
Microscope Objective |
Microscope Objective |
Microscope Objective |
Microscope Objective |
波长范围 (μm) |
0.2 - 11 |
0.2 - 11 |
0.55 - 20 |
0.55 - 20 |
波长范围 (nm) |
200 - 11000 |
200 - 11000 |
550 - 20000 |
550 - 20000 |
生产商 |
EO |
EO |
EO |
EO |
RoHS |
符合标准 |
符合标准 |
符合标准 |
符合标准 |
?
? |
#59-315 |
#59-316 |
方式 |
Infinity Corrected |
Finite Conjugate |
放大率 |
15X |
15X |
数字孔径 NA |
0.28 |
0.28 |
工作距离 (mm) |
23.75 |
23.75 |
焦距 FL (mm) |
13.3 |
13.3 |
视场, 2/3" 传感器 |
0.59 x 0.44mm |
0.59 x 0.44mm |
视场, 1/2" 传感器 |
0.43 x 0.32mm |
0.43 x 0.32mm |
传输波前，RMS |
λ/10 |
λ/10 |
模糊度 (%) |
27 |
27 |
入射瞳孔 (mm) |
7.4 (Diameter) |
7.4 (Diameter) |
Aperture Diameter (mm) |
8.5 |
8.5 |
小型发射镜直径 (mm) |
8.8 |
8.8 |
反射 (%) |
0.88 |
0.88 |
涂层 |
DUV Enhanced Aluminum |
DUV Enhanced Aluminum |

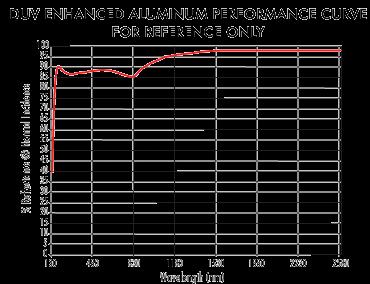

涂层规格 |
Ravg?>88% @ 190nm - 11μm |
Ravg?>88% @ 190nm - 11μm |
安装螺纹 |
RMS |
RMS |
类型 |
Microscope Objective |
Microscope Objective |
波长范围 (μm) |
0.15 - 11 |
0.15 - 11 |
波长范围 (nm) |
||
生产商 |
EO |
EO |
RoHS |
符合标准 |
符合标准 |
?
? |
#89-722 |
#89-723 |
#89-724 |
方式 |
Infinity Corrected |
Finite Conjugate |
Infinity Corrected |
放大率 |
10X |
10X |
10X |
数字孔径 NA |
0.22 |
0.23 |
0.22 |
工作距离 (mm) |
30.56 |
30.56 |
30.56 |
焦距 FL (mm) |
19.3 |
18.4 |
19.3 |
视场, 2/3" 传感器 |
0.88 x 0.66mm |
0.88 x 0.66mm |
0.88 x 0.66mm |
视场, 1/2" 传感器 |
0.64 x 0.48mm |
0.64 x 0.48mm |
0.64 x 0.48mm |
传输波前，RMS |
λ/10 |
λ/10 |
λ/10 |
模糊度 (%) |
27 |
27 |
27 |
入射瞳孔 (mm) |
8.4921 (Diameter) |
8.4641 (Diameter) |
8.4921 (Diameter) |
Aperture Diameter (mm) |
8.6 |
8.6 |
8.6 |
小型发射镜直径 (mm) |
8.9 |
8.9 |
8.9 |
反射 (%) |
0.88 |
0.88 |
0.85 |
涂层 |
DUV Enhanced Aluminum |
DUV Enhanced Aluminum |
UV Enhanced Aluminum |
涂层规格 |
Ravg?>88% @ 190nm - 11μm |
Ravg?>88% @ 190nm - 11μm |
Ravg?>85% @ 250 - 700nm |
安装螺纹 |
RMS |
RMS |
RMS |
类型 |
Microscope Objective |
Microscope Objective |
Microscope Objective |
波长范围 (μm) |
0.15 - 11 |
0.15 - 11 |
0.2 - 11 |
波长范围 (nm) |
200 - 11000 |
||
生产商 |
EO |
EO |
EO |
RoHS |
符合标准 |
符合标准 |
符合标准 |
?
? |
#89-725 |
#89-726 |
#89-727 |
方式 |
Finite Conjugate |
Infinity Corrected |
Finite Conjugate |
放大率 |
10X |
10X |
10X |
数字孔径 NA |
0.23 |
0.22 |
0.23 |
工作距离 (mm) |
30.56 |
30.56 |
30.56 |
焦距 FL (mm) |
18.4 |
19.3 |
18.4 |
视场, 2/3" 传感器 |
0.88 x 0.66mm |
0.88 x 0.66mm |
0.88 x 0.66mm |
视场, 1/2" 传感器 |
0.64 x 0.48mm |
0.64 x 0.48mm |
0.64 x 0.48mm |
传输波前，RMS |
λ/10 |
λ/10 |
λ/10 |
模糊度 (%) |
27 |
27 |
27 |
入射瞳孔 (mm) |
8.4641 (Diameter) |
8.4921 (Diameter) |
8.4641 (Diameter) |
Aperture Diameter (mm) |
8.6 |
8.6 |
8.6 |
小型发射镜直径 (mm) |
8.9 |
8.9 |
8.9 |
反射 (%) |
0.85 |
0.94 |
0.94 |
涂层 |
UV Enhanced Aluminum |
Protected Gold |
Protected Gold |
涂层规格 |
Ravg?>85% @ 250 - 700nm |
Ravg?>97% @ 800 - 2000nm? |
Ravg?>97% @ 800 - 2000nm? |
安装螺纹 |
RMS |
RMS |
RMS |
类型 |
Microscope Objective |
Microscope Objective |
Microscope Objective |
波长范围 (μm) |
0.2 - 11 |
0.55 - 20 |
0.55 - 20 |
波长范围 (nm) |
200 - 11000 |
550 - 20000 |
550 - 20000 |
生产商 |
EO |
EO |
EO |
RoHS |
符合标准 |
符合标准 |
符合标准 |
