Newport Mercury （Hg） Arc Lamps

Newport Mercury （Hg） Arc Lamps

Mercury (Hg) arc lamps are ideal light sources for applications that require high intensity spectral lines emitted in the deep UV to visible light regions. Their unique UV emission spectra make them popular for unique applications that need enhanced UV output such as UV spectroscopy, UV curing and other industrial processes, and environmental and medical applications.

对比	型号	灯类型	灯功率	有效电弧尺寸	近似通量	近似亮度	?
?		Hg	100 W	0.25 x 0.25 mm	2200 lm	1700 cd mm-2	联系Newport
?		Hg	50 W	0.2 x 0.35 mm	1300 lm	900 cd mm-2	联系Newport
?		Hg	200 W	0.6 x 2.2 mm	10000 lm	400 cd mm-2	联系Newport
?		Hg	500 W	1.1 x 4.1 mm	30000 lm	300 cd mm-2	联系Newport
?		Hg	350 W	0.8 x 2.7 mm	18000 lm	500 cd mm-2	联系Newport

Newport Mercury （Hg） Arc Lamps特征

Mercury Lamp Shelf Life

We recommend purchasing replacement Mercury lamps only as needed.
Hg arc lamps do have an unspecified shelf life, which over time can cause the end cap seals to leak and degrade lamp performance. Newport strives to keep Hg bulbs in stock to reduce lead times when ordering a replacement.

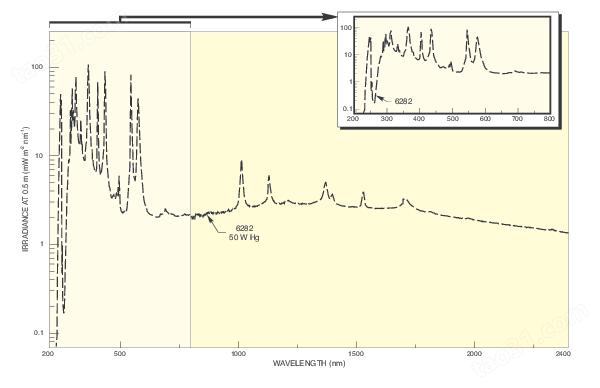

50 W 汞灯

6282 光谱辐照度

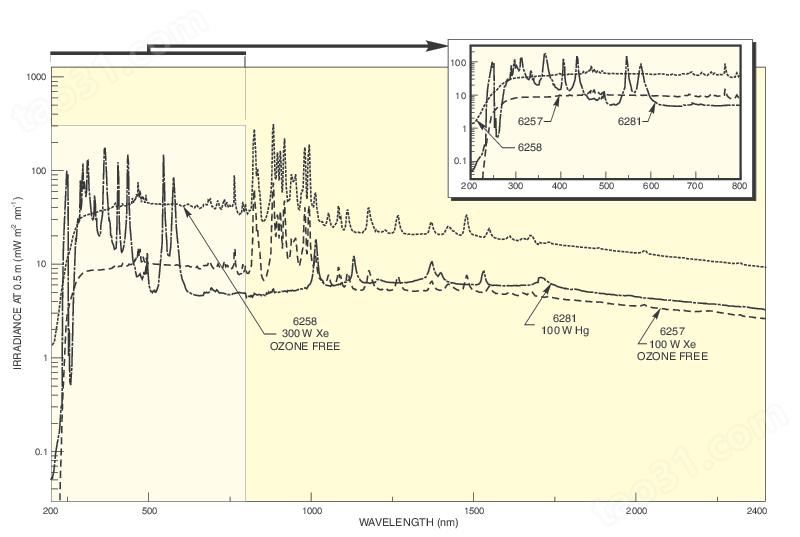

100 W Mercury (Hg)?Lamp

6281 Mercury Lamp Spectral Irradiance

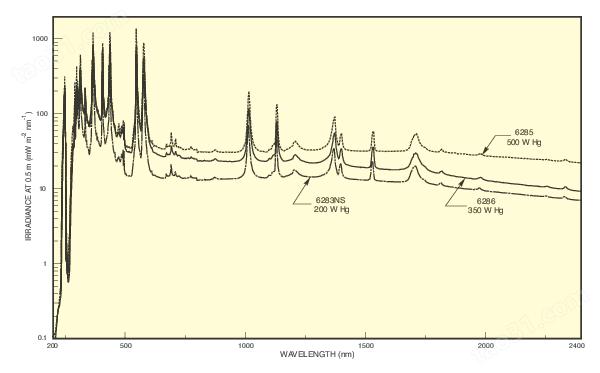

200-500 W 汞灯

6283NS、6285、6286 光谱辐照度

Arc Lamp Safety

Arc lamps may emit dangerous levels of UV radiation depending on their source type. Ensure that only authorized personnel are
in the vicinity of the source, and?wearing the necessary safety equipment such as UV protective eyewear, clothing, and gloves. Lighted UV warning signs, posted outside laboratory doors where UV sources are operating, can prevent accidental exposure. Newport also recommends using an electronic shutter to block the beam when the source is not in use but remains turned on. Alternatively, the beam can be safely contained by using beam tubes or fiber optic cables to deliver
the light to a sample. It is recommended to vent the ozone that is produced by some lamp models to the outside or use an Ozone Eater.

配件

Lamp Socket Adapters

对比	描述
	60013插座适配器，50W 汞灯，用于 Q 系列灯罩
	66144Lamp Socket Adapter, For 6283NS 200 W Mercury Lamp
	66158灯插座适配器，适用于 6282 型 50 W 汞灯
	66161灯插座适配器，350 W 汞灯
	66162灯插座适配器，500 W 汞灯

安全设备

对比	描述
	49123防护手套，尺寸 8，数量 3
	49121防护手套，尺寸 10，数量 3
	66087臭氧转换器?，110/220 VAC，50/60 Hz
	49126UV 安全护目镜，紧密配合罩
