| 型号 |
Online high-speed dispensing machine |
类型 |
桌面型点胶机 |
| X轴行程 |
1000 |
Y轴行程 |
1000 |
| Z轴行程 |
1000 |
最大负载 |
1000 |
| 移动速度 |
1000 |
重复精度 |
0.01 |

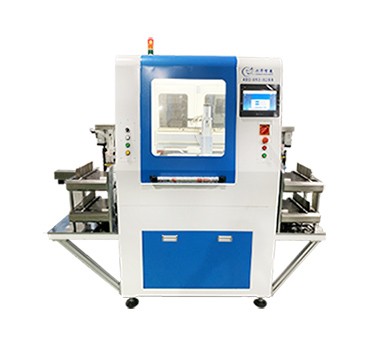

Online high-speed dispensing machine
Application scope: This model is used for online automated operations such as filling, dripping, bonding, pouring, and gluing in LED backlight and product processes; Glue chip packaging,
Circuit board assembly, medical supplies, SMT surface mount dispensing, edge packaging, surface packaging, red dot glue, UV glue, AB glue, epoxy resin, instant glue, transparent paint, waterproof agent, etc; Computer programming and visual alignment.
Product features
1. Online visual fully automatic assembly line operation, reducing the process of workers placing and retrieving materials;
2. The device has communication function and can be connected to the front and rear devices for operation;
3. Windows Chinese operation interface, easy to learn and understand;
4. The large storage memory capacity of the hard disk, and the software has functions such as area array, translation and rotation operations;
5. The glue quantity, thickness, coating speed, dispensing time, and stopping time can all be set as parameters, with stable glue output and no leakage of glue;
6. The function of importing AUTO CAD files accurately simplifies operations;
7. Mark point automatic positioning function ensures accurate dispensing position;
8. Optional pressure bucket glue storage operation, saving glue replacement time;
9. Control the dispensing time with a resolution of 1ms;
10. The weight control system can achieve precise glue quantity control (optional);
11. Laser measurement system, automatic detection of part height (optional);
12. The rubber valve has an automatic soaking function to prevent blockage, and also has a wastewater spraying function. The soaking and dispensing positions/soaking time can be manually set.
