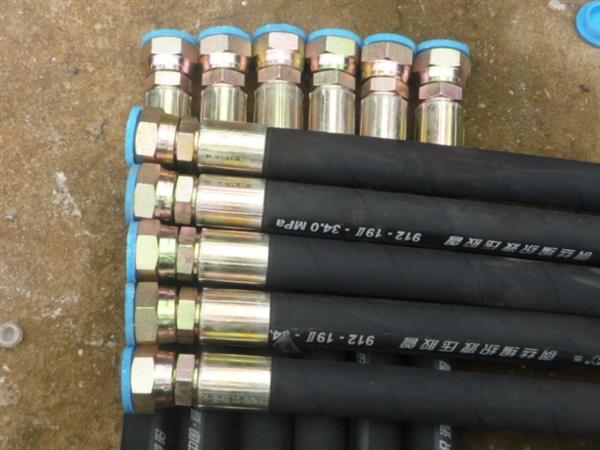

厂家供应钢丝缠绕胶管
| M-ES6 4H (EN856-4SH) 钢丝缠绕液压软管 wire spiral hydraulic rubber hose | |||||||||||||||
| 型 号 Type | 公制 规格 SIZE
| 英制
规格 SIZE | 内径
ID | 增强层
直径 WD | 外径 OD | 大
工作压力 WP | 小
爆破压力 BP | 小弯
曲半径 min BR | 重量
WT | ||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| ES4H-12 | 19 | 3/4 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42 | 6090 | 168 | 24360 | 11.02 | 280 | 1.70 |
| ES4H-16 | 25 | 1 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38 | 5510 | 152 | 22040 | 13.39 | 340 | 2.50 |
| ES4H-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 130 | 18850 | 18.11 | 460 | 3.00 |
| ES4H-24 | 38 | 1 1/2 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29 | 4205 | 116 | 16820 | 22.05 | 560 | 3.60 |
| ES4H-32 | 51 | 2 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25 | 3625 | 100 | 14500 | 27.56 | 700 | 5.00 |
| 结构：软管由一层耐油合成橡胶内胶层、4层交替方向高强度钢丝缠绕层和一层耐油、耐天候合成橡胶外层组成。应用：适用于石油基液压油，温度范围：-40℃ -- +100℃
Recommended for:High pressure hydraulic oil lines for applications with crude oils, fuel oils,lubricating oils and gasoline. Tube：Black, oil resistant,oil resistant synthetic rubber Reinforcement: four plies of spirally wrapped high tensile steel wire. Cover:Black, oil and weather resistant synthetic rubber Temperature: -40℃ -- +100℃(-40℉ -- +212℉) | |||||||||||||||
