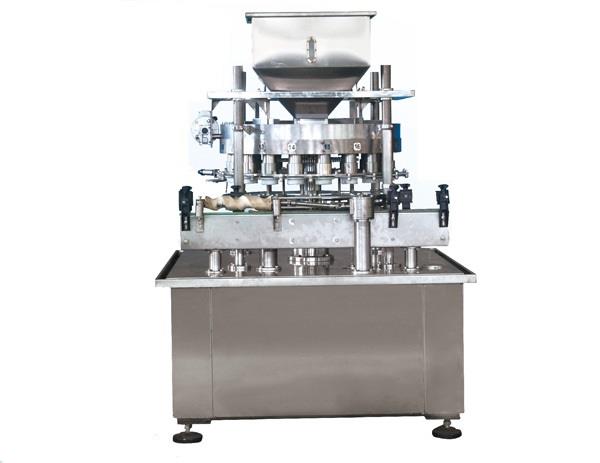

自动罐装、封口机组JQ4B250/JQ6B400

　　自动罐装、封口机组JQ4B250/JQ6B400

　　我公司根据国内大、中型罐头厂、饮料厂实际情况，参照瑞士的封罐、灌装同类产品而设计制造的新一代灌装、封罐组合 机。采用无罐身接触的气动控制自动下盖，采用等液面灌装技术，生产能力为变频调速，95%以上外观材料为的不锈钢，保证了整 机的美观和卫生要求。为提高罐内真空度，可按客户要求配置蒸汽喷射装置。

　　JQ4B250 Automatic Filing and Seaming Unit Set is designed and manufactured based on the advance Canned Food Filing and Seaming technology intheworld,mean whileduring design it adopts therequests andsuggestions from large and middle schedule Canned Food factories in China,whichmakeit to be the most popular machine in Canned FoodManufacturing Industrial.This Filing and Seamingmachine involves pneumatic Lidfeedingsystem,liquid level control for filingsection,andvariablefrequency convertercontrol on the productionspeed,to achieve different productionrequirement.In ordertoimprovethe vacuity,the steam type injection part can beapplied as per customer's demand

　　主要技术参数

　　材料：95%不锈钢，5%碳钢(基础)

　　封口头数：4

　　灌装头数：18

　　生产类型：液体饮料，牛奶，果汁

　　生产能力：80～250罐/分钟

　　适用罐高：70~133mm

　　适用罐径：φ52.3～φ99mm

　　电机功率：7.5KW

　　外形尺寸：3080×1720×2000mm

　　重量：4T

　　Main technical parameters

　　Material:95%Stainless Steel,5%Carbon Steel (the Foundation

　　Seaming Head:4

　　Filling Head:18

　　ProductionType:Liquid -Beverage,Mik,Fruit juice

　　Production Capacity:80~250cans/min(Min,～Max.)

　　Can Height:70-133mm(Specialcustomized height achievable)

　　Can Diameter:φ52.3~99mm(202#~401#)

　　MotorPower:7.5Kw

　　Size:3080x1720x2000mm

　　Weight:4T

　　本机采用常压、定量灌装、封口为二重卷边，旋压成形，变频调速，具有灌装平稳、流量大、速度快、装量准确、无瓶不灌装、

　　料缸液位自动控制。为提高罐内真空度，可按客户要求配置蒸汽喷射装置。

　　JQ6B400 processthe quanttative filing undernormal pressure,which been widely used in thelarge scale non-gas beveragefiling factory.The liquid feeding tank occupy with automaticlevel control,alsothefiling has Can detector,without come in Can the filing does notstart.Inorderto improve thevacuity,the steam type injection part can be applied as percustomer'sdemand

　　主要技术参数

　　材料：95%不锈钢，5%碳钢(基础)

　　封口头数：6

　　灌装头数：36

　　生产类型：无气饮料、奶类饮料

　　生产能力：300～400罐/分钟

　　适用罐高：60~133mm

　　适用罐径：φ52.3～φ99mm

　　电机功率：7.5kw

　　外形尺寸：4000×2000×2400mm

　　重量：6.5T

　　Main technical parameters

　　Material:95%StainlessSteel,5%CarbonSteel (the Foundation)

　　Seaming Head:6

　　Filling Head:36

　　Production Type:non-gas beverage,milk drinks

　　Production Capacity:300~400cans/min

　　Can Height:60-133mm

　　Can Diameter:φ52.3-99mm (202#~401#)

　　Motor Power:7.5Kw

　　Size:4000x2000×2400mm

　　Weight:6.5T
