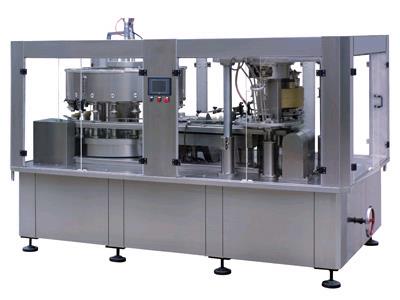

自动罐装、封口机JQ4b250

　　自动罐装、封口机JQ4b250

　　用 我公司根据国内大、中型罐头厂、饮料厂实际情况，参照瑞士的封罐、灌装同类产品而设计制造的新一代灌装、封罐组合 机。采用无罐身接触的气动控制自动下盖，采用等液面灌装技术，生产能力为变频调速，95%以上外观材料为的不锈钢，保证了整 机的美观和卫生要求。为提高罐内真空度，可按客户要求配置蒸汽喷射装置。

　　JQ4B250 Automatic Filing and Seaming Unit Set is designed and manufactured based on the advance Canned Food Filing and Seaming technologyin theworld,meanwhile during design it adopts therequests and suggestionsfromlarge and mile schedule Canned Food factoriesin China,which makeit to be the mostpopular machineinCannedFood Manufacturing Industrial.This Filingand Seamingmachineinvolvespneumatic Lid feeding system,liquid level control for flingsection,and variablefrequency converter control on the production speed,toachieve different production requirement.In order to improvethe vacuity,the steam typeinjection part can beapplied as per customer's demand

　　主要技术参数

　　材料：95%不锈钢，5%碳钢(基础)

　　封口头数：4

　　灌装头数：18

　　生产类型：液体饮料，牛奶，果汁

　　生产能力：80～250罐/分钟

　　适用罐高：70~133mm

　　适用罐径：φ52.3～φ99mm

　　电机功率：7.5KW

　　外形尺寸：3080×1720×2000mm

　　重量：4T

　　Main technical parameters

　　Material:95%Stainless Steel,5%Carbon Steel (the Foundation

　　Seaming Head:4

　　Filling Head:18

　　ProductionType:Liquid -Beverage,Mik,Fruit juice

　　Production Capacity:80~250cans/min(Min,～Max.)

　　Can Height:70-133mm(Specialcustomized height achievable)

　　Can Diameter:φ52.3~99mm(202#~401#)

　　MotorPower:7.5Kw

　　Size:3080x1720x2000mm

　　Weight:4T
