| 型号 |
TD1LVCSF |
别名 |
点火变压器，高压包，点火器，变压器 |
| 类型 |
点火变压器 |
加工定制 |
否 |
| 外形尺寸 |
见订货信息 |
产地 |
意大利 |
| 厂家 |
BRAHMA |
|

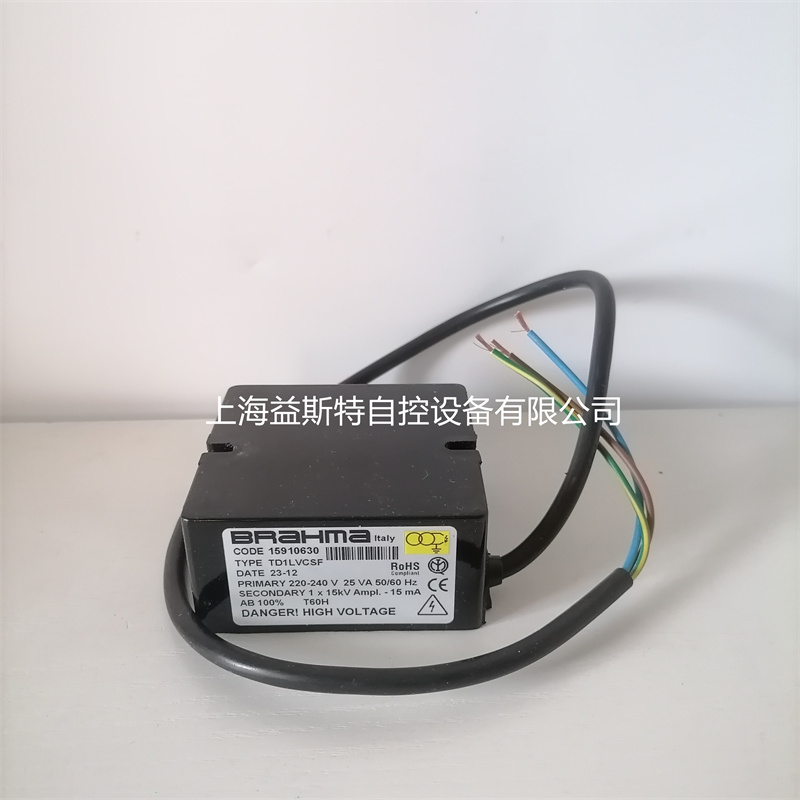

BRAHMA点火变压器TD1LVCSF点火高压包
意大利BRAHMA品牌
TD...A系列燃烧器专用点火变压器
1*15KV单级
品牌：Brahma（布拉玛）
型号：TD1LVCSF
产地：意大利--上海益斯特
参数：
| 主电压 | 220/240V 50/60Hz |
| 110/120V 50/60Hz
| |
| 运行温度 | -10oC...+60oC |
| 丝 | F1A
250V
|
| 运行循环 | 50%在2分钟内 |
| 保护等级 | IP00 |
| 重量 | 360g |
Keeping the technical features of the TC…A
series unchanged, this new series of electronic ignition transformers has more
reduced overall dimensions and is particularly suitable to equip forced draught
burners for gas and light or heavy oil, for civil and industrial applications.
The working principle is due to the generation of high frequency voltage by
means of an electronic oscillator; the resulting voltage is then increased by
using a winding with ferrite nucleus. In this way it is possible to reach output
voltage values up to 15 kV.
