| 型号 |
GDZ93x82-2.2 |
适用机床 |
皆可 |
| 额定转速 |
18000 |
锥孔摆阵 |
0.002 |

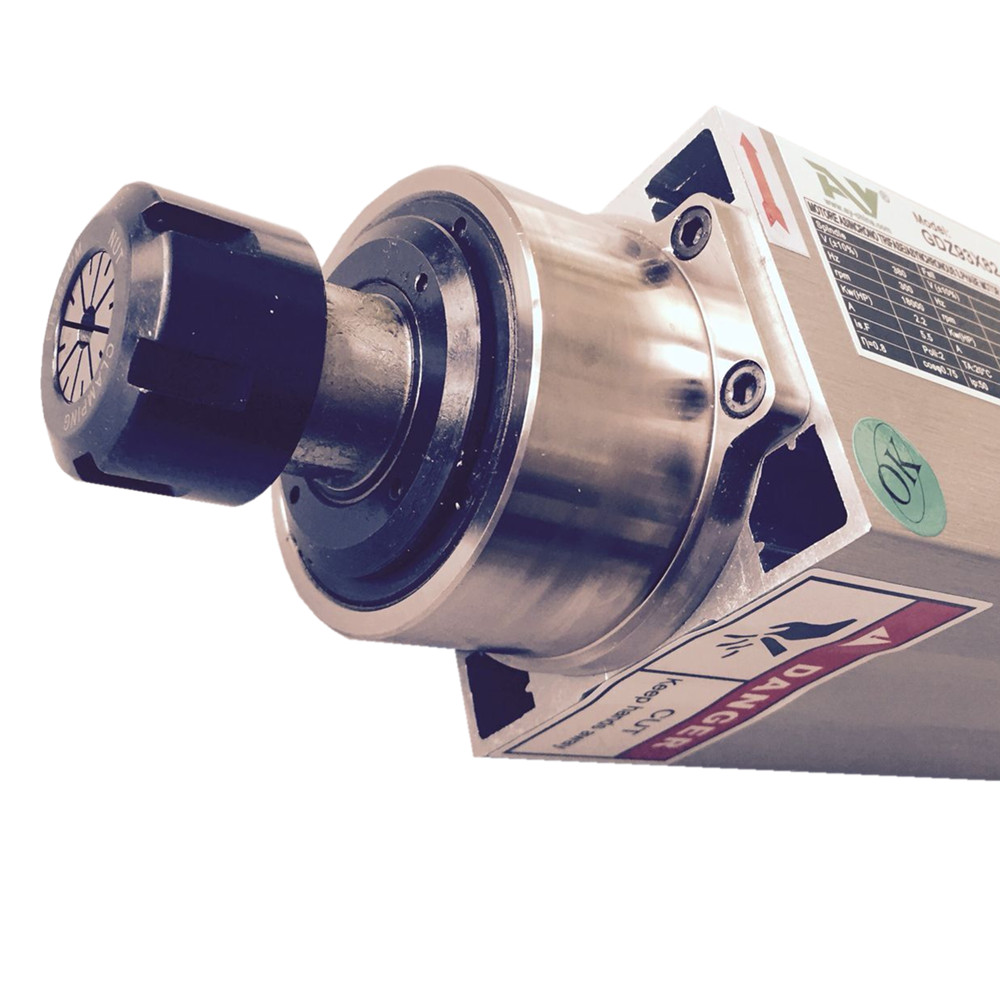

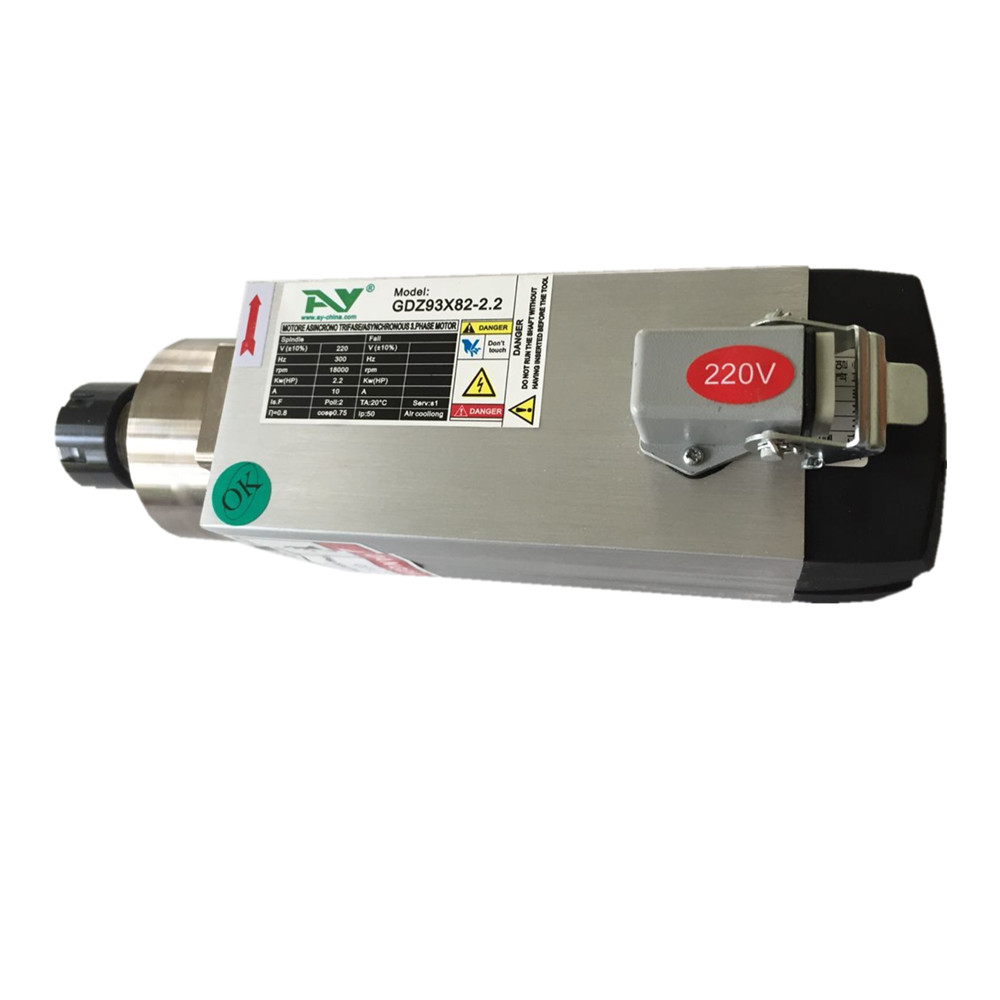

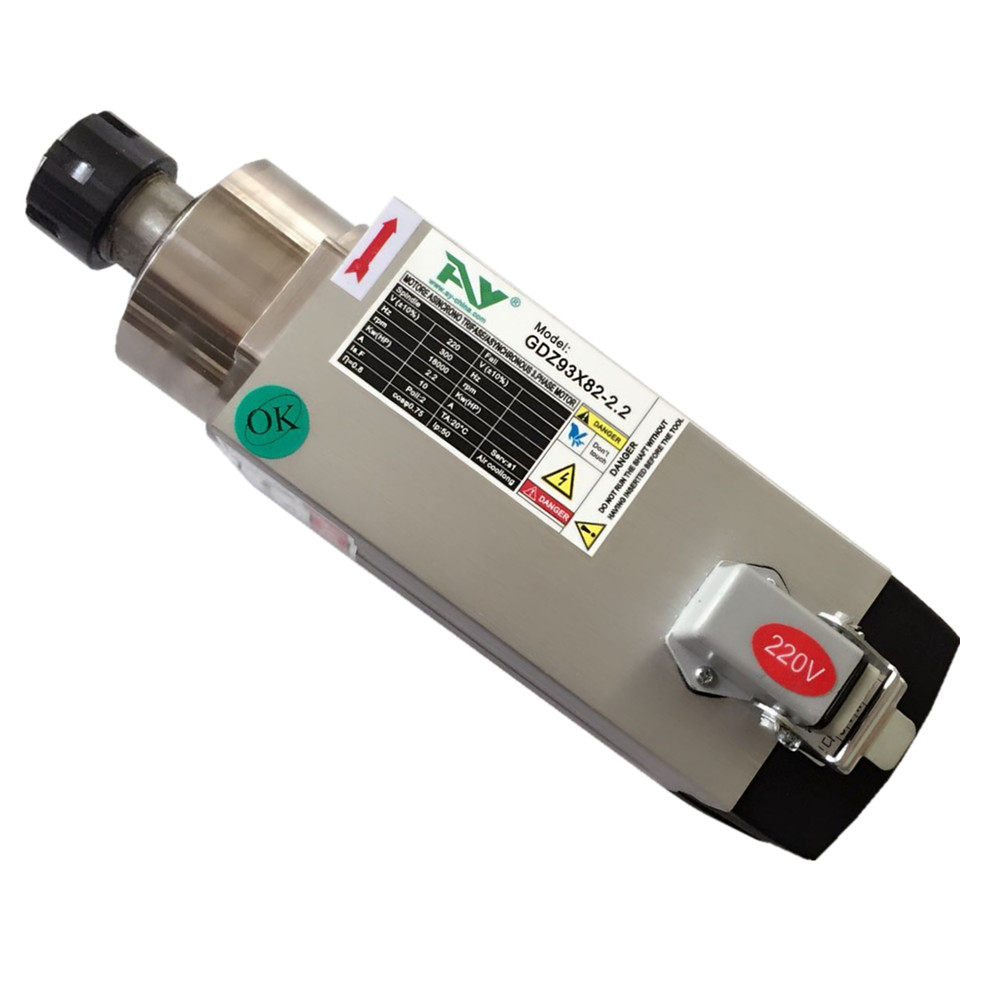

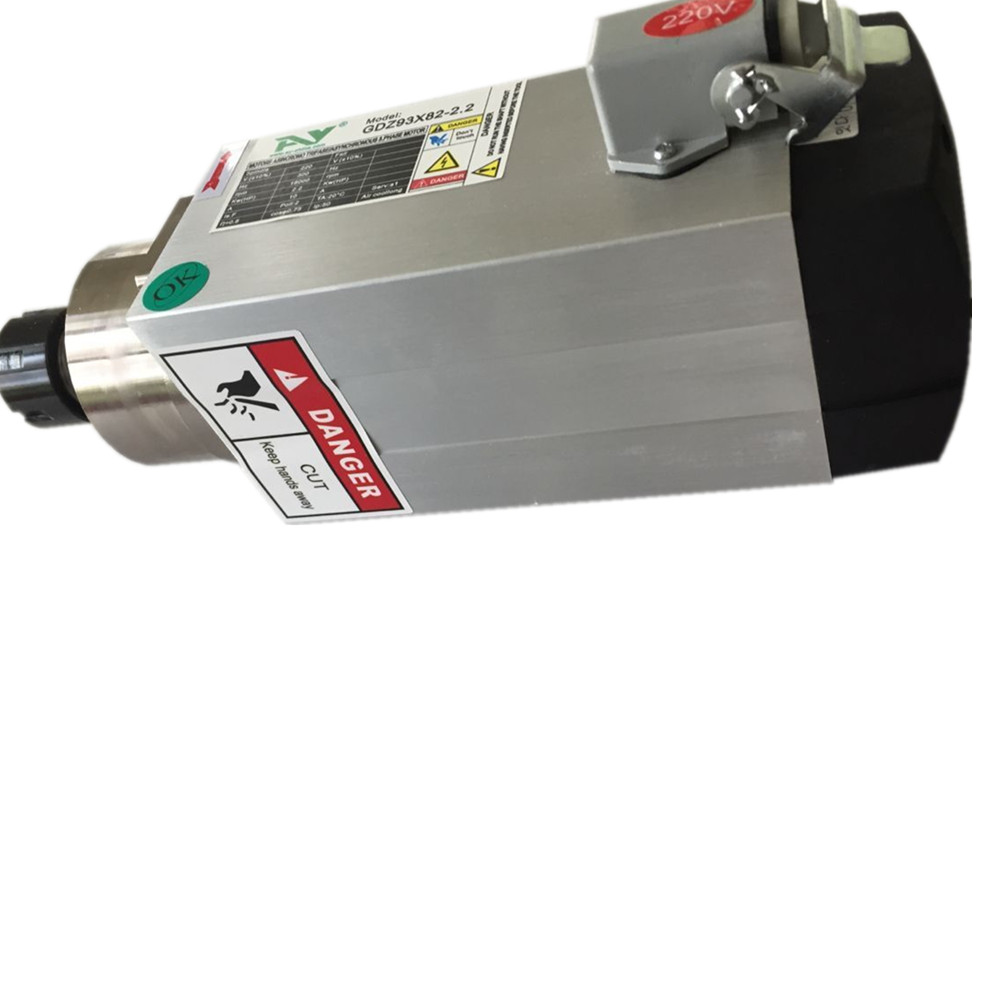

型号Spindle type: GDZ93X82-2.2
1.转速Rev(rpm):18000rpm
2.功率Power(kw):2.2
3.电压Voltage(V):220/380V
4.电流Current(A):10/5.5A
5.频率Frequency(HZ):300
6.风冷Cooledby air
7.轴承型号Bearing type:2×7006C P4
2×7002C P4
8.油脂润滑Lubricate：grease
9.夹帽Collet(mm):ER25
10.保修Repair time:bearing(half year),spindle(one year)
11.长度/宽度/高度Length/width/hight(mm):248/93/82
12.balance test result(ms*s):2.4rpm<5
13.L(mm):248,L1(mm):31.5,L2(mm):63,L3(mm):35,
14.重量weight（kg）:8.0KG
15.品牌Brand:韩国AY
