| 品牌 |
英格索兰 |
型号 |

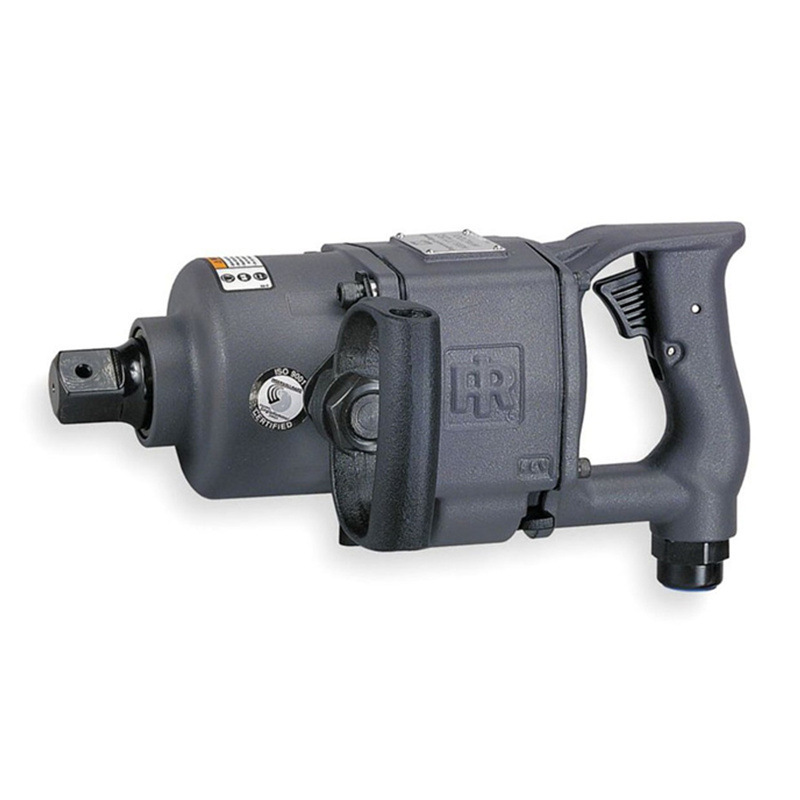

2934A2气动扳手 |
| 类型 |
气动冲击扳手 |
产地 |
美国 |
| 厂家 |
英格索兰 |
|
CONFIGURATIONACTUATIONDRIVE SIZEDRIVE TYPEFORWARD TORQUE ()MAX REVERSE TORQUE ()MAX REVERSE TORQUE (NM)BLOWS PER MINUTEFREE SPEED (RPM)IMPACTING SOUND LEVEL DB(A) -- (/POWER)FREE SPEED SOUND LEVEL DB(A) -- CAGI/ANSI S12.41 (/POWER)VIBRATION LEVEL M/S2 (K) (LBS) (KG) (IN) (MM)AIR INLETMIN HOSE SIZE (IN)MIN HOSE SIZE (MM)AIR CONSUMPTION @ LOAD (CFM)AIR CONSUMPTION @ LOAD (L/MIN)PSIBAR
| 2934A2 | D-Handle | Outside Trigger | 1 in. | , Thru-Hole | 1500 | 2034 | 750 | 6600 | N/A | 94.9 / 105.9 | 18.8 (3.7) | 18.5 | 8.39 | 11.25 | 286 | 1/2 in. | 3/4 | 19 | 47 | 1331 | 90 | 6.2 | |
| 2934B2 | D-Handle | Inside Trigger | 1 in. | , Thru-Hole | 1500 | 2034 | 750 | 6600 | N/A | 94.9 / 105.9 | 18.8 (3.7) | 18.5 | 8.39 | 11.25 | 286 | 1/2 in. | 3/4 | 19 | 47 | 1331 | 90 | 6.2 | |
| 2934B9 | D-Handle | Inside Trigger | 1 in. | , Thru-Hole at 90 deg. | 750 | 1017 | 780 | 5300 | N/A | 93.2 / 104.2 | 30.8 (10.2) | 35.75 | 16.2 | 18.63 | 473 | 1/2 in. | 3/4 | 19 | 47 | 1331 | 90 | 6.2 | |
| 2934P2 | Pistol | Trigger | 1 in. | , Thru-Hole | 1500 | 2034 | 825 | 5300 | 94.5 / 105.5 | 89.8 / 100.8 | 13.4 (4.7) | 20 | 9.07 | 8.63 | 219 | 1/2 in. | 3/4 | 19 | 47 | 1331 | 90 | 6.2 |
