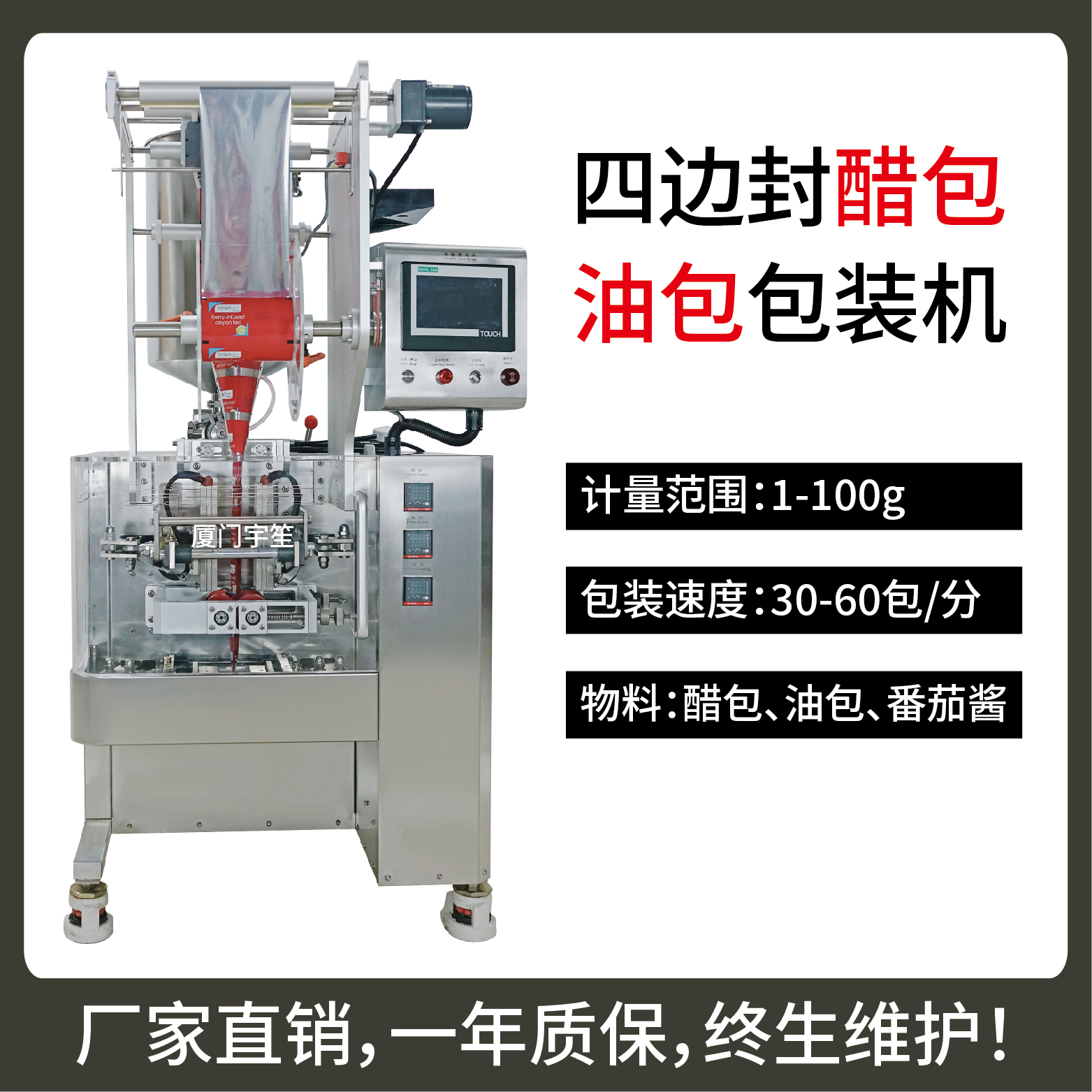

四边封酱液体自动包装机 番茄酱包装机

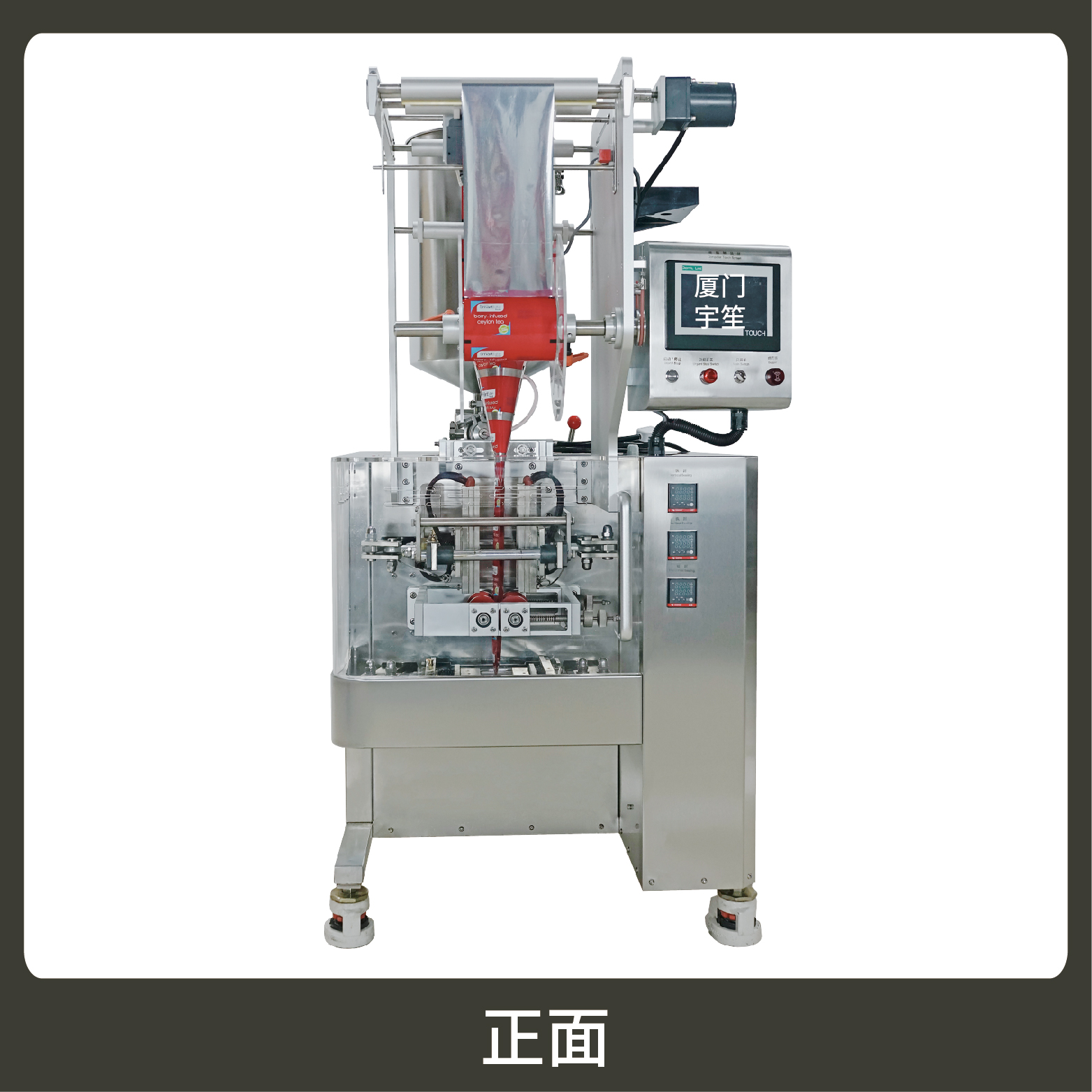

　　YS-61XCJ四边封酱体包装机

　　特点：

　　１、适用于食品、医药、化工、化妆品行业中液体、酱料物品的计量包装。

　　The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.

　　２、可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。

　　All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

　　３、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。

　　The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

　　４、包装材料：聚/聚，铝箔/聚，涤纶/镀铝/聚，尼龙/增强型聚，纸/聚等。

　　Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,

　　 Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

　　封口方式 Sealing Type

　　三边封口 四边封口 背封封口

　　Three sides Sealing/ Four sides Sealing/ Back sealing

　　技术参数

　　Technical Parameters

　　计量范围：1 - 100 g

　　Measuring Scope

　　制袋尺寸：长( L ) : 30 - 170 mm

　　Bag Size 宽( W ) : 30 - 130 mm

　　包装速度：30 - 60 bags/min

　　Packing Speed

　　外型尺寸：759*1100*1508 mm

　　Dimension ( L * W * H )

　　整机重量：235 kg

　　Weight

　　总 功 率：220V / 50-60Hz / 1.4kw

　　Total Power
