FT-300A2材料电阻率测试仪薄膜按键中文或英文显示界面

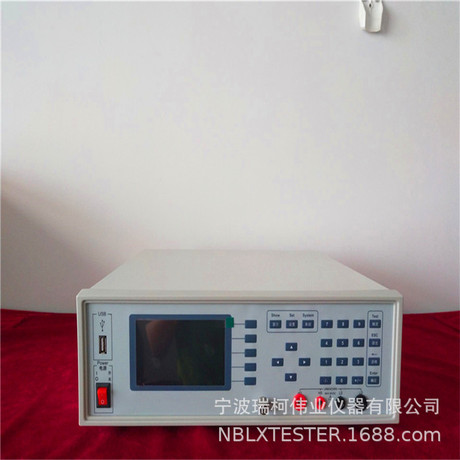

FT-300A导体材料电阻率测试仪
FT-300A Conductor material resistivity tester
一.概述Over：
采用四端测量法适用于生产企业、高等院校、科研部门，实验室；是检验和分析导体材料和半导体材料质量的工具。可配置不同测量装置测试不同类型材料之电阻率。液晶显示，温度补偿功能，自动量程，自动测量电阻，电阻率，电导率数据。恒流源输出；选配：PC软件过程数据处理和标准电阻校准仪器，薄膜按键中文或英文两种语言界面选择
二.规格及型号specifications and models
|
|
FT-300A1
|
FT-300A2
|
FT-300A3
|
FT-300A4
|
|
电阻Resistance
|
10-7～2×107Ω
|
10-6～2×107Ω
|
10-5～2×106Ω
|
10-4～2×105Ω
|
|
2.电阻率范围Resistivity range
|
10-8～2×108Ω-cm
|
10-7～2×108Ω-cm
|
10-6～2×107Ω-cm
|
10-2～2×107Ω-cm
|
|
3.电导率Conductivity
|
5×10-8～108s/cm
|
5×10-8～107s/cm
|
5×10-7～106s/cm
|
5×10-7～102s/cm
|
|
4.测试电流范围Test current range
|
1μA，10μA，100μA，1mA，10mA，1000mA
|
1μA，10μA，100μA，1mA，10mA
| ||
|
5.测量电压量程 Measuring voltage range
|
测量电压量程/ Measuring voltage range：2mV 20mV 200mV 2V 测量精度:±（0.1%读数）/ Measuring accuracy±0.1% 分辨率/ Resolution： 0.1uV 1uV 10uV 100uV
| |||
|
6.电流精度Current
|
±0.1%读数accuracy
|
±0.2%读数accuracy
|
±0.2%读数accuracy
|
±0.3%读数accuracy
|
|
7.电阻精度Resistance
|
≤0.3% accuracy
|
≤0.3% accuracy
|
≤0.3% accuracy
|
≤0.5% accuracy
|
|
8.显示读数Display
|
液晶显示：电阻值、电阻率、电导率值、温度、单位自动换算、横截面、高度、电流、电压等 LCD: resistance. resistivity. conductivity. temperature. automatic unit conversion. cross section. height. current. voltage. etc.
| |||
|
9.测试方式method
|
四端测量法Four-terminal measurement method
| |||
|
10.测量装置（治具）Measuring device (fixture)
|
选购Choose to buy 1.标准方体和圆柱体测量装置Standard cube and cylinder measuring device：测试行程：L70mm*W：60mm 2.定制治具Fixture customized.
| |||
|
11.工作电源Working power
|
AC 220V±10%.50Hz功 耗/ Power consumption：<30WH
| |||
|
12.主机外形尺寸
|
约330mm*350mm*120mm Overall dimensions
| |||
|
13.净重量weight
|
约6kgNet weight
| |||
|
14. Option to purchase
|
1.标准校准电阻1-5个；2.PC软件一套；3.电脑和打印机依据客户要求配置；4.计量证书1份 1 standard calibration resistor 1-5pcs; 2.PC software a set; 3 Computer and printer are configured according to customer requirements; 4 Measurement certificate 1pcs
| |||
