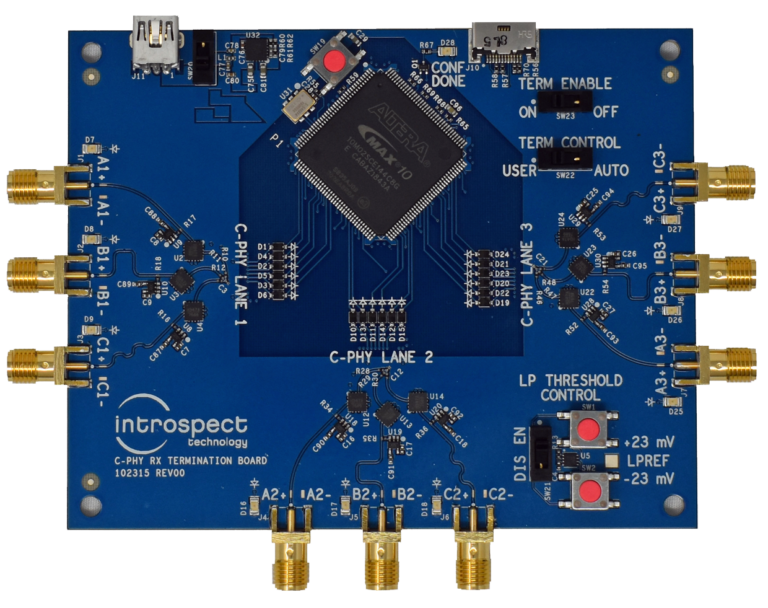

Introspect MIPI C-PHY RTB测试端板

　　MIPI C-PHY RTB测试端板（REFERENCE TERMINATION BOARD）

　　MIPI C-PHY RTB测试端板，MIPI C-PHY RTB测试夹具，C-PHY REFERENCE TERMINATION BOARD

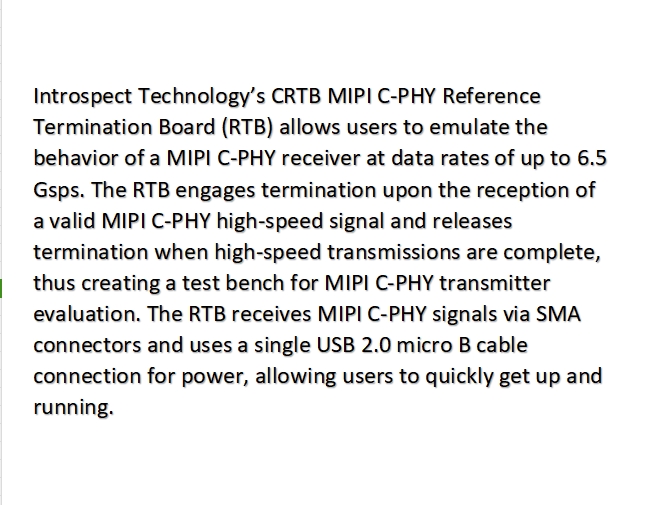

　　Introspect Technology’s CRTB MIPI C-PHY Reference Termination Board (RTB) allows users to emulate the behavior of a MIPI C-PHY receiver at data rates of up to 6.5 Gsps.

　　The RTB engages termination upon the reception of a valid MIPI C-PHY high-speed signal and releases termination when high-speed transmissions are complete, thus creating a test bench for MIPI C-PHY transmitter evaluation.

　　The RTB receives MIPI C-PHY signals via SMA connectors and uses a single USB 2.0 micro B cable connection for power, allowing users to quickly get up and running.
