| 型号 |
FM-7S~FM-19SS |
杆径 |
内径10到100 |
| 厂家 |
天津一洋五金有限公司 |
|

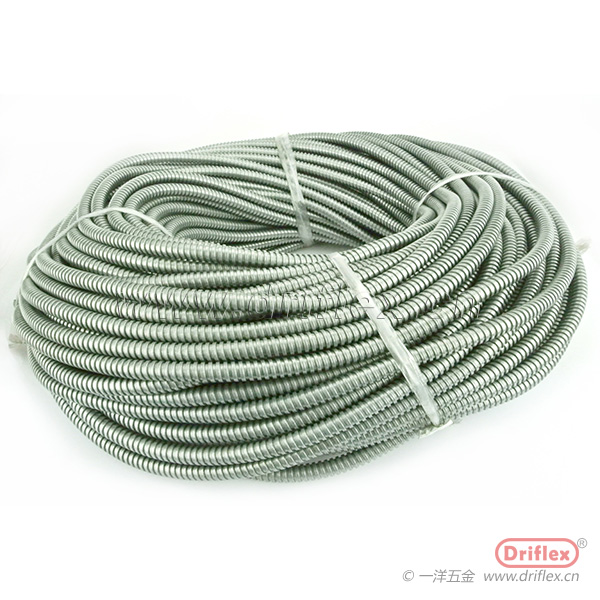

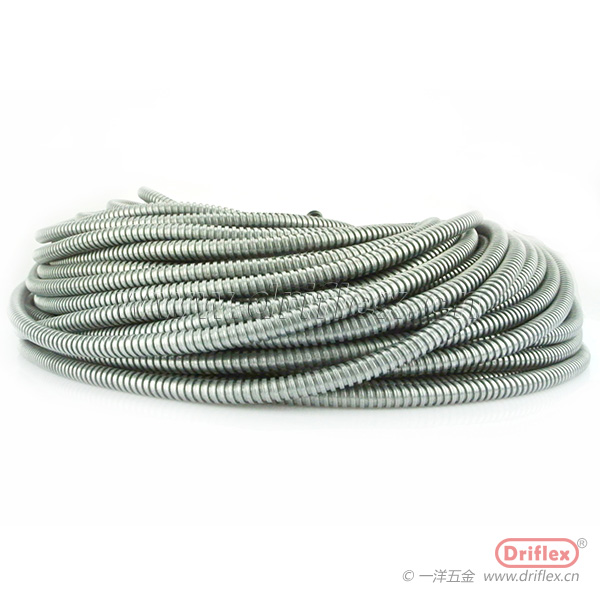

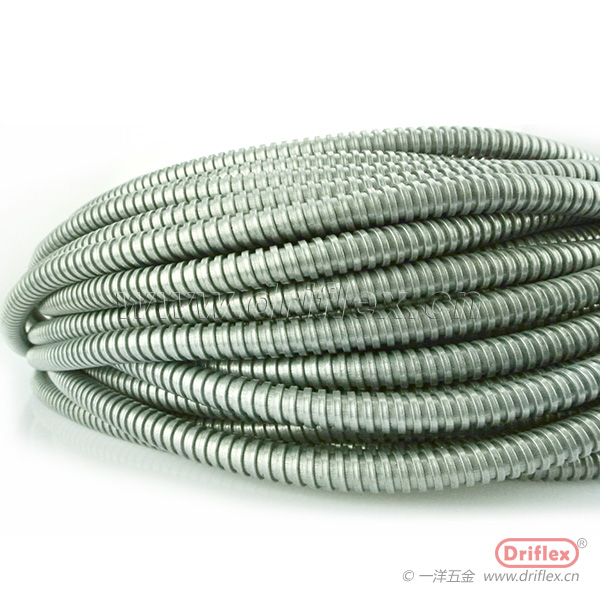

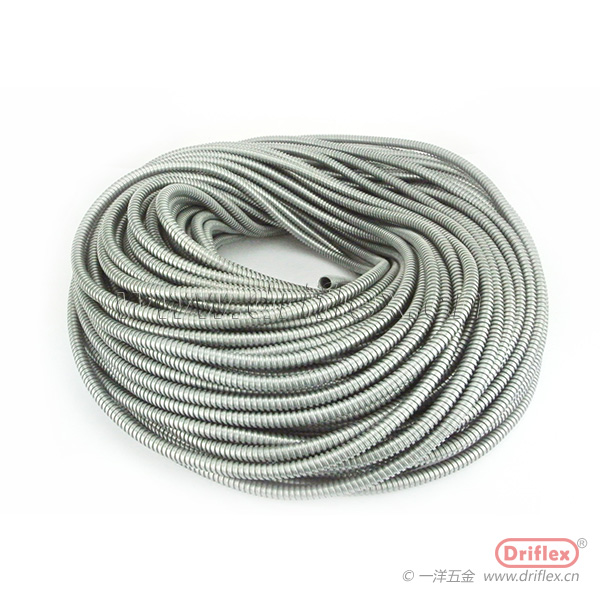

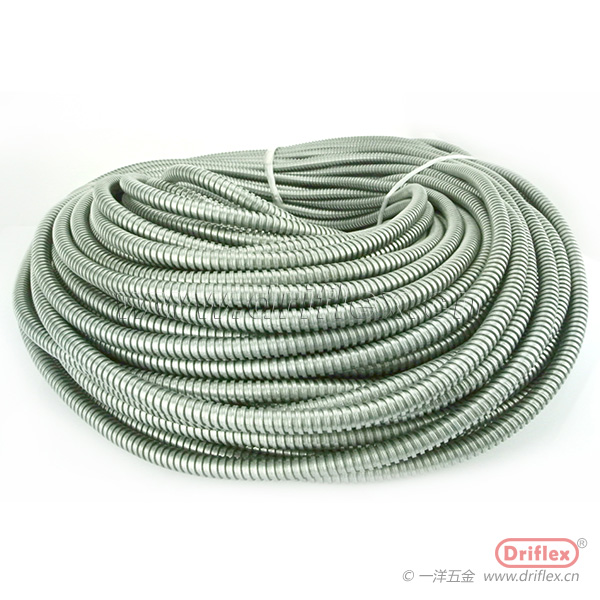

镀锌钢带单勾软管
model: s-12
deion:
镀锌钢带制成,结构牢固,绝缘性能和防水性能。挠性好，高抗拉、抗破环性强、抗疲劳性能高。 耐高温、耐冲击、耐腐蚀强，可抵抗不当扭转损坏等特点。
| part no | normial size | inner diametermm | outside diametermm | o.d after pvc coated | length of each roll | |||
| interlocked | squarelocked | m | ||||||
| s-10 | 3/8" | 12.5 | 15.7 | 18.0 | 16.6 | 50 | ||
| s-11 | 1/2" | 15.7 | 19.1 | 21.3 | 20.0 | 50 | ||
| s-12 | 3/4" | 20.8 | 24.3 | 26.7 | 25.5 | 50 | ||
| s-13 | 1" | 26.0 | 30.0 | 33.2 | 31.6 | 30 | ||
| s-14 | 1-1/4" | 35.0 | 40.0 | 42.2 | 42.0 | 30 | ||
| s-15 | 1-1/2" | 40.0 | 45.0 | 48.0 | 47.0 | 20 | ||
| s-16 | 2" | 51.0 | 56.0 | 59.6 | 59.0 | 10 | ||
