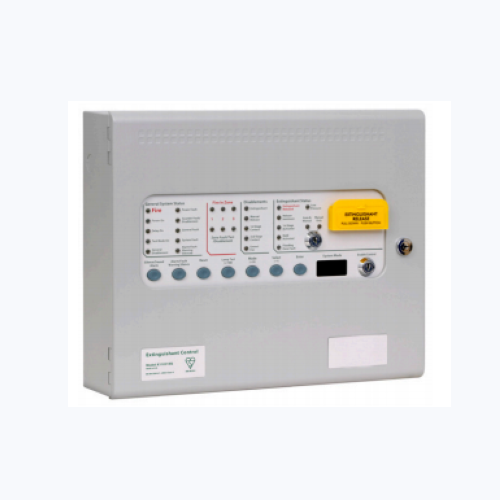

气体灭火控制器K11031M2

　　气体灭火控制器k11031m2

　　sigma xt

　　extinguishant control panel

　　急停按钮k91000m10 启动按钮k911110m8

　　features

　　any single zone or any combinations of zones can be

　　configured to release

　　configurable first stage sounder delays

　　configurable detection delays

　　zero time delay upon manual release option

　　compatible with i.s. barriers

　　non-latching zone input option to receive signals from

　　other systems such as aspirating equipment

　　countdown timer shows time remaining until release

　　supports up to seven, four-wire status indicators

　　configurable extinguishant delays up to 60

　　seconds in 5 second steps

　　configurable extinguishant duration up to 5

　　minutes in 5 second steps

　　supports up to seven, four wire status indicators

　　built in extract fan control

　　approved and certified to en12094-1, en54-2

　　and en54-4

　　ul and fm approved version also available

　　deion

　　the industry leading sigma xt extinguishant

　　releasing panel, installed extensively in

　　thousands of premises globally, offers

　　outstanding value and performance for all

　　small to medium fixed firefighting installations.

　　with three detection zones as standard,

　　extinguishant release can be configured to

　　activate from any combination of detection

　　zone inputs.

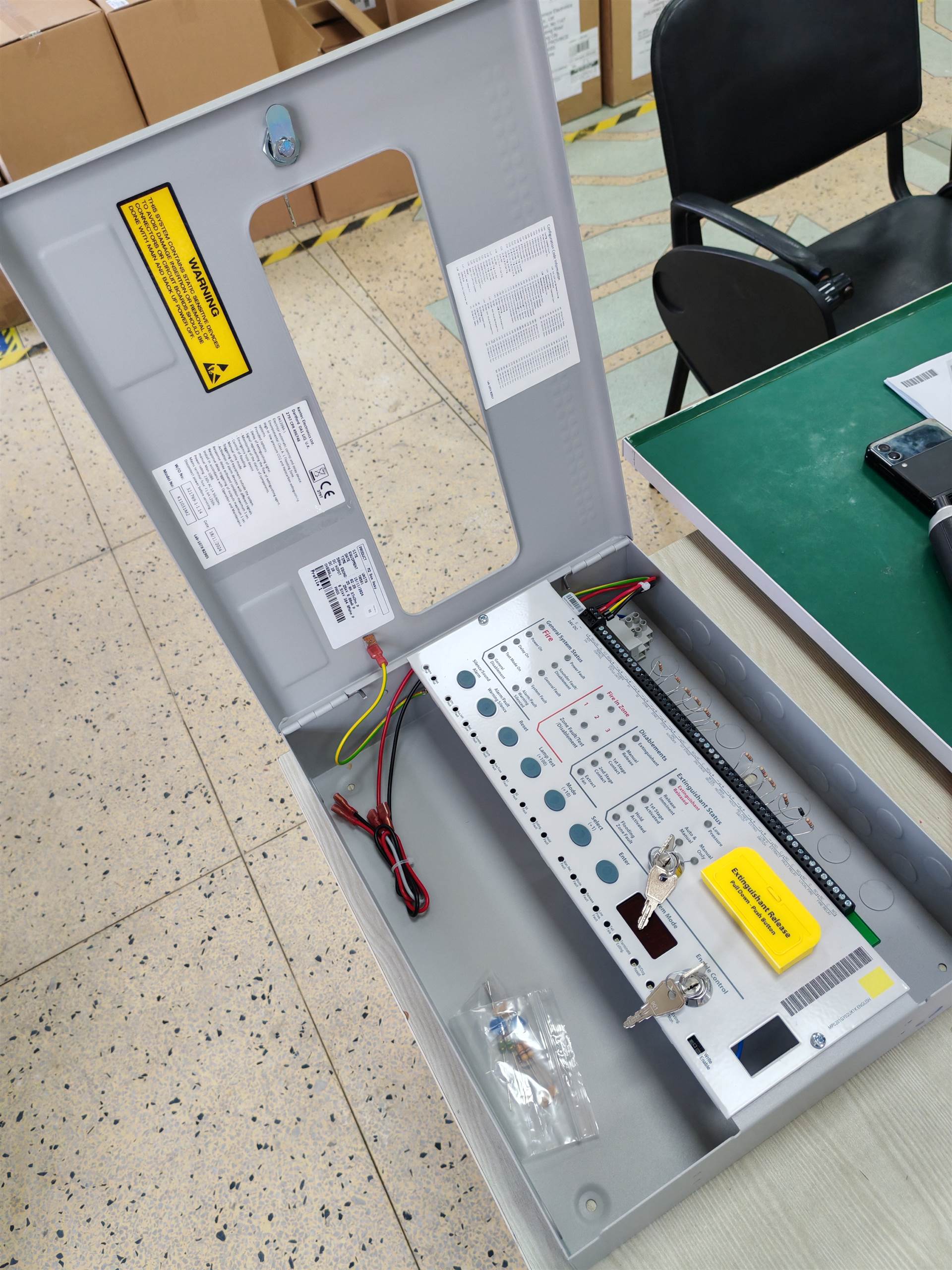

　　sigma xt panels are both robust and easy to

　　install having all the electronics mounted on a

　　single, easily removable, steel plate.
