| 型号 |
OK Autrod 309L |
类型 |
实心焊丝 |
| 焊接方法类型 |
气保护焊丝 |
被焊材料 |
不锈钢 |
| 加工定制 |
否 |
标准直径 |
1.2/1.6 |
| 材质 |
Austenitic (with approx. 9 % ferrite) 24 % Cr - 13 % Ni - Low C |
用途 |
特别适用于焊接含有23%铬和12%镍的钢材 |
| 牌号 |
ER309L |
|

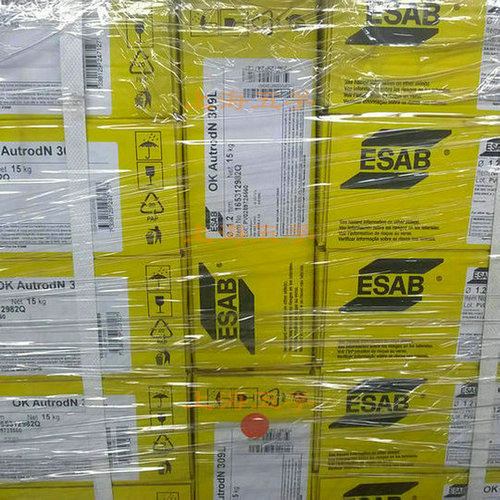

供应ESAB OK Autrod 309L焊丝,欢迎洽谈采购。
OK Autrod 309L是一种高品质的铬镍实芯焊丝,以其的耐腐蚀性能而著称,特别适用于焊接含有23%铬和12%镍的钢材。这种焊丝不仅适用于同类金属的焊接,还广泛用于低碳锰钢的过渡层以及不同金属之间的接合。控制焊接过程中的稀释率对于确保焊接质量至关重要。使用OK Autrod 309L焊接后,材料能够抵抗均匀腐蚀,使其非常适合于那些对耐腐蚀性要求极高的工业应用场合。在焊接不同材料时,还必须考虑机械性能、热膨胀系数的匹配以及工艺的兼容性,以确保焊接接头的可靠性和持久性。
OK Autrod 309L is a high-quality chromium-nickel solid wire known for its excellent corrosion resistance, particularly suitable for welding steels containing 23% chromium and 12% nickel. This wire is not only suitable for welding similar metals but is also widely used for the transition layers of low-carbon manganese steels and for joining different metals. Precisely controlling the dilution rate during the welding process is crucial for ensuring the quality of the weld. After welding with OK Autrod 309L, the material is able to resist uniform corrosion, making it highly suitable for industrial applications that require a high level of corrosion resistance. When welding different materials, mechanical properties, matching thermal expansion coefficients, and process compatibility must also be considered to ensure the reliability and durability of the welded joints.
| 标准:
|
Werkstoffnummer :~1.4332, EN ISO 14343-A:G 23 12 L, SFA/AWS A5.9:ER309L
|
|
认证:
|
CE EN 13479, NAKS/HAKC 1.2MM
|
|
合金类型:
|
Austenitic (with approx. 9 % ferrite) 24 % Cr - 13 % Ni - Low C
|
|
典型拉伸性能(AWS):
|
屈服强度:440MPa;抗拉强度:600MPa;延伸率:41%(焊态)
|
|
典型夏比V缺口冲击性能(AWS):
|
测试温度/冲击值:20℃/160J (焊态) / 测试温度/冲击值:-60℃/130J(焊态)
|
|
典型夏比V缺口冲击性能(AWS):
|
测试温度/冲击值:-110℃/90J (焊态)
|
|
典型焊缝金属成分分析%:
|
C:0.02; Mn:1.8; Si:0.4; Ni:13.4;Cr:23.2; Mo:0.10; N:0.05; FN WRC-92:10.0
|
