| 型号 |
LAF631 |
工作形式 |
弧焊 |
| 电流 |
直流 |
驱动形式 |
电动 |
| 电源类型 |
次级整流 |
是否数控 |
否 |
| 产地 |
波兰 |
厂家 |
ESAB |

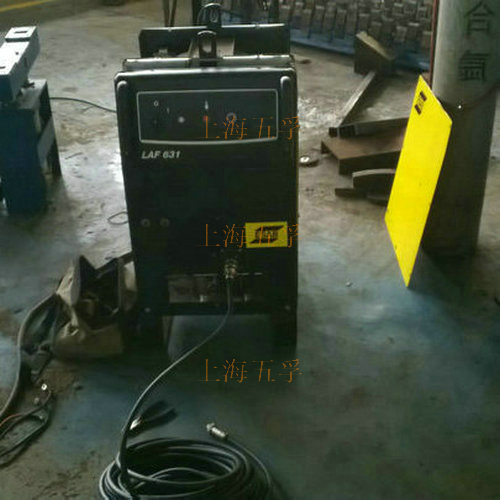

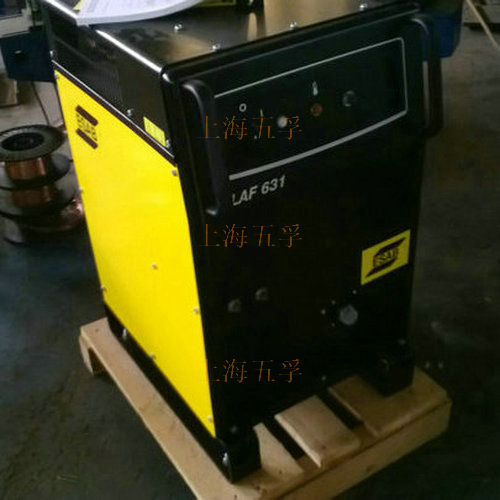

供应ESAB LAF631焊接电源及配件,欢迎咨询洽谈。
ESAB LAF631是一款专为高效机械化埋弧焊或MIG/MAG焊设计的三相、风扇冷却直流焊接电源。在其设定的电流与电压范围内,LAF631展现了的焊接性能,特别是在起弧和二次起弧方面表现出色。无论电弧电压高低,它都能保持出色的电弧稳定性。用户可以通过过程控制器(PEK或PEI)的前面板轻松调节或监控各项焊接参数。将两台LAF631焊接电源并联使用,可以扩展焊接电流范围,以满足最严苛的应用需求。结合其的焊接性能和LAF系列焊接电源的负载能力,这些设备成为了连续埋弧焊接的理想选择。目前,LAF焊接电源广泛应用于风力发电设备零件生产、核电容器、锅炉制造以及造船行业等主要领域。

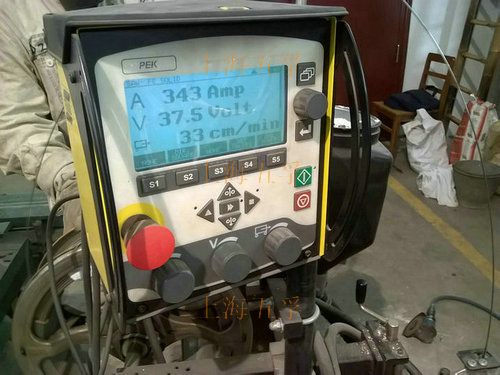

The ESAB LAF631 is a three-phase, fan-cooled DC welding power source designed specifically for efficient mechanized submerged arc welding or MIG/MAG welding. Within its set current and voltage range, the LAF631 demonstrates exceptional welding performance, particularly excelling in arc starting and re-striking. It maintains excellent arc stability regardless of the arc voltage level. Users can easily adjust or monitor welding parameters via the front panel of the process controller (PEK or PEI). By paralleling two LAF631 welding power sources, the welding current range can be expanded to meet the most demanding application requirements. Combining its outstanding welding performance with the load capacity of the LAF series welding power sources, these devices have become the ideal choice for continuous submerged arc welding. Currently, LAF welding power sources are widely used in major fields such as the production of wind power equipment parts, nuclear power containment vessels, boiler manufacturing, and the shipbuilding industry.
| 技术参数:
| |
|
电源输入电压,V/Hz:
|
400/50
|
|
40%暂载率,A/V:
|
-/-
|
|
60%暂载率,A/V:
|
800/44
|
|
100%暂载率,A/V:
|
630/44
|
|
MIG/MAG电流调节范围,A/V:
|
50/17-630/44
|
|
SAW 电流调节范围,A/V:
|
30/21-800/44
|
|
空载电压,V:
|
54
|
|
外形尺寸(长×宽×高mm):
|
670×490×930
|
|
重量,kg:
|
260
|
