| 型号 |
100X |
类型 |
手持式放大镜 |
| 安装方式 |
便携式 |
镜片材质 |
玻璃 |
| 结构 |
带光源 |
放大倍数 |
100 |
| 手柄材质 |
金属 |
有效直径 |
1 |
| 加工定制 |
否 |
装箱数 |
1 |
| 重量 |
0.1 |
|
安达仪器百倍镜带灯带刻度0.01
日本PEAK必佳百倍镜

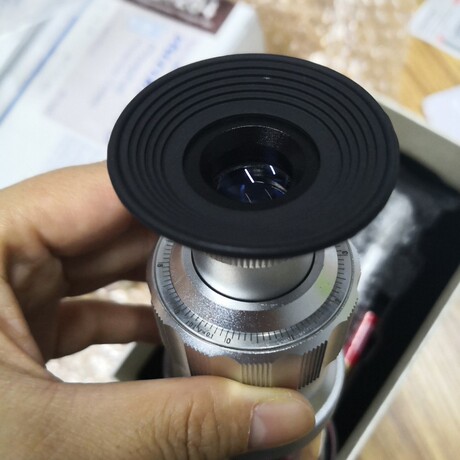

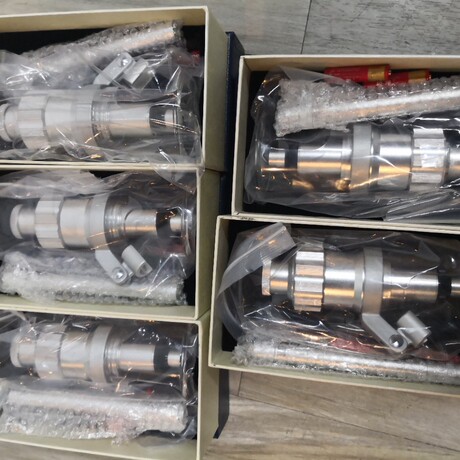

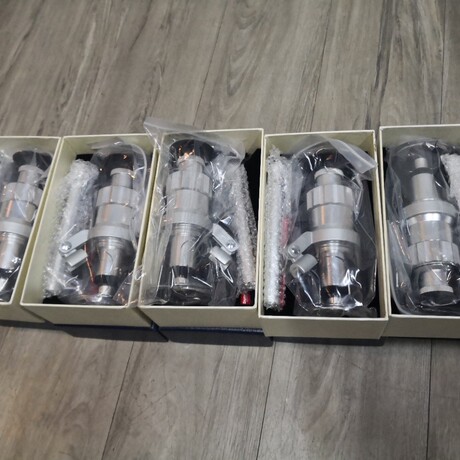

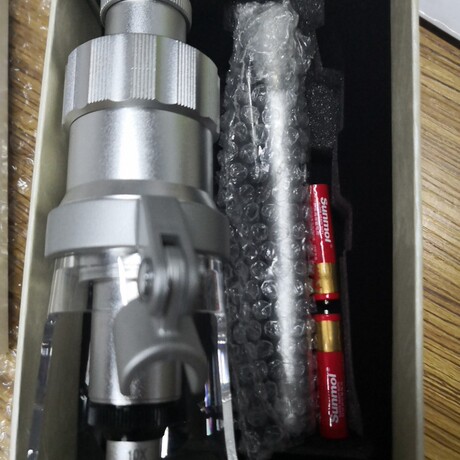

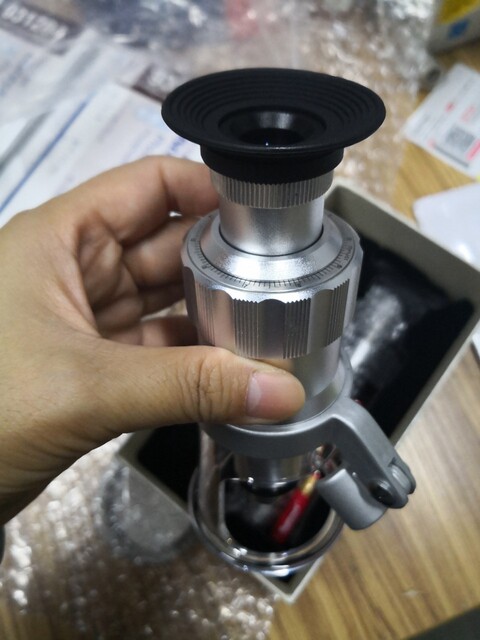

Microscope with lamp and scale
Model: 2034-20 2034-40 2034-60 2034-100 2034-2034-300
Magnification :20X 40X 60X 100X 150X 200X 300X
Field of view: Φ7.2mm Φ3.6mm Φ2.4mm Φ1.45mm Φ0.96mm Φ0.72mm Φ0.48mm
Minimum scale: 0.10mm 0.05mm 0.02mm 0.01mm 0.005mm 0.002mm 0.001mm
Measuring range :6.0mm 3.0mm 2.0mm 1.2mm 0.9mm 0.6mm 0.2mm
Size: Φ63×172mm
Model: 2008-25 2008-50 2008-75 2008-100
Magnification: 25X 50X 75X 100X
Field of view: Φ3.3mm Φ1.70mm Φ1.09mm Φ0.84mm
Minimum scale :0.05mm 0.02mm 0.01mm 0.005mm
Measuring range :3.0mm 1.6mm 1.0mm 0.8mm
Model :2009-20 2009-40 2009-60 2009-100
Magnification :20X 40X 60X 100X
Field of view: Φ7.2mm Φ4.3mm Φ2.2mm Φ1.8mm
Minimum scale :0.05mm 0.02mm 0.02mm 0.01mm
Measuring range :6.0mm 3.4mm 1.6mm 1.2mm
Working distance :52.01mm 28.01mm 6.0mm
