热销ZHSP-280 全自动套标机 饮料瓶高速套标机 套标机定金

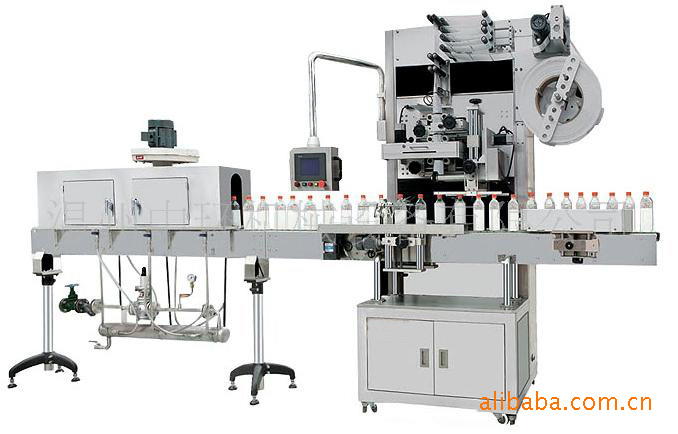

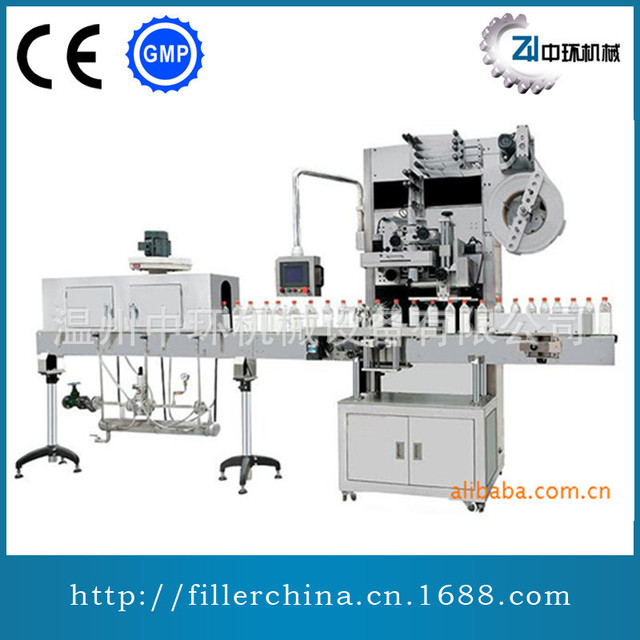

　　ZHSP-280 智能套标机

　　同步传动机：仅一条皮带,更换三分钟内完成，维护容易，保养简单。

　　适用瓶宽范围大，切面平整：适用直径30-85mm容器，免更换切刀座，免调试，傲视同行，新型切刀设计，切面平整无鱼尾，使收缩更优。

　　蒸汽式收缩炉，安全、简单、高效！能源效率高：低能源供应即可优完成收缩工作。

　　安全贴心设计：特殊隔热层设计，炉体外层保持常温，绝不伤害操作员。特殊门扣设计，使能源绝不外漏，保持密封。

　　首创自动接标机构（选配），大大减少劳动强度。

　　独特设计同步传动机构、切刀座及切刀，傲视同业。

　　使用日系伺服马达，速度极高，稳定性优。

　　高科技微电脑控制，故障率低，维修快速。

　　套标主机:

　　套标速度pcs/min 280瓶/分

　　电压规格 AC220V 50/60Hz

　　耗功率 3KW

　　尺寸 2400(L)×9500(W)×2500(H)

　　适用容器范围 Φ 30-85

　　适用标签范围 40-240(L) 0.035-0.082(T)

　　蒸汽式收缩炉:

　　电压规格 AC220V 50/60Hz

　　耗功率 0.75KW

　　尺寸 2000(L)×400(W)×2100(H)

　　蒸汽用量 35kg/hr

　　蒸汽供应压力 5kg/cm2

　　预设收缩设备

　　A热风枪 3KW B石英管 3KW

　　ZHSP-280 Sleeve Inserting Machine

　　Synchronous transmission system with a strap, changing any strap can finish in 3 min. it maintains more easily and simply, and it does not affect to manufacture.

　　It is suitable for the containers of φ30-120mm. The cutting seat need not change and debug, and has priority over congeneric productions. The new reamer cuts smoothly and constringency more beautiful.

　　Steam shrinkage furnace,safe,easy,efficient!high energy sources efficient:it can finish shrinkage perfectly with lowest energy sources.

　　Safety design:special Thermal insulation layer design,furnace outside keeps normal temperature,doesn’t hurt operator at all.special door clamp design,keep energy sources inside and airproof.

　　Originate automatic mechanism of incepting label (option) reduces labor intensity consumedly.

　　With particular design of transmission mechanism, cutting seat and reamer, it shows disdain for the same trade.

　　With servomotor, high speed, excellent stability.

　　With high-tech microcomputer controlling, the rate of trouble is low, and servicing is speedy

　　Techno-parameter：

　　Main machine:

　　Speed:280bpm

　　Power supply:φ AC220V 50/60hz

　　Power consumption: 3KW

　　Outside size:2400(L)*9500(W)*2500(H)

　　Quantity of air consumed:50kg/hr

　　ContainerRange: 30—85mm (Dia.)

　　LabelRange:40—240mm (L)

　　0.035—0.082mm (Thickness)

　　Steam shrinkage furnace:

　　Power supply:φ AC220V 50/60hz

　　Power consumption: 0.75KW

　　Outside size:2000(L)*400(W)*2100(H)

　　Quantity of air consumed:35kg/hr

　　Pressure of steam:5kg/cm2
