ZHLP-6B 全自动卧式理瓶机 塑料瓶理瓶机 理瓶机

　　ZHLP-6B全自动卧式理瓶机

　　1. 适用于食品，农药，医药，化妆品等行业。

　　2. 瓶子规格: ≤ 1 L

　　3. 本机采用PLC（可编程控制器）、触摸屏控制进行操作控制

　　4. 符合GMP 标准。

　　主要特点：

　　本机采用PLC（可编程控制器）、触摸屏控制进行操作控制，所有电机均变频无级调速，均可以通过触摸屏将已设定的数据进行修改，适用于不同客户对本机速度的需要。

　　本机换规格只要将理瓶桶中的转盘进行更换，其他部件可以根据刻度自由调节。

　　主要技术参数

　　1、生产速度： 50ml～200ml的瓶≤9000瓶/时

　　800ml的瓶≤6000瓶/时

　　1000ml的瓶≤4800瓶/时

　　2、瓶体直径：Φ30mm~Φ100mm

　　3、瓶子高度：100mm~250mm

　　4、电源：AC380V；50Hz

　　5、整机功率：2.2kW

　　6、外形尺寸（长×宽×高）：3000mm×1500mm×1500mm

　　7、整机重量：约1300kg

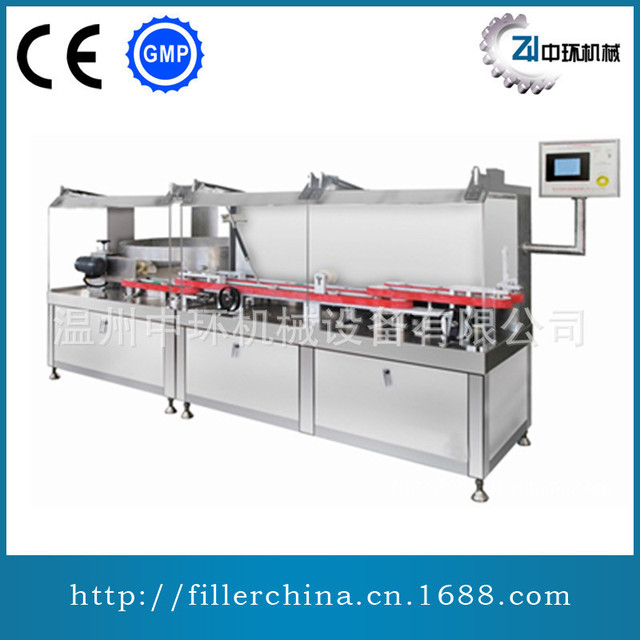

　　ZHLP-6B Fully Automatic Bottle Unscrambler

　　1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.

　　2. Packing specification: ≤ 1 L

　　3. The machine is controlled by PLC and touch screen.

　　4. Conform to GMP standard.

　　Major Characteristics:

　　This machine controlled by PLC, touch screen, all motors can frequency control, can adjust the set figures by touch screen, it can satisfied different customers demand.

　　It only need to change the turntable of the unscramble box if need to change the specification, other parts can adjust freely. The machine is mainly made of SUS304 stainless steel and aluminum alloy, strictly based on GMP. With elegant appearance and high efficiency. It is adapted to different conditions. Drive parts of this machine are protected by guard cover, safe and environment.

　　Main Performance Parameter:

　　production capacity: 50-200ml≤9000bottles/hour

　　800ml≤6000bottles/hour

　　1000ml≤4800bottles/hour

　　Diameter of bottle: Ф30-Ф100

　　Bottle height: 100-250mm

　　Power supply: AC380V; 50HZ

　　Main power: 2.2kw

　　External dimension (L*W*H): 3000mm*1500mm*1500mm

　　Weight: about 1300kg
