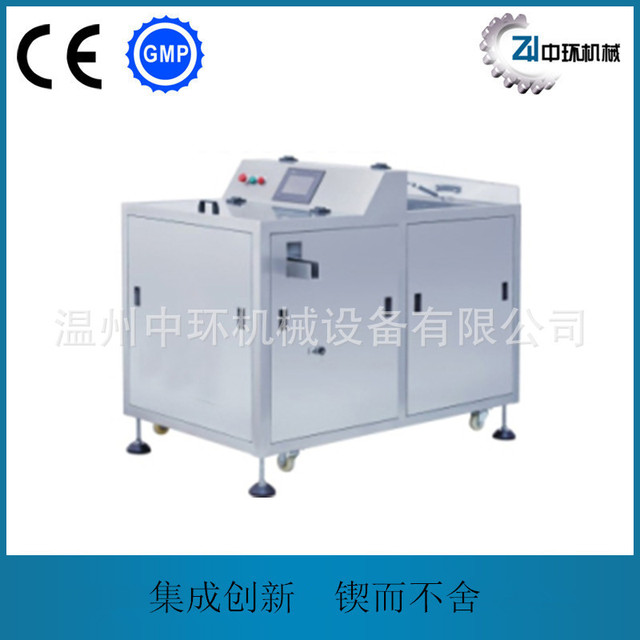

ZH-LP-3全自动塑料瓶理瓶机 塑料瓶理瓶机

　　产品概要：

　　本机是机电一体化的设备，操作方便、维修简单、运行可靠。采用全中文界面触摸屏，PLC微机控制系统，有记数、工作参数设定、显示等功能，在参数范围内可任意调整。本机装有出瓶定量控制检测及过载保护装置。噪音小于<70dB。本机机架及料桶均采用304不锈钢材料制成，便于清洗和消毒，整体无死角。符合GMP要求。利用自动反瓶机构，并配有集瓶装置，大大提高了生产效率，本机配有2只无级调速电机，1只用于调节理瓶花盘的转动速度，也就是说转盘速度越快，那么理瓶出瓶的速度也就越快，反之越慢。并在此机的出口处配有一个欧姆龙的光电开关，检测后面的输送带上是否有堵瓶现象，如出现堵瓶，则理瓶盘的电机自动停机，如检测到缺瓶，则自动开机、送瓶。

　　技术参数

　　产量（瓶/分）0–150

　　瓶子规格(ml)10-500

　　电压(V)/频率(Hz)AC220/50-60

　　总功率(KW)1

　　气压(Mpa)0.05

　　外型尺寸(mm)(长×宽×高)

　　1510×1065×1200

　　净重量（kg）150

　　Products overview:

　　this machine is electromechanical integration equipment, convenient operation, simple maintenance and reliable running. Using the touch screen,

　　Chinese interface PLC microcomputer control system, such as numeration and working parameter setting and display function, within the scope of the parameters

　　can be adjusted arbitrarily. This machine is equipped with a bottle of quantitative control detection and overload protection device. Noise is less than < 70 db.

　　The machine frame and tank adopts high quality 304 stainless steel material, easy cleaning and disinfection, no dead Angle as a whole. In line with the

　　GMP requirements. Using automatic bottle body, and is equipped with a set of bottles device, greatly improving the production efficiency, the machine is equipped with two stepless speed regulating motor, 1 is used only for adjust the rotation speed of unscramble bottle faceplate, meaning that the faster

　　the wheel, then the reason the faster the speed of the bottle out of the bottle also, conversely the more slowly. And at the exit of this machine is equipped with

　　a omron photoelectric switch, detection of the conveyor belt if there is a wall behind the phenomenon, such as a bottle, the bottle of disc motor automatic stop,

　　such as lack of bottle was detected, automatic startup, delivering bottles.

　　TechnicalParameters

　　Production (bottles / min)0-150

　　Bottle size(ml) 10-500

　　Voltage(V) /Frequency(Hz) AC220/50-60

　　Total power(KW) 1

　　Pressure(Mpa) 0.05

　　Dimensions(mm) (L × W× H)

　　1510 × 1065 × 1200

　　NetWeight(kg) 150
