全自动颜料涂料灌装旋盖机 凡士林灌装旋盖机 蚌埠膏体灌装机

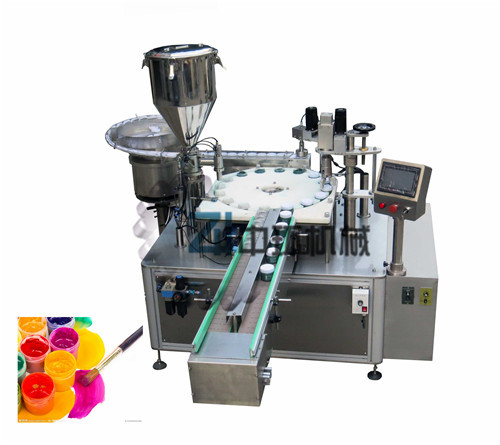

　　ZHG-50YL型机械手式灌装旋盖机

　　用途与简介：

　　机械手式灌装机是我公司近年来开发研制之新产品，以高精度活塞灌装（特殊场合采用陶瓷泵），并具有自动灌液、自动加盖、旋盖多种功能。该机配置了国内的专用机械手，保证外盖可靠地进入瓶口，从而实现完全自动化。符合国家GMP标准

　　特点：

　　l微电脑设定、装量、操作方便。

　　l灌装系统有吹气功能，无滴漏。

　　l采用机械手自动压外盖。

　　l对任一轨道出现连续无灌装、无盖的情况可自动停机功能。

　　技术参数：

　　适用规格2-50ml

　　生产能力30-40瓶/分钟

　　灌装精度≤±1%

　　电源220V/50Hz

　　旋（轧）盖率≥99%

　　气源2 m3/h 0.4-0.8Mpa

　　功率1.0 kw

　　机器净重400 kg

　　外形尺寸2400*1100*1500mm

　　ZHG-50YL type mechanical hand style double-head eyedrop filling & capping machine

　　Brief introduction:

　　This machine is the new machine which in these years we design and make it. Man can set the number of steps peristaltic pumps with microcomputer to perform metering filling (special occasions with ceramic pump). It has the functions: automatic filling, and capping. The machine is equipped with special internally unique mechanical hand. These can ensure the cover to enter the bottle, so that it achieves fully automatically. The machine fully meets with new GMP requirements.

　　Characteristic:

　　1:be setted by microcomputer, high precision, easy operate.

　　2:filling system has sucked back, no dropping or leakage

　　3:use the mechanical hand to press the cover

　　4:no bottle, no filling ,no cap no capping

　　Main technical parameters:

　　Filling Volume 2-20ml

　　Productivity 30-60

　　Filling Precision≤±1%

　　Power Supply 220V/50Hz

　　Capping Rate≥99%

　　Air Supply 2 m3/h 0.4-0.8Mpa

　　Power 1.0 kw

　　Weight 400 kg

　　Dimension 2400*1100*1500mm
