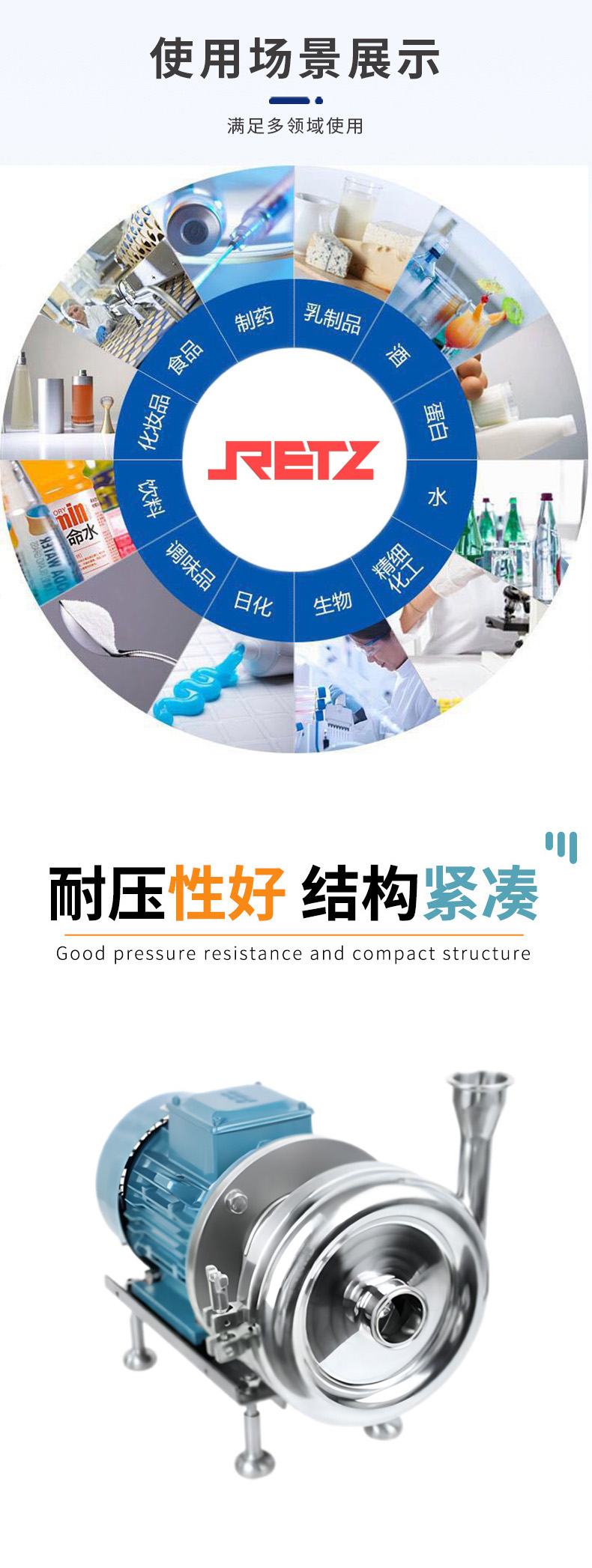

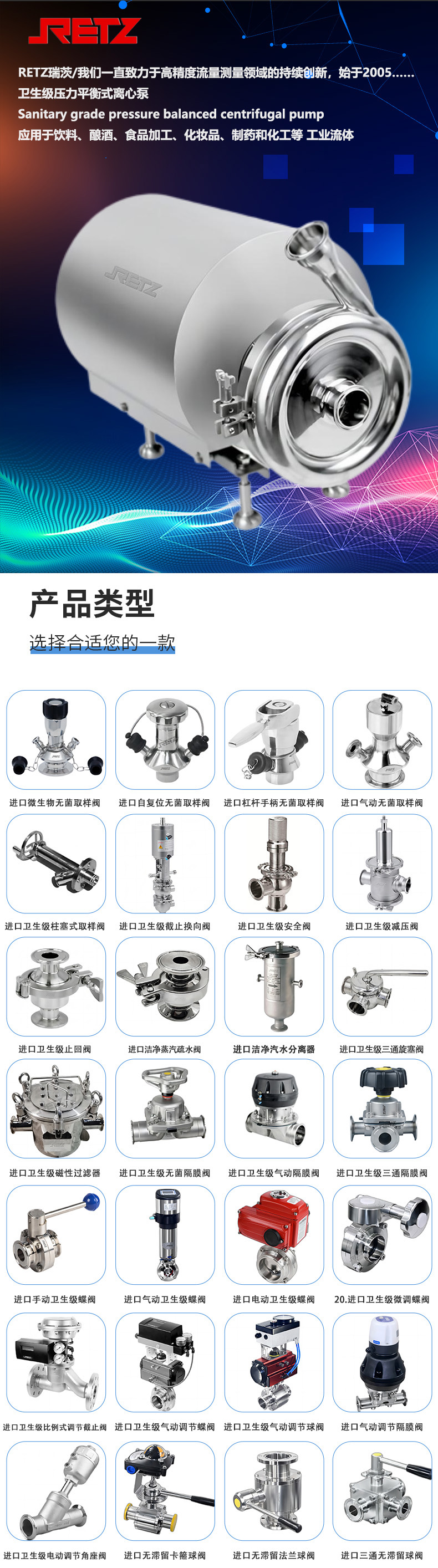

进口卫生级压力平衡离心泵

　　RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

　　进口卫生级压力平衡式离心泵不仅优化了内部结构、叶轮设计、死角处理、机封压力平衡设计且机封完全被处在冲洗区域。我们还对泵外部卫生也进行了优化，使其内部更加卫生、外部减少死角，由于没有死角区域，它非常容易被CIP清洗、SIP杀菌等。另外我们对泵保持了最灵活性组合应用，如，泵出口角度可以从0°-360°之间任意调整，泵盖采用卡箍式连接，这样对泵维护和保养及机封的更换，保持了高效，降低了人员高度性的要求，而完成这些无需特殊的工具。因而达到了高效、卫生、高可靠性及低成本的目的，成为一款高性能的泵。retz The imported sanitary grade pressure balanced centrifugal pump not only optimizes the internal structure, impeller design, dead angle treatment, mechanical seal pressure balance design, but also the mechanical seal is completely in the flushing area. We have also optimized the external hygiene of the pump to make it more hygienic internally and reduce dead corners externally. Due to the absence of dead corner areas, it is very easy to be cleaned by CIP, sterilized by SIP, etc. In addition, we have maintained maximum flexibility in the combination of pump applications, such as the pump outlet angle being adjustable from 0 ° to 360 °, and the pump cover being connected with clamps. This ensures efficient pump maintenance and replacement of mechanical seals, reduces the need for highly specialized personnel, and eliminates the need for special tools to complete these tasks. As a result, it has achieved the goal of efficiency, hygiene, high reliability, and low cost, becoming a high-performance pump.

　　进口卫生级压力平衡式离心泵选型参数

　　流量flow：140m3/h

　　扬程lift：70M

　　温度Temperature : -20到140℃

　　功率power：1.1kw-30KW

　　材质material quality：304 /316L,1.431/1.4404,ASME BPE 316L ,1.4435 NB2 Fe≤0.5%

　　表面处理Surface Treatment：≤ Ra0.8μm，≤ Ra0.6μm，≤ Ra0.4μm

　　机封Machine seal：单机封、双机封 Single seal,doubleseal

　　进/出口连接 ： 螺纹、卡箍、法兰、无菌法兰Inlet/outlet connections: threads, clamps, flanges, sterile flanges
