卫生级带外置安全阀转子泵

　　RETZ瑞茨/我们一直致力于高精度流量测量领域的持续创新，始于2005……

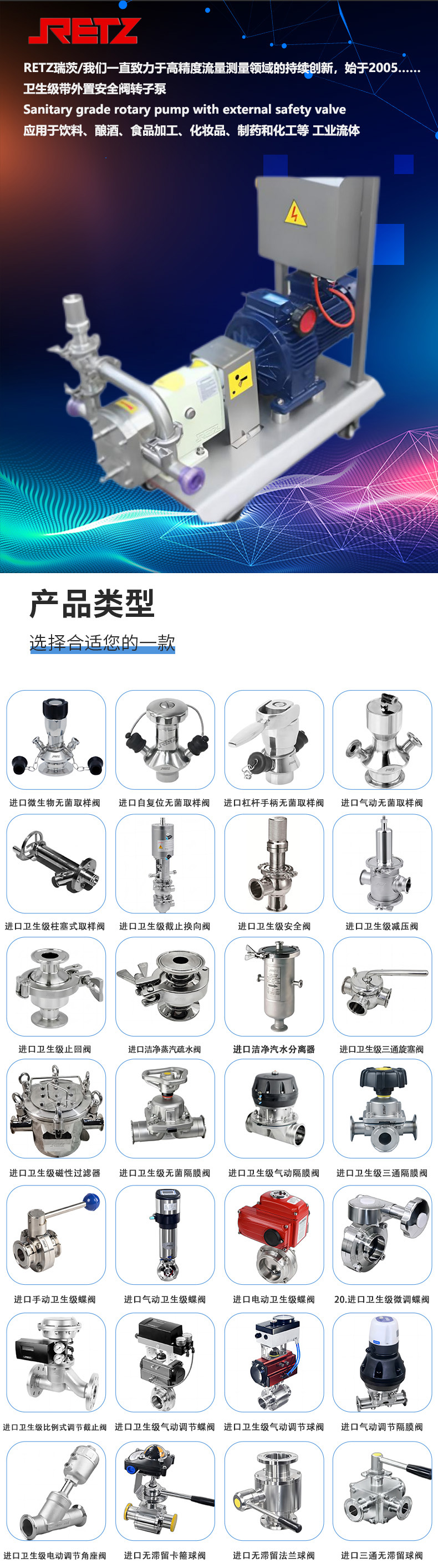

　　进口卫生级带外置安全阀转子泵以解决因泵出口管道堵塞或其他的仪器和设备导致压力过高，该装置可不损失物料的情况下保证管道压力平稳和安全retz Imported sanitary grade rotor pump with external safety valve to solve the problem of high pressure caused by blockage of pump outlet pipeline or other instruments and equipment. This device can ensure stable and safe pipeline pressure without losing materials

　　注意：该装置适用于流动性较好的物料Note: This device is suitable for materials with good fluidity

　　多种电机选择：Multiple motor options

　　1）宽电压高效电机IEC EN IE2高效等级(相当于中国二级能效)，PTC热敏电阻Wide voltage high-efficiency motor IEC EN IE2 efficiency level (equivalent to China's second level energy efficiency), PTC thermistor

　　2）防爆电机Explosion proof motor

　　3）变频电机Variable frequency motor

　　电压：AC 220V,380V,460V,690V,50HZ,60HZ

　　进口卫生级带外置安全阀转子泵选型参数

　　流量范围Max.flow：90m3/H

　　压力范围Max.pressure：15bar

　　温度范围Max.Temperature：150℃

　　转速范围Max.rev：750 rpm

　　材质：ASTM 316L,1,.4404

　　内表面：Ra0.8μm

　　进出口连接方式：1）水平式、2）垂直式Inlet and outlet connection methods: 1) Horizontal, 2) Vertical

　　蝶形转子(标准)；三叶转子；二叶转子；单蝶型转子Butterfly rotor (standard); Three leaf rotor; Two leaf rotor; Single butterfly rotor

　　机封：单端面机封(标准)、双端面机封(选项)，材质SIC/SIC,TC/TC Machine seal: single end machine seal (standard), double end machine seal (option), material SIC/SIC, TC/TC

　　适于CIP清洗和SIP杀菌Suitable for CIP cleaning and SIP sterilization
