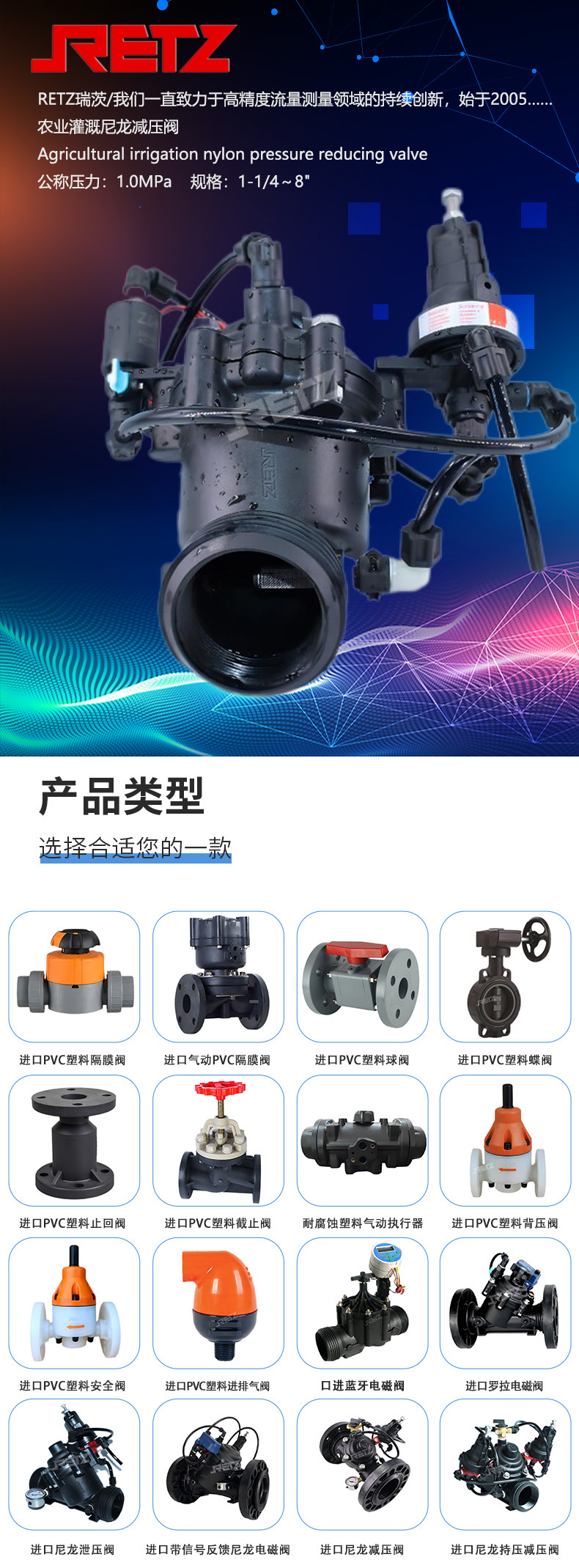

进口农业灌溉尼龙减压阀 美国RETZ瑞茨

　　RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

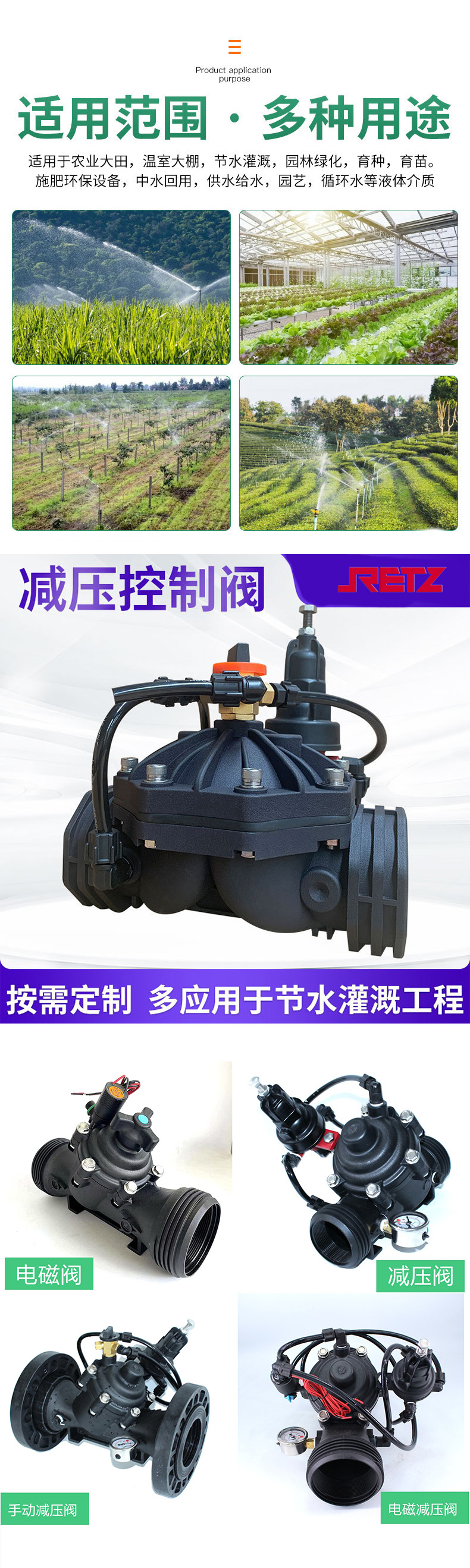

　　进口尼龙减压阀、塑料减压阀稳压电磁阀是液压驱动的隔膜式水力控制阀，具有水力控制功能。无论流量如何波动，均可将阀前高压降低至阀后低压，并保持稳定，压力降低时阀门全开retz The imported nylon pressure reducing valve and plastic pressure reducing valve pressure stabilizing solenoid valve are hydraulic driven diaphragm hydraulic control valves with hydraulic control functions. No matter how the flow rate fluctuates, the high pressure in front of the valve can be reduced to the low pressure behind the valve and kept stable. When the pressure decreases, the valve is fully open

　　阀门常闭，在外接压力升高时开启The valve is normally closed and opens when the external pressure increases

　　无外接压力时关闭，水压控制，常闭Closed without external pressure, water pressure control, normally closed

　　出现控制方面的故障时自行关闭，保护下游系统，压力降低时阀门全开When there is a control malfunction, it automatically closes to protect the downstream system, and the valve fully opens when the pressure drops

　　规格Specification:1-1/4～6"

　　适用温度Temperature：≤60℃

　　压力范围Pressure Range：输入压力：1.0-10.0 bar输出压力：0.8-6.5 bar

　　连接方式Connection method：螺纹，法兰连接Thread, flange connection

　　材料：阀体-尼龙

　　密封件-NBR/EPDM

　　弹簧-SUS304

　　流量：12～180m3/h

　　进口尼龙减压阀、塑料减压阀稳压电磁阀特征feature

　　1、先导膜片式结构，增强尼龙材质 the pilot diaphragm type structure, enhance the nylon material

　　2、控制输出压力保护下游灌溉设备Control output pressure to protect downstream irrigation equipment

　　3、准确稳定的调节防止水锤Accurate and stable regulation to prevent the water hammer

　　4、无需额外能耗自动调节水压No additional energy consumption is needed to automatically adjust the water pressure

　　5、安装BM3WAY线圈即可自动或手动控制install the BM3WAY coil can be automatically or manually controlled
