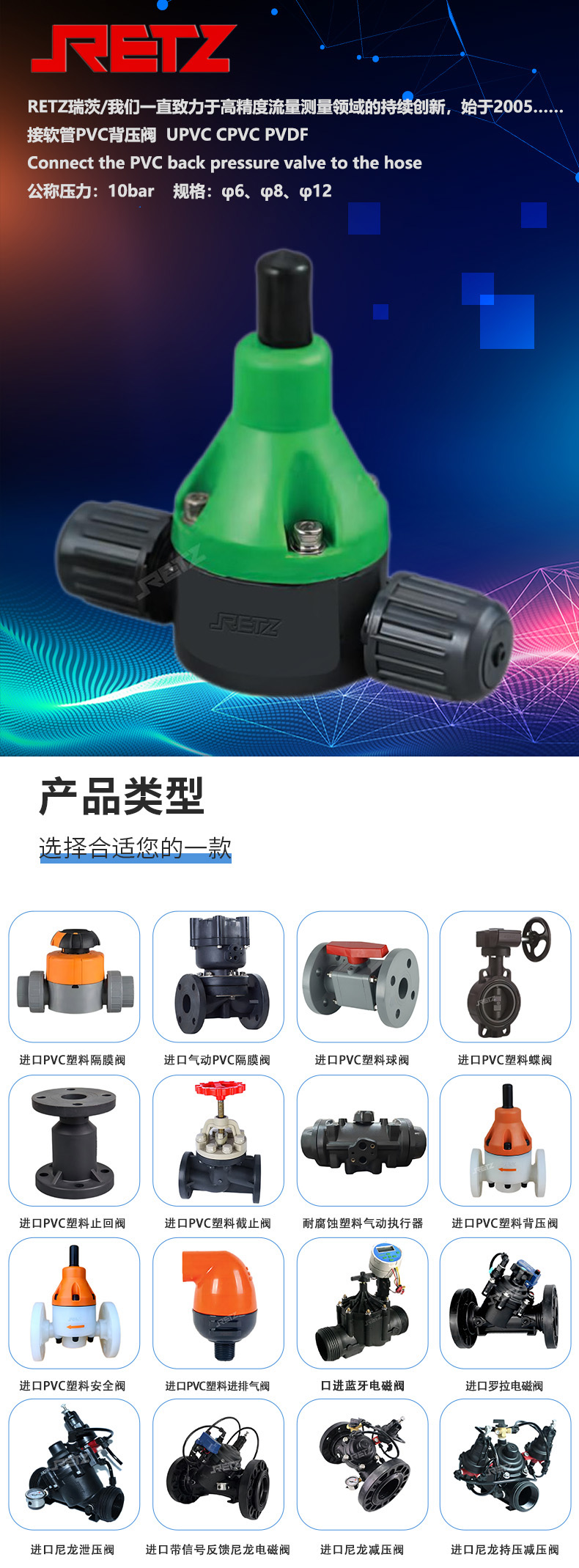

进口接软管PVC背压阀 美国RETZ瑞茨

　　RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

　　进口软管型塑料背压阀安装于计量泵或隔膜泵的正压排放管路上，防止虹吸现象的发生，消除由于投加点压力波动造成的投加量变化，从而保证泵的投加精度

　　规格Specification:φ6、φ8、φ12

　　适用温度Temperature：≤80℃

　　设定背压范围Set back pressure range：0.03~0.6Mpa

　　材质Materia：UPVC、PP、CPVC、PVDF

　　隔膜材质：PTFE+橡胶复合 material: PTFE+rubber composite

　　进口软管型塑料背压阀性能特点Performance characteristics

　　在现场取下调整螺丝上的保护帽，旋转调整螺丝，借助管路中的压力表可调至所需压力，可通过调节螺丝在0-0.6Mpa范围内设置背压。和脉冲阻尼器配合使用减少水锤对系统的损坏，保持泵的出水口到背压阀有一定的恒压，保持系统流速均恒。

　　Remove the protective cap from the adjustment screw on site, rotate the adjustment screw, and use the pressure gauge in the pipeline to adjust to the required pressure. The back pressure can be set within the range of 0-0.6Mpa by adjusting the screw. Working in conjunction with pulse dampers to reduce water hammer damage to the system, maintaining a constant pressure from the pump outlet to the back pressure valve, and maintaining a constant flow rate in the system.

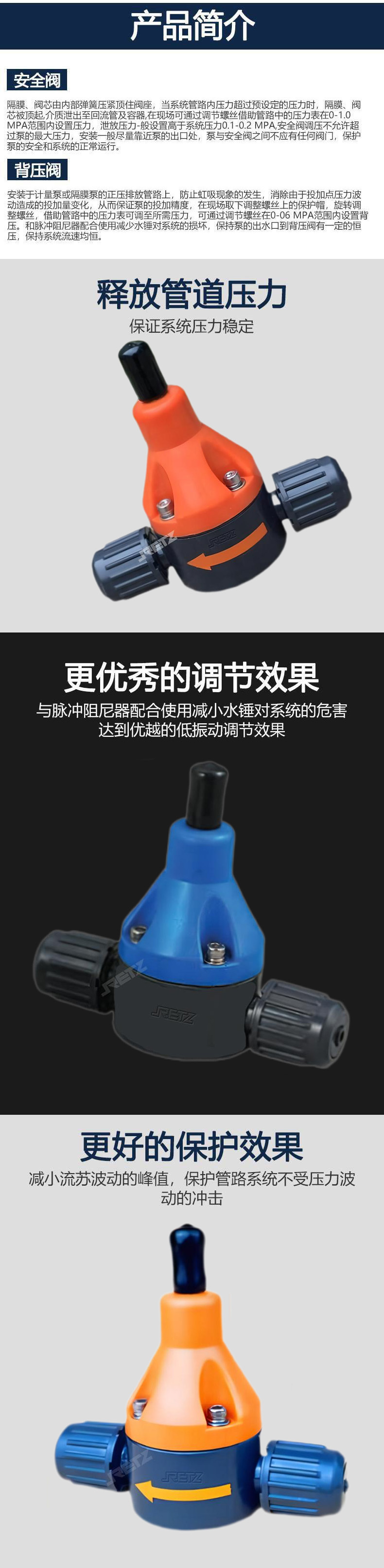

　　释放管路压力，保证系统压力稳定Release pipeline pressure to ensure stable system pressure

　　保护泵的安全和系统的正常运行Protect the safety of the pump and the normal operation of the system

　　与脉冲阻尼器配合使用减小水锤对系统的危害，达到优越的低振动调节效果Combined with pulse dampers to reduce the harm of water hammer to the system and achieve superior low vibration regulation effect

　　减小流速波动的峰值，保护管路系统不受压力波动的冲击Reduce the peak value of flow rate fluctuations and protect the pipeline system from pressure fluctuations

　　隔膜采用先进的PTFE+橡胶复合工艺，几乎适用于所有腐蚀性流体，密封可靠无泄漏The diaphragm adopts advanced PTFE+rubber composite technology, which is almost suitable for all corrosive fluids, with reliable sealing and no leakage

　　RETZ的PVC阀门可以满足工控系统的截断、安全、防腐、排放的控制产品涵盖了：进口PVC隔膜阀、蝶阀、球阀、安全阀、背压阀、阻尼器、电磁阀、水力控制阀。

　　RETZ's PVC valves can meet the requirements of cutoff, safety, anti-corrosion, and emission control in industrial
