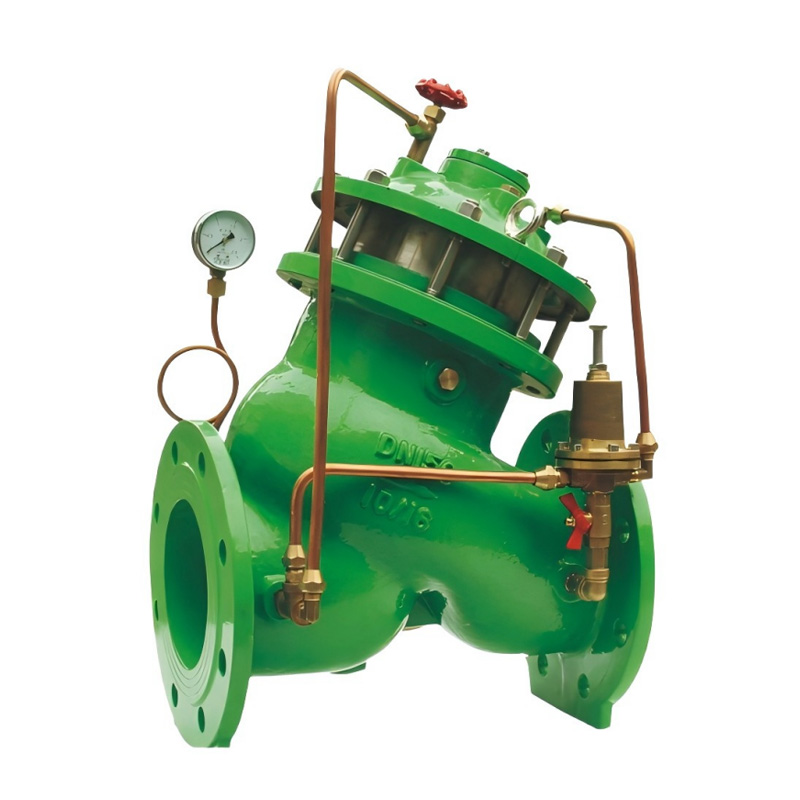

进口隔膜式泄压持压阀 活塞式安全泄压阀

　　RETZ工业/美国瑞茨,我们一直致力于流体控制领域的持续创新，始于2005……

　　性能：对压力波快速反应快速释放，防止压力急剧增高而损坏管线及设备，特别适用于高层楼房消防系统泄压

　　Performance: Fast response and release to pressure waves, preventing damage to pipelines and equipment caused by rapid pressure increase, especially suitable for pressure relief in high-rise building fire protection systems

　　产品详情Product details

　　隔膜式安全泄压阀在传动方式上采用了水力操作并能自动控制，即利用控制管路中的压差自动开合，关闭主阀，使上游的压力不超过某一设定值。阀体采用了全通流线型设计，流体阻力小，密封性能好，自动启闭性能灵敏。该阀的主要特点是即可以作泄压阀，又可以作持压阀。作泄压阀时可将给水管路中超过向导阀安全设定值压力释放掉，并维持管路中压力于一安全设值以下，以防止管路中高压或突压毁损管线或设备，可用于高层大楼消防测试循环系统以及其它给水平衡系统之泄压用，防止水压过高造成系统危险；作持压阀时可维持主阀上游供水压力于某一设定值以上，以保障主阀上游供水区的压力。

　　The imported diaphragm safety relief valve adopts hydraulic operation and can be automatically controlled in transmission mode, that is, it uses the pressure difference in the control pipeline to automatically open and close the main valve, so that the upstream pressure does not exceed a certain set value. The valve body adopts full pass streamline design, with small fluid resistance, good sealing performance and sensitive automatic opening and closing performance. The main feature of this valve is that it can be used as both a pressure relief valve and a pressure holding valve. When using a pressure relief valve, the pressure in the water supply pipeline that exceeds the safety setting value of the guide valve can be released, and the pressure in the pipeline can be maintained below a safety setting value to prevent damage to the pipeline or equipment due to high pressure or sudden pressure in the pipeline. It can be used for pressure relief in high-rise building fire testing circulation systems and other water supply balance systems, to prevent system danger caused by high water pressure; When acting as a pressure holding valve, it can maintain the upstream water supply pressure of the main valve above a certain set value to ensure the pressure in the upstream water supply area of the main valve.

　　进口隔膜式安全泄压持压阀工作原理Working principle

　　该阀安装在管路中起泄压/持压作用，即与主管道并联安装。当上游压力低于导阀设定值，导阀关闭，上游压力作用在主阀的隔膜（活塞）上方，使主阀维持关闭，一旦上游压力逐渐上升超过导阅设定值的压力，导阀就会自动关闭，将隔膜（活塞）上方的压力水径导阀和球阀泄向下游，此时主阀在上游压力作用下开启，大量泄水，直到降到设定值时，才缓慢关闭，不会产生水锤，动作灵敏。

　　The valve is installed in the line to relieve pressure / hold pressure, which is installed in parallel with the main line. When the upstream pressure is below the set value of the guide valve, the guide valve closed, the upstream pressure diaphragm (piston) above the main valve, the main valve, closed, once the upstream pressure gradually rise over the guide set value, the guide valve will automatically close, the diaphragm (piston) above the pressure diameter guide valve and the ball valve to the downstream, the main valve in the upstream pressure open, a lot of water, until down to the set value, slowly closed, will not produce water hammer and sensitive action.

　　进口隔膜式安全泄压持压阀结构特点Structural characteristics

　　1、准确且保持不变的安全稳定压力，一旦超压，泄压阀能充分打开及时泄压accurate and constant safe and stable pressure, once overpressure, the pressure relief valve can fully open timely pressure relief

　　2、关闭速度可调，消除压力波动closing speed is adjustable, eliminate pressure fluctuations

　　3、隔膜传动机构将操作泻后现象减到最小diaphragm transmission mechanism will reduce the phenomenon after operation to the minimum

　　技术规范Technical specifications

　　适用温度：0℃~100℃

　　工作压力：1.0Mpa,1.6Mpa,2.5Mpa

　　压力等级：PN10（调节范围0.3-0.9MPa）

　　PN16（调节范围0.5-1.4MPa）

　　PN25（调节范围0.5-2.4MPa）

　　隔膜式：DN50～DN350

　　活塞式：DN50～DN800

　　阀体材质：球墨铸铁、碳钢

　　膜片材质：丁晴橡胶(NBR)

　　适用介质：原水，清水，油及性质接近水的液体
