| 型号 |
进口PVC塑料管道混合器 |
材质 |
PVC |
| 驱动方式 |
手动 |
压力环境 |
常压 |
| 特殊功能 |
对投加各种混凝剂、助凝剂、臭氧、液氯及酸碱中和、气水混合系统等都起到非常良好的效果 |
流动方向 |
双向 |
| 介质温度 |
80 |
加工定制 |
否 |
| 产地 |
美国 |
厂家 |
RETZ |

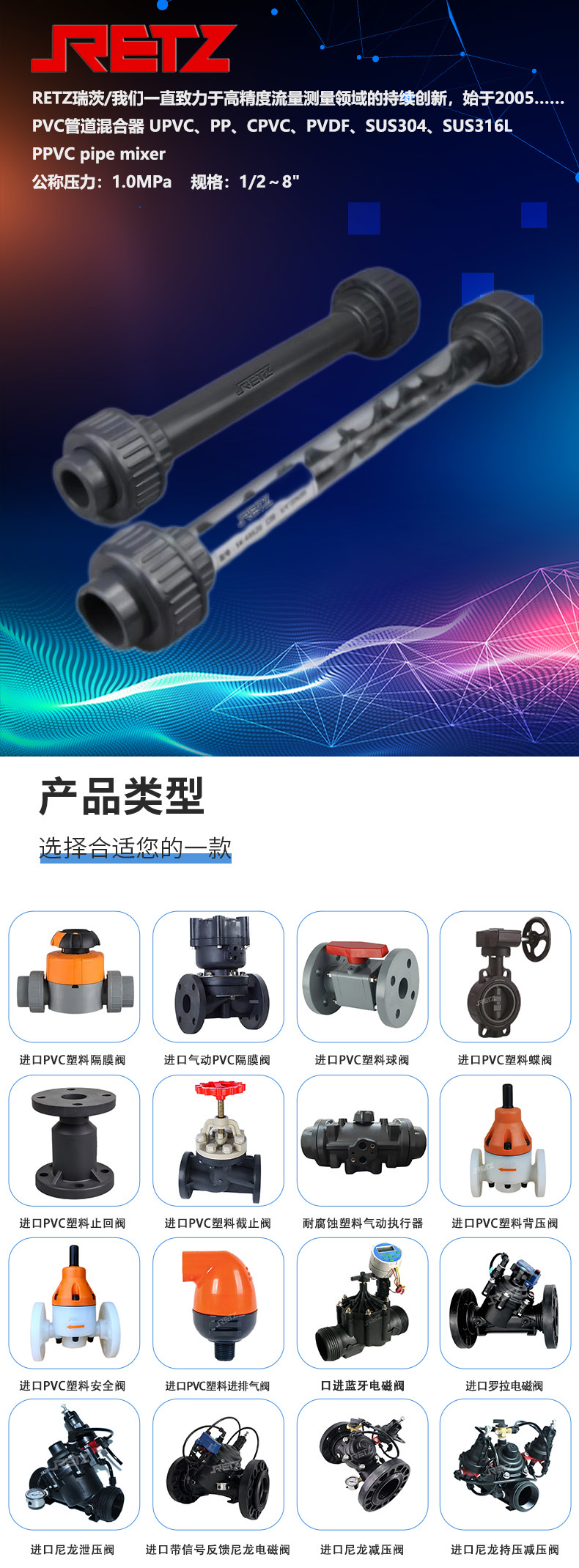

RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

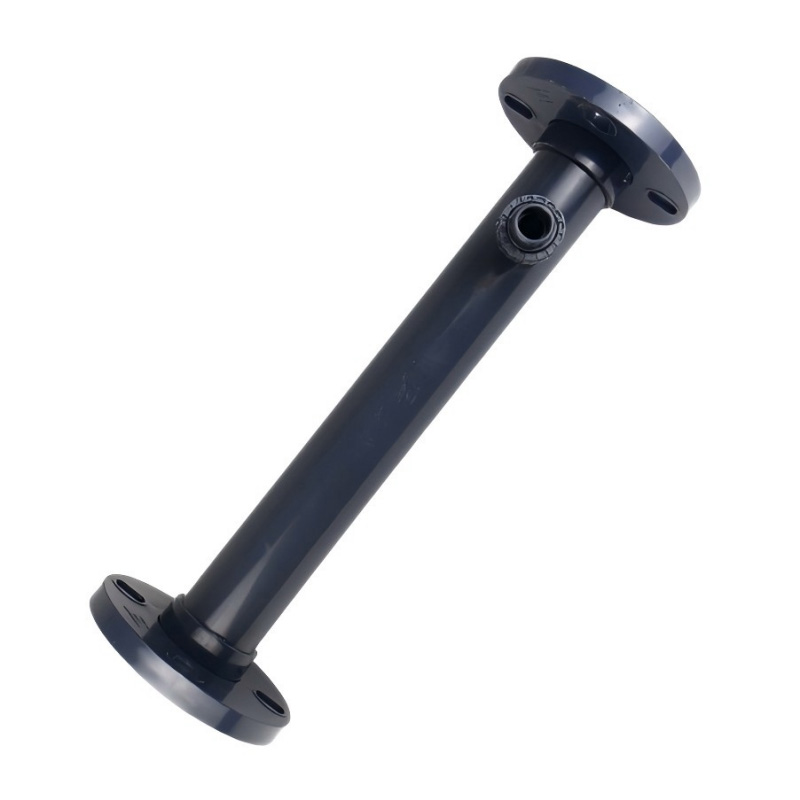

进口管道混合器是处理水与各种药剂实现瞬间混合的理想设备，对投加各种混凝剂、助凝剂、臭氧、及酸碱中和、气水混合系统等都起到非常良好的效果retzThe imported pipeline mixer is an ideal equipment for instantaneous mixing of water and various chemicals. It plays a very good role in adding various coagulants, coagulants, ozone, liquid chlorine, acid-base neutralization, and gas-water mixing systems
规格Specification:1/2～8"
适用温度Temperature：≤80℃
压力范围Pressure Range：1.6MPa
材质Materia：UPVC、PP、CPVC、PVDF、SUS304、SUS316L
连接方式Connection method：承插、丝扣、法兰Socket, screw thread, flange
工作原理operational principle

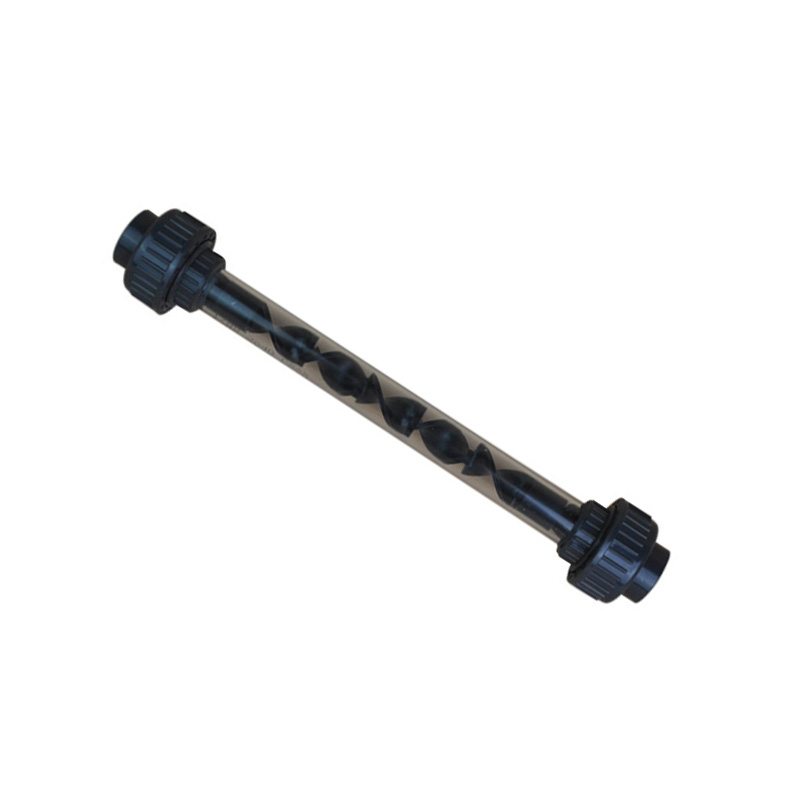

具有快速高效混合、结构简单、节约能耗、体积小巧特点。在不需外力情况下，水流通过6-8个混合单元，相百交叉分流，同时游涡反向旋转及不断交叉流动，能瞬间达到很好的混合效果，混合效率高达90-95%
It has the characteristics of fast and efficient mixing, simple structure, energy saving, and compact size. Under the condition of no external force, the water flow passes through 6-8 mixing units, and the flow is divided into different phases. At the same time, the vortex rotates in the opposite direction and continuously intersects, achieving a good mixing effect in an instant, with a mixing efficiency of up to 90-95%
技术性能规范Technical performance specifications
| 公称直径(DN)
|
D(mm )
|
L1(mm)
|
L2(mm )
|
参考流量(m3/h)
|
连接方式
|
|
DN15 1/2"
|
20
|
252
|
156
|
0.4~1
|
承插、丝口、法兰
|
|
DN20 3/4"
|
25
|
330
|
225
|
0.6~1.8
|
承插、丝口、法兰
|
|
DN25 1"
|
32
|
420
|
292
|
1~3.2
|
承插、丝口、法兰
|
|
DN32 11/4"
|
40
|
495
|
336
|
1.4~6
|
承插、丝口、法兰
|
|
DN40 11/2"
|
50
|
565
|
406
|
2.2~10
|
承插、丝口、法兰
|
|
DN50 2"
|
63
|
695
|
497
|
3.5~20
|
承插、丝口、法兰
|
|
DN65 2 1/2"
|
75
|
900
|
642
|
10~60
|
承插、法兰
|
|
DN80 3"
|
90
|
880
|
770
|
15~80
|
承插、法兰
|
|
DN100 4"
|
110
|
990
|
850
|
30~120
|
承插、法兰
|
|
DN150 6"
|
160
|
955
|
800
|
90~190
|
承插、法兰
|
|
DN200 8"
|
225
|
1020
|
790
|
150~340
|
承插、法兰
|
设计参考
各种药剂的投加位置应在管道混合器前端，并大于25cm，与射流器配合使用效果更佳The dosing position of various chemicals should be at the front end of the pipeline mixer and greater than 25cm, and the effect is better when used in conjunction with the jet mixer
投加药剂的管道可按给水排水标准设计，管内流速应大于0.9m/s，管内部压力应小于1.6Mpa The pipeline for adding chemicals can be designed according to the water supply and drainage standards. The flow rate inside the pipeline should be greater than 0.9m/s, and the internal pressure inside the pipeline should be less than 1.6Mpa
管道混合器按特定的口径及水量设计，一旦流量减少时，水头损失大幅下降，从而明显影响混合效果The pipeline mixer is designed according to specific caliber and water volume. Once the flow rate decreases, the head loss significantly decreases, which significantly affects the mixing effect
